Description
Product Description

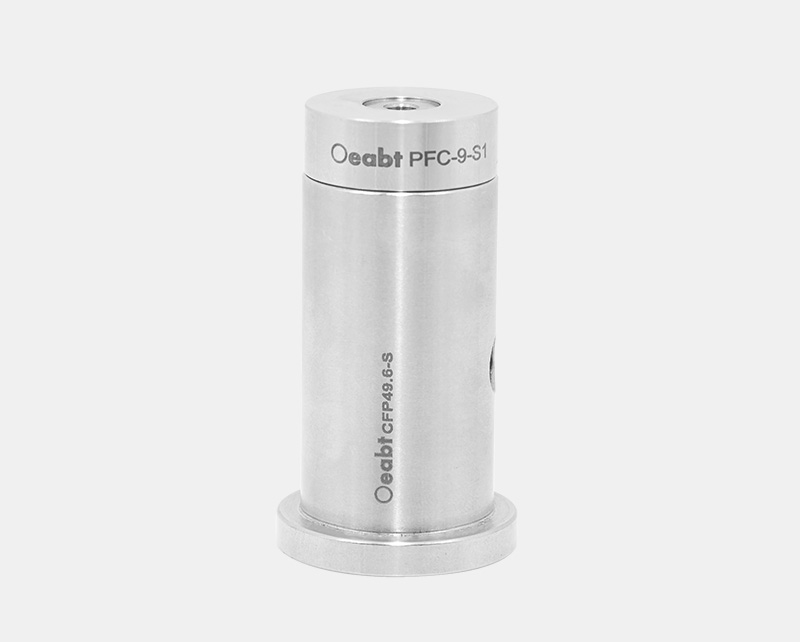

- Spacers for Ø25mm rods, constructed of non-magnetic stainless steel.
- Used for stacking to increase the height of rod columns.
- Optional styles: With M4/M6 threaded holes or Ø4mm, Ø6mm through holes.
- Groove design at the top and bottom enhances installation stability.
The PFC series rod spacers are used to gain additional height for Ø25mm or Ø1-inch series rods without reducing structural rigidity.
| General Parameters | Specifications |
| Diameter | Ø25mm |
| Material | 304 stainless steel |
| PFC-S Series | Height | Center Hole Diameter | Weight |

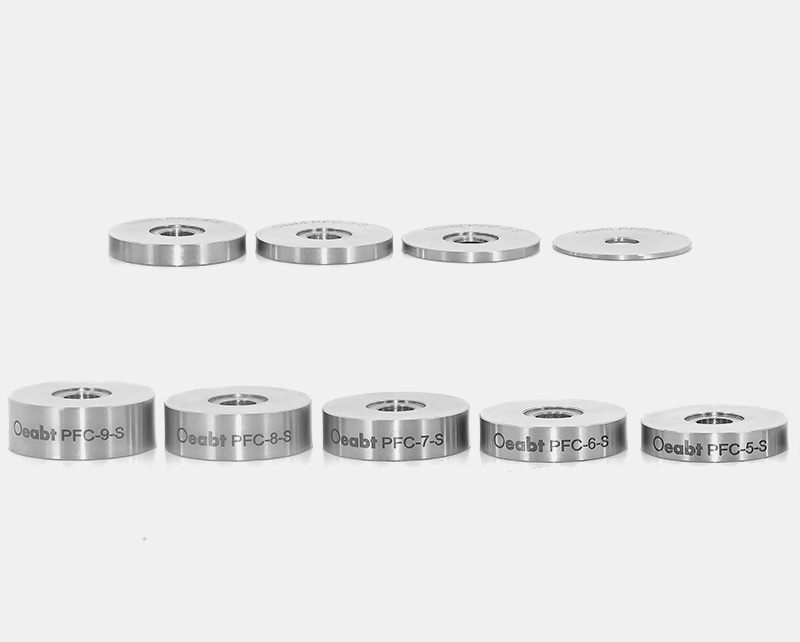

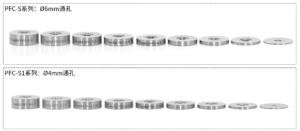

| PFC-1-S | 1mm | ∅6mm through hole | 3.5g |
| PFC-2-S | 2mm | ∅6mm through hole | 6.8g |
| PFC-3-S | 3mm | ∅6mm through hole | 10.6g |
| PFC-4-S | 4mm | ∅6mm through hole | 14.0g |
| PFC-5-S | 5mm | ∅6mm through hole | 17.7g |
| PFC-6-S | 6mm | ∅6mm through hole | 21.1g |
| PFC-7-S | 7mm | ∅6mm through hole | 24.9g |
| PFC-8-S | 8mm | ∅6mm through hole | 28.4g |
| PFC-9-S | 9mm | ∅6mm through hole | 32.1g |
| PFC-S1 Series | Height | Center Hole Diameter | Weight |
| PFC-1-S1 | 1mm | ∅4mm through hole | 3.5g |
| PFC-2-S1 | 2mm | ∅4mm through hole | 7.1g |
| PFC-3-S1 | 3mm | ∅4mm through hole | 10.8g |
| PFC-4-S1 | 4mm | ∅4mm through hole | 14.6g |
| PFC-5-S1 | 5mm | ∅4mm through hole | 18.0g |
| PFC-6-S1 | 6mm | ∅4mm through hole | 21.8g |
| PFC-7-S1 | 7mm | ∅4mm through hole | 25.7g |
| PFC-8-S1 | 8mm | ∅4mm through hole | 29.4g |
| PFC-9-S1 | 9mm | ∅4mm through hole | 33.1g |
| PFC-S2 Series | Height | Thread Type | Weight |
| PFC-12.5-S2 | 12.5mm | One end M4, one end M6 | 40.6g |
| PFC-19-S2 | 19mm | One end M4, one end M6 | 64.3g |
| PFC-25-S2 | 25mm | One end M4, one end M6 | 86.3g |
| PFC-38-S2 | 38mm | One end M4, one end M6 | 136.2g |
| PFC-50-S2 | 50mm | One end M4, one end M6 | 182.3g |
| PCA-S Series | Height | Thread Type | Weight |
| PCA3-S | 30mm | One end M4, one end M6 | 21.5g |
| PCA4-S | 40mm | One end M4, one end M6 | 30.0g |
| PCA5-S | 50mm | One end M4, one end M6 | 39.3g |
| PCA6-S | 60mm | One end M4, one end M6 | 47.3g |
| PCA15-S | 150mm | One end M4, one end M6 | 126.1g |
| PCA30-S | 300mm | M6 at both ends | 254.3g |
| PCA50-S | 500mm | M6 at both ends | 432.4g |
Technical Description
The PFC series rod spacers are used to gain additional height for Ø25mm or Ø1-inch series rods without reducing structural rigidity. They can provide strong support in optical devices. Through the threaded holes or through holes at the center of the spacers, studs can pass through the matching threads of the components from the top or bottom for connection.
Multiple specifications and sizes available.

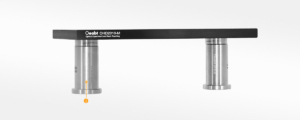

Assembly
Manual assembly and installation

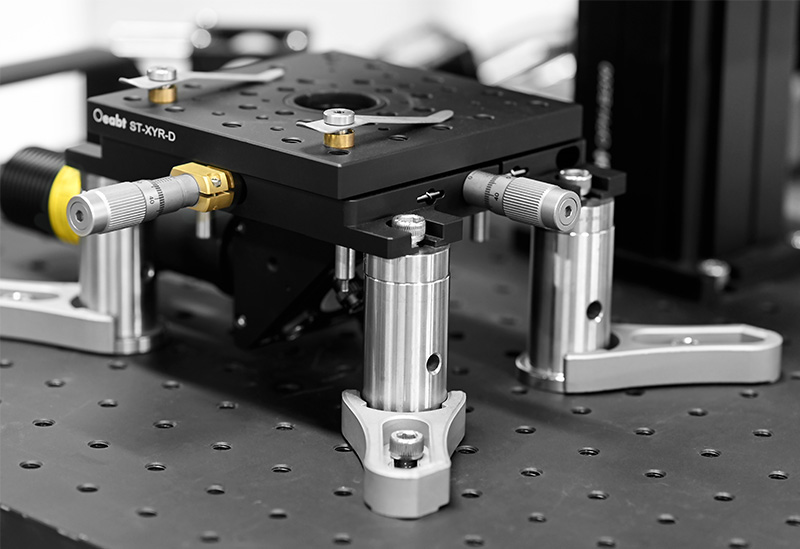

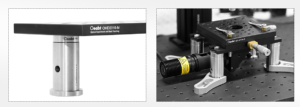

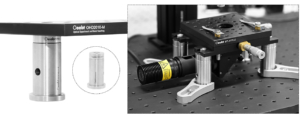

Application Example
Engineering Drawing Download
