Description
Product Description
- Stainless steel rods with a diameter of 1/2 inch (12.7mm).
- Optional thread configurations: One end M4 threaded hole + one end M6 threaded hole; or one end M6 stud + one end M6 threaded hole.
- Optional height range: 1 inch – 4 inches.
- Compatible with CA-A and CA-XC series rod holders.

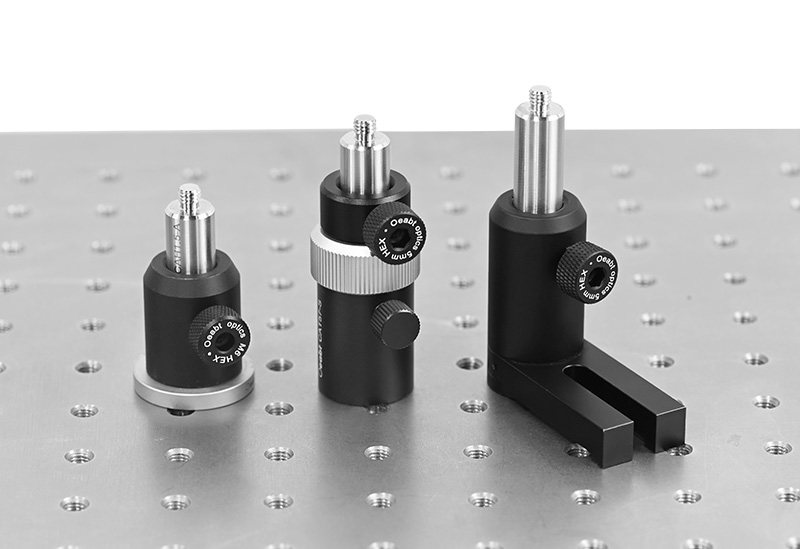

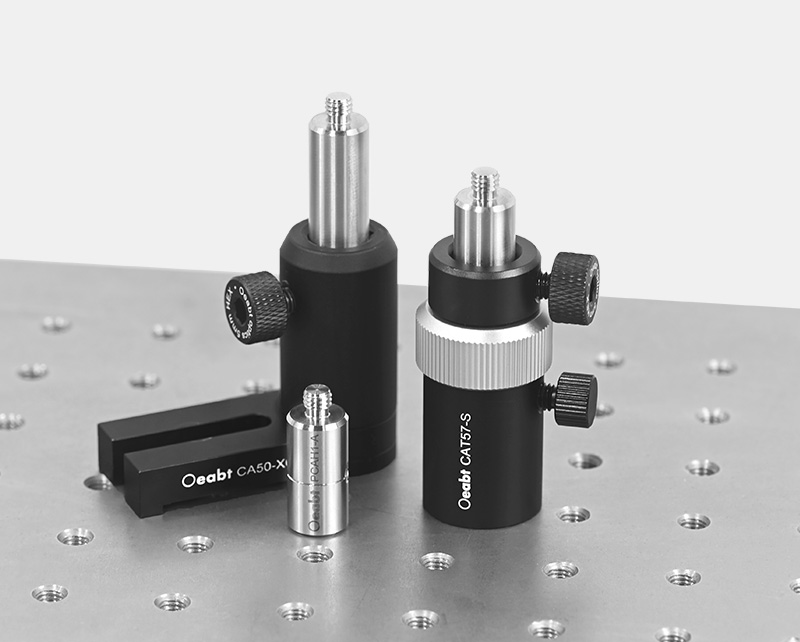

The Ø1/2-inch optical rods are essential components for building many rigid structures. Available in heights from 1 inch to 4 inches, they are compatible with our CA-A series rod holders, CA-XC series magnetic rod holders, and various structural accessories.
| Model | Diameter | Height | Weight | Thread Type | Material |
| PCAH1-A | Ø1/2 inch | 1 inch | 21.4g | One end M6 stud + One end M6 threaded hole | 304 stainless steel |
| PCAH1.5-A | Ø1/2 inch | 1.5 inches | 33.8g | Same as above | 304 stainless steel |
| PCAH2-A | Ø1/2 inch | 2 inches | 46.1g | Same as above | 304 stainless steel |
| PCAH2.5-A | Ø1/2 inch | 2.5 inches | 58.9g | Same as above | 304 stainless steel |
| PCAH3-A | Ø1/2 inch | 3 inches | 71.6g | Same as above | 304 stainless steel |
| PCAH3.5-A | Ø1/2 inch | 3.5 inches | 84.2g | Same as above | 304 stainless steel |
| Model | Diameter | Height | Weight | Thread Type | Material |
| PCAH1-S | Ø1/2 inch | 1 inch | 20.6g | One end M4 threaded hole + One end M6 threaded hole | 304 stainless steel |
| PCAH1.5-S | Ø1/2 inch | 1.5 inches | 31.9g | Same as above | 304 stainless steel |
| PCAH2-S | Ø1/2 inch | 2 inches | 44.2g | Same as above | 304 stainless steel |
| PCAH2.5-S | Ø1/2 inch | 2.5 inches | 56.7g | Same as above | 304 stainless steel |
| PCAH3-S | Ø1/2 inch | 3 inches | 69.2g | Same as above | 304 stainless steel |
| PCAH3.5-S | Ø1/2 inch | 3.5 inches | 82.4g | Same as above | 304 stainless steel |
| PCAH4-S | Ø1/2 inch | 4 inches | 94.8g | Same as above | 304 stainless steel |
Technical Description
The Ø1/2-inch optical rods are essential components for building many rigid structures, and are compatible with our CA-A series rod holders, CA-XC series magnetic rod holders, and various structural accessories.The PCAH-S series rods have one end M4 threaded hole and the other end M6 threaded hole.The PCAH-A series rods have one end M6 stud and the other end M6 threaded hole.

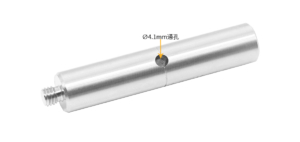

There is one Ø4.1mm through hole on the side of the rod body, through which a hex wrench can pass to provide greater torque when tightening components. A laser-engraved groove in the middle can be used for auxiliary alignment during center height adjustment.

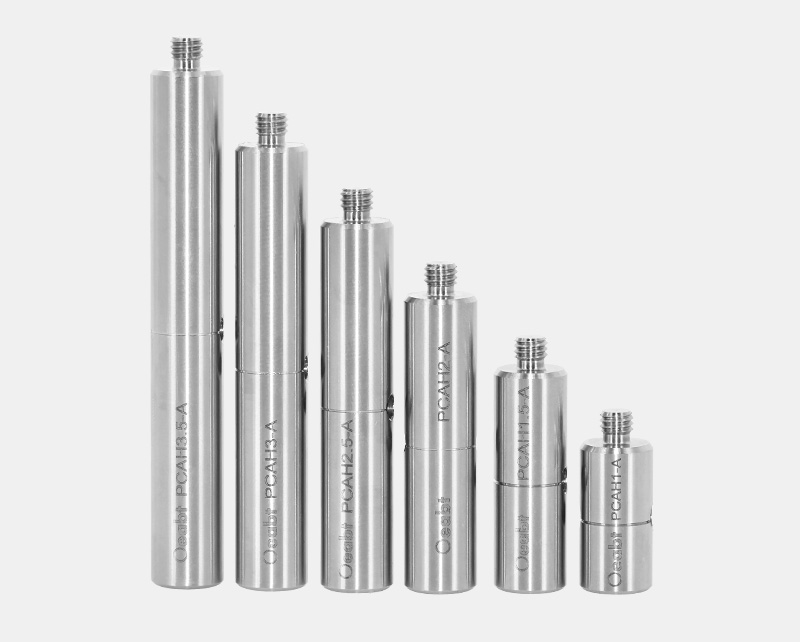

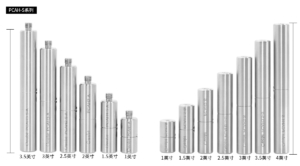

Multiple height options are available.
Assembly

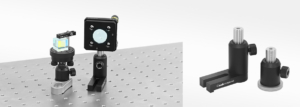

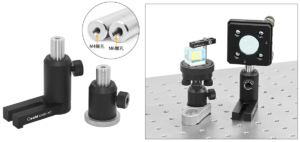

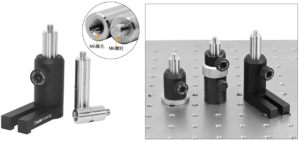

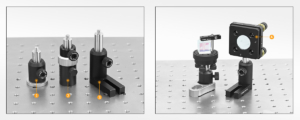

Application Example
