Description
Product Description

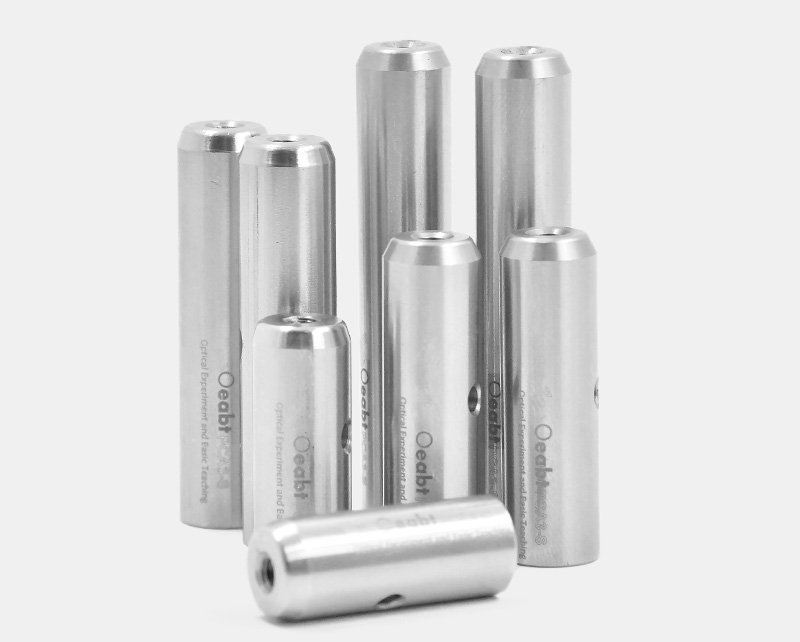

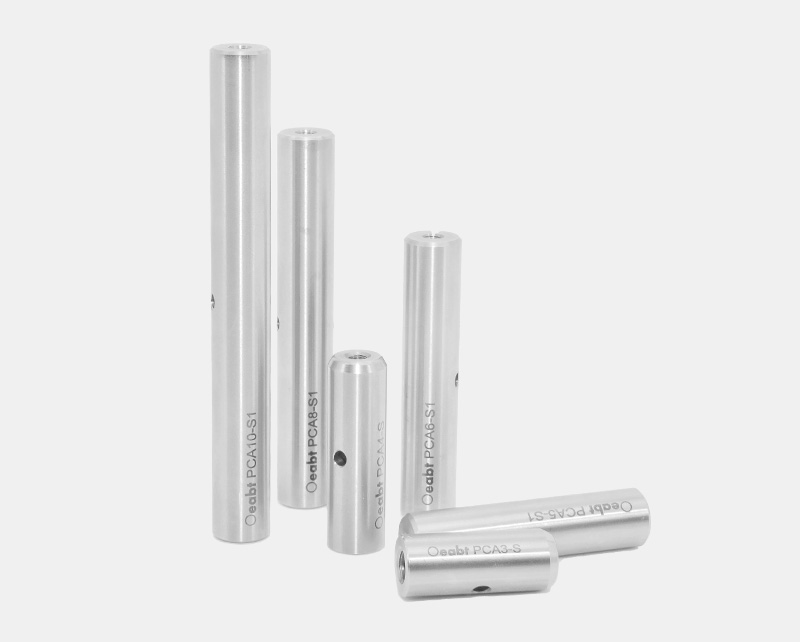

- Precision-ground stainless steel rods with a diameter of 12mm.
- Length range: 30mm to 500mm, offering multiple options.
- Equipped with an M4 threaded hole at one end and an M6 thread at the other.
The Ø12mm stainless steel rods are available in various lengths, playing an irreplaceable role in free-space optical experiment adjustment and manual optical path calibration. With M4/M6 threaded holes at both ends, they can arbitrarily install various optomechanical components.
| General Parameters | Specifications |
| Product Name | Ø12mm Stainless Steel Rods |
| Diameter | Ø12mm |
| Thread Type | M4/M6 |
| Material | 304 stainless steel |
| PCA-S Series | Length | Thread Type | Weight |
| PCA3-S | 30mm | One end M4, one end M6 | 21.5g |
| PCA4-S | 40mm | One end M4, one end M6 | 30.0g |
| PCA5-S | 50mm | One end M4, one end M6 | 39.3g |
| PCA6-S | 60mm | One end M4, one end M6 | 47.3g |
| PCA15-S | 150mm | One end M4, one end M6 | 126.1g |
| PCA30-S | 300mm | M6 at both ends | 254.3g |
| PCA50-S | 500mm | M6 at both ends | 432.4g |
| PCA-S1 Series | Length | Thread Type | Weight |
| PCA3-S1 | 30mm | One end M4, one end M6 | 23.3g |
| PCA4-S1 | 40mm | One end M4, one end M6 | 31.7g |
| PCA5-S1 | 50mm | One end M4, one end M6 | 40.0g |
| PCA6-S1 | 60mm | One end M4, one end M6 | 48.4g |
| PCA8-S1 | 80mm | One end M4, one end M6 | 65.7g |
| PCA10-S1 | 100mm | One end M4, one end M6 | 83.3g |
Technical Description
(1) The Ø12mm stainless steel rods are available in various lengths, playing an irreplaceable role in free-space optical experiment adjustment and manual optical path calibration. With lengths ranging from 30mm to 500mm, these precision-ground stainless steel rods are made of 304 stainless steel and compatible with our rod holders and structural accessories.
The PCA-S series offers lengths from 30mm to 500mm: rods of 30-60mm have obvious chamfers at one end, while longer rods (150-500mm) have smaller chamfers. The PCA-S1 series provides lengths from 30mm to 100mm, with uniform chamfers at both ends.
(2) One end of the rod has an M4 threaded hole (10mm deep), and the other end has an M6 threaded hole (13mm deep). Various optomechanical components can be installed arbitrarily, and different optical axis heights can be easily achieved by combining rods of different specifications. A Ø3mm through hole on the side of the rod allows a ball-head screwdriver or wrench to pass through, providing greater torque and additional leverage during component tightening.

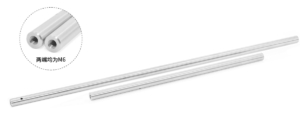

The two long rods (300mm/500mm) – PCA30-S and PCA50-S – are equipped with M6 threaded holes at both ends.

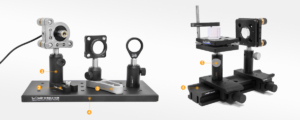

Application Schematic:
Assembly

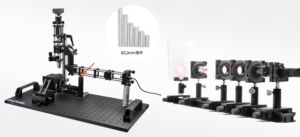

Application Example

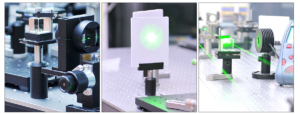

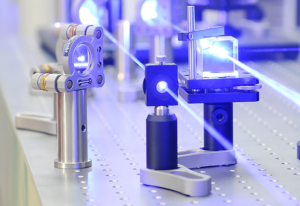

Stainless steel rods are available in various lengths, playing an irreplaceable role in free-space optical experiment adjustment and manual optical path calibration. They can arbitrarily install various optomechanical components.
Engineering Drawing Download
