PCA-A Series Ø12mm Stainless Steel Connecting Rod [M6 Stud on One End, M6 Thread on the Other]

Product Description

  • Precision-ground connecting rod made of stainless steel with a diameter of 12mm;

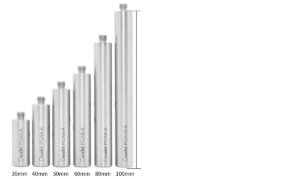

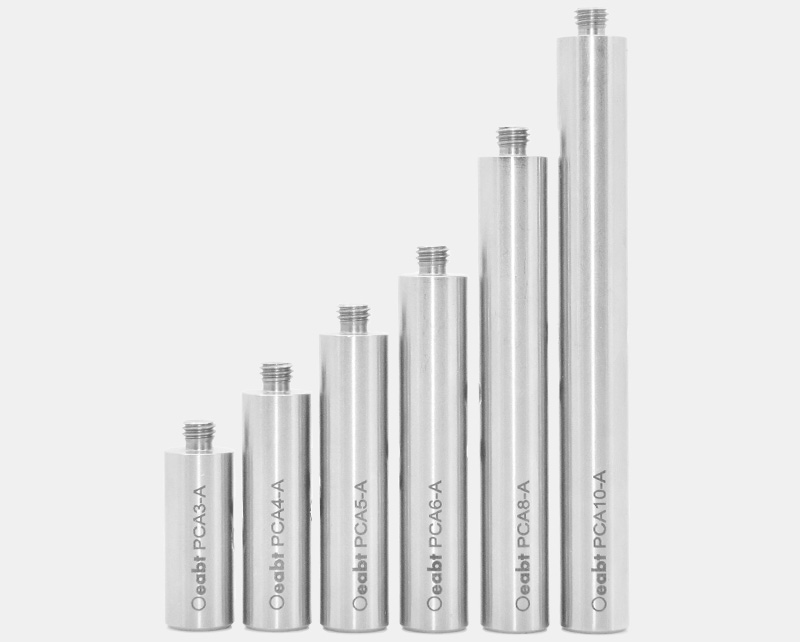

  • Length range from 30mm to 100mm, increasing the optional range of these connecting rods;
  • The top of the connecting rod is equipped with an M6 stud, and the bottom is provided with an M6 threaded hole;
  • A Ø3mm through hole on the side of the connecting rod allows a ball-head screwdriver or wrench to pass through, providing greater torque when tightening components;
The Ø12mm optical connecting rod is a basic component required for constructing many rigid structures, with multiple length specifications available ranging from 30mm to 100mm. The precision-ground stainless steel connecting rod is made of 304 stainless steel and is compatible with our connecting rod brackets and structural accessories.
Technical Description
(1) The Ø12mm optical connecting rod is a basic component required for constructing many rigid structures, with multiple length specifications available ranging from 30mm to 100mm. The precision-ground stainless steel connecting rod is made of 304 stainless steel and is compatible with our connecting rod brackets and structural accessories.

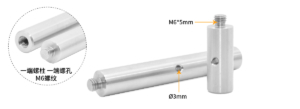

(2) The top of the PCA-A Series connecting rod is equipped with a non-detachable M6 stud with a height of 5mm. The end of the connecting rod is provided with an M6 threaded hole with a depth of 13mm. There is a Ø3mm through hole on the side of the connecting rod, through which a ball-head screwdriver or wrench can pass to provide greater torque when tightening components.
(3) Application Schematic:

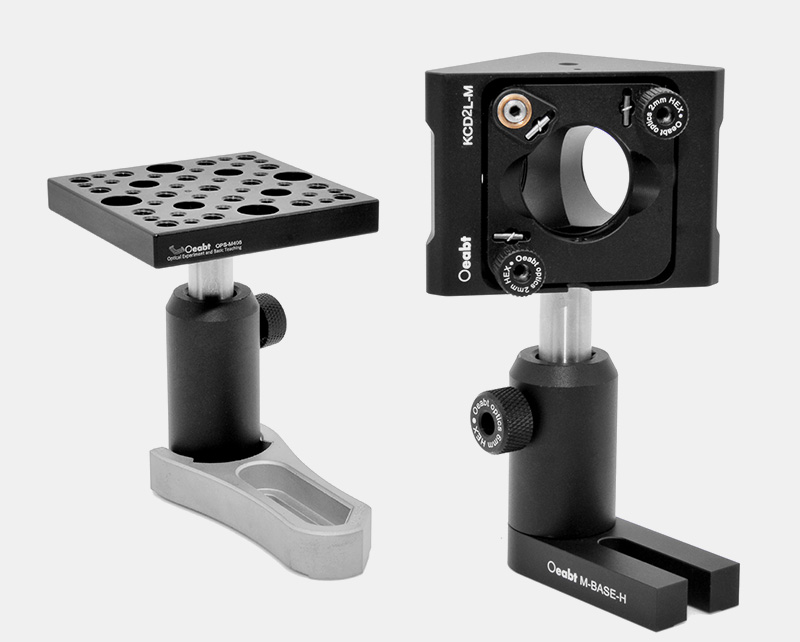

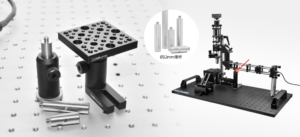

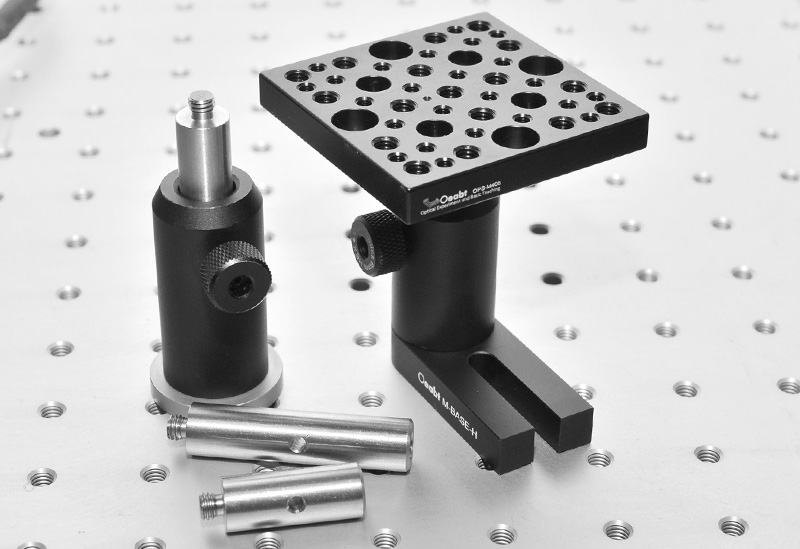

Stainless steel connecting rods are available in different lengths, providing an irreplaceable role in the adjustment of free-space optical experiments and manual optical path calibration, and can be used to install various optical-mechanical components arbitrarily.
Assembly

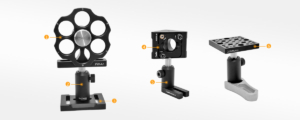

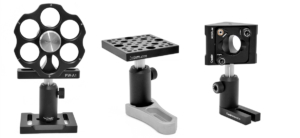

Application Examples

Engineering Drawing

PCA3_4_5_10-A Engineering Drawing
