Description

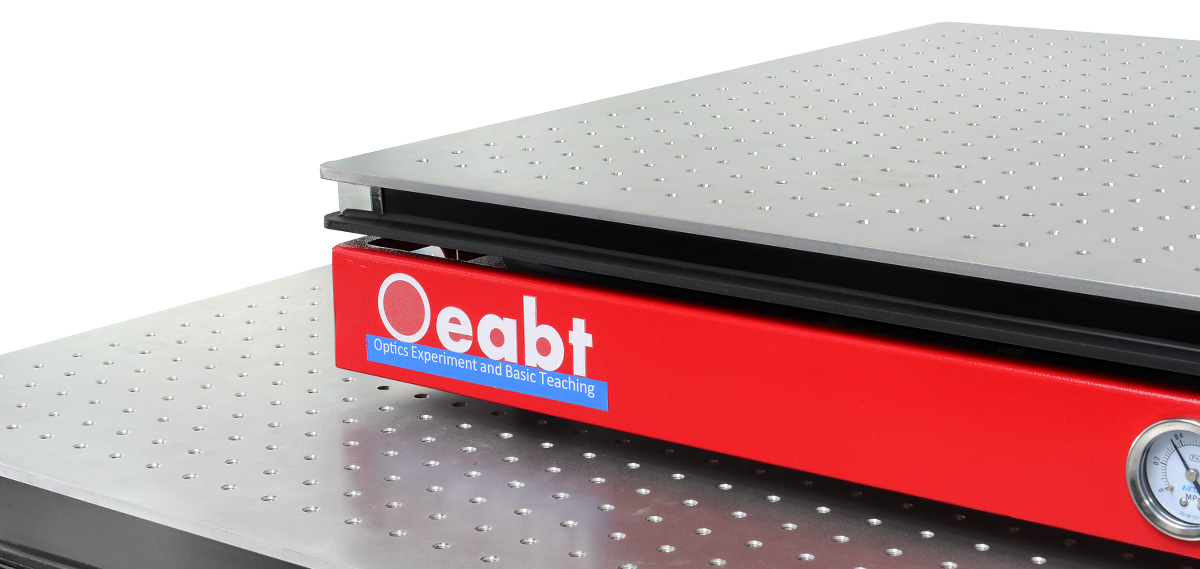

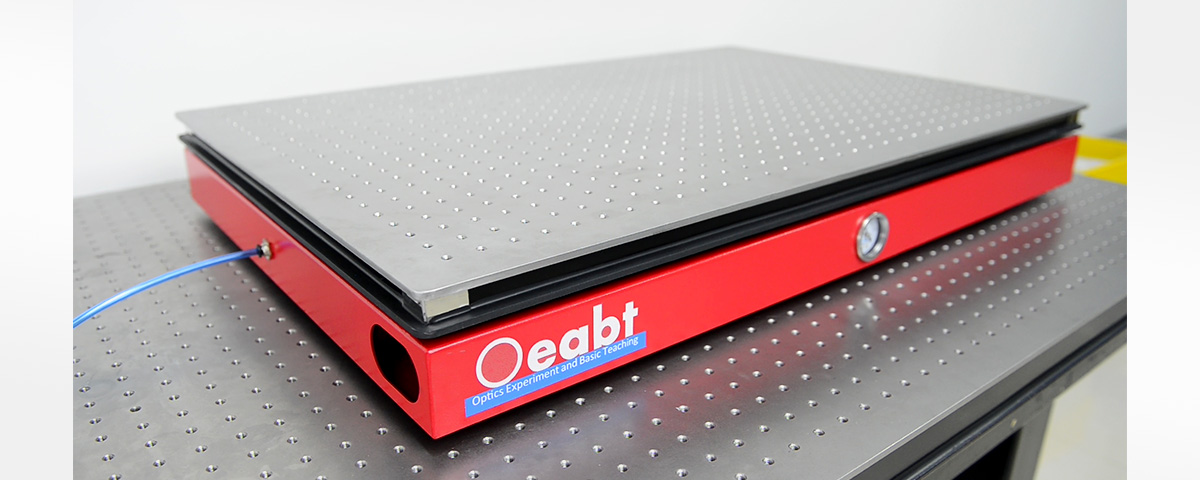

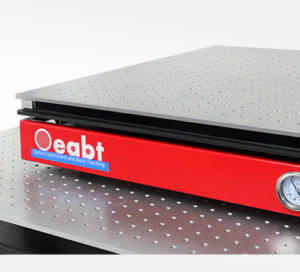

Product Description
- Pneumatic vibration isolation optical platform (air pump not included).
- Automatic inflation & automatic leveling; fast response and quick balancing.

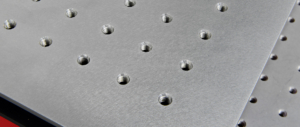

- Tabletop with M6 threaded holes in a 25×25 mm matrix; 37.5 mm margin on four sides.
- Suitable for high-magnification electron microscopes, scanning probe microscopes, laser interferometers, laser confocal microscopes, and similar applications.
The table uses a honeycomb core sandwich structure for outstanding vibration isolation and automatic leveling. It features light weight, high rigidity, and high damping. The top plate is made of high-quality high-permeability stainless steel, precisionground for high flatness, and deburred via rotary polishing to provide a matte, non-reflective finish. The panel features an M6 threaded hole array for easy mounting of optical components.
| Model | OTD-QF-S6090 |
| Outer Dimensions | 900×600×109 mm |
| Application | Widely used in optics, electronics, precision machinery, metallurgy, aerospace, aviation, navigation, precision chemical engineering, nondestructive testing, etc. Mobile and suitable for light-load optical instruments; key vibration isolation equipment for precision testing instruments in machinery industries. |
| Features | Semi-diaphragm air springs deliver excellent vibration isolation; natural frequency typically 1.5–2 Hz; cost-effective research-grade pneumatic vibration isolation optical platform. |
| Auto Balancing | Automatic inflation & automatic leveling; fast response, quick balancing. |
| Natural Frequency | <6–7 Hz (load and application dependent). |
| Repeat Positioning Accuracy | ±0.05 mm |
| Surface Roughness | 0.8 μm |
| Table Structure | Three-layer honeycomb sandwich structure |
| Top Plate | 6 mm high-permeability stainless steel with matte finish (anti-reflection). |
| Internal Support | Steel honeycomb structure, welded for high strength. |
| Bottom Plate | 4–6 mm carbon steel; internal anti-corrosion paint, external black plastic coating. |
| Side Panels | Inner carbon steel + outer black aluminum composite panel; stainless steel corner guards for aesthetics and durability. |
| Flatness | 0.02–0.05 mm / 600×600 mm |
| Hole Pitch / Diameter | M6 threaded holes; 25×25 mm pitch; 37.5 mm margin. |
| Pneumatic Support | Semi-diaphragm air springs with secondary air chambers; ultrasoft diaphragm type air springs for enhanced isolation, rigidity, and stability. |
| Weight | 91.4 kg |
| Load Capacity | 100 kg (at full pressure) |
Technical Specifications
Excellent Vibration IsolationBuilt-in precision air spring isolation system delivers low natural frequency and effective vibration damping in multiple directions (especially vertical), preventing external vibration from affecting instrument accuracy and improving precision and efficiency.
Automatic LevelingWhen load position shifts, the platform quickly adjusts air spring pressure via high-precision valves to maintain level. Three height adjusters enable automatic leveling under changing loads.
Honeycomb Sandwich StructureLightweight, highrigidity, highdamping table body. Top plate: precision-ground high-permeability stainless steel with matte, nonreflective finish and M6 hole array for component mounting.
Notes
- Vibration isolators mustbe designed, installed, adjusted, and operated by professional mechanical and electrical engineers.
- If used with other products, inform our sales team of the application scenario and working conditions; use only after technical review.
- Always perform a trial run before use; install only after confirming proper performance and compatibility.

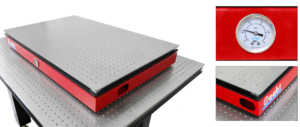

Assembly

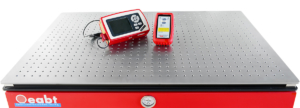

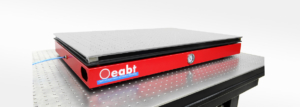

Application Examples
