Product Description
- No returns or refundsunless due to product quality issues.
- High-resolution CMOS sensors, available in color, monochrome, and NIR-enhanced versions.
- Resolution options from 1.3 MP up to 12 MP.
- Supports external trigger and continuous exposure modes; uses global or high-speed rolling shutter.
- SDK and programming interfaces support C++, C#, Visual Basic, .NET, Python, and LabVIEW (DLL library, not VI library).
- SM1 (1.035″-40) thread with adapter for standard C-Mount (1.000″-32).
- 1/4″-20 (imperial) and M4 (metric) mounting holes for post mounting.
- Applications: Visible/NIR imaging; electrophysiology/biological slice imaging; material inspection; multispectral imaging (with dedicated light source); medical/ophthalmic imaging; vascular imaging; laser speckle imaging; semiconductor inspection and general measurement; fluorescence microscopy; brightfield/darkfield electron microscopy.
The OEABT® OsCam Vision® series scientific cameras feature high-resolution CMOS sensors, delivering superior noise suppression and high-sensitivity image capture for electron microscopy, fluorescence detection, and other applications.Click to download Oscam (V1.0.4 Beta) Setup and OsCam Scientific Camera Software User Manual.
Rolling Shutter – Color
| Model | MUS210C-R | MUS640C-R | MUS1200C-R |
| Effective Pixels | 2.1 MP | 6.4 MP | 12.0 MP |
| Sensor Format | 1/2.8″ | 1/1.8″ | 1/1.7″ |
| Pixel Size | 2.9 µm | 2.4 µm | 1.85 µm |
| Max Resolution | 1944 × 1096 | 3072 × 2048 | 4072 × 3046 |
| Frame Rate | 46 fps | 30 fps | 14 fps |
| Min. Exposure Time | 15 µs | 28 µs | 25 µs |
| SNR | 50 dB | 50 dB | 49 dB |
| Dynamic Range | 75 dB | 70 dB | 68 dB |
Rolling Shutter – Monochrome
| Model | MUS210M-R | MUS641M-R | MUS1201M-R |
| Effective Pixels | 2.1 MP | 6.4 MP | 12.0 MP |
| Sensor Format | 1/2.8″ | 1/1.8″ | 1/1.7″ |
| Pixel Size | 2.9 µm | 2.4 µm | 1.85 µm |
| Max Resolution | 1944 × 1096 | 3072 × 2048 | 4072 × 3046 |
| Frame Rate | 46 fps | 30 fps | 14 fps |
| Min. Exposure Time | 15 µs | 28 µs | 25 µs |
| SNR | 50 dB | 50 dB | 49 dB |
| Dynamic Range | 75 dB | 70 dB | 68 dB |
Global Shutter
| Model | MUS231M-G | MUS231C-G | MUS500M-G | MUS500C-G |
| Color | Monochrome | Color | Monochrome | Color |
| Effective Pixels | 2.3 MP | 2.3 MP | 5.0 MP | 5.0 MP |
| Sensor Format | 1/1.2″ | 1/1.2″ | 2/3″ | 2/3″ |
| Pixel Size | 5.86 µm | 5.86 µm | 3.45 µm | 3.45 µm |
| Max Resolution | 1936 × 1216 | 1936 × 1216 | 2464 × 2056 | 2464 × 2056 |
| Frame Rate | 40 fps | 40 fps | 38 fps | 38 fps |
| Min. Exposure Time | 24 µs | 24 µs | 26 µs | 26 µs |
| SNR | 45.2 dB | 45.2 dB | 40 dB | 40 dB |
| Dynamic Range | 72 dB | 72 dB | 70 dB | 70 dB |
Global Shutter – NIR Enhanced
| Model | MUE130M-G-NIR |
| Sensor | NIR-Enhanced CMOS |
| Effective Pixels | 1.3 MP |
| Sensor Format | 1/1.8″ |
| Pixel Size | 5.3 µm |
| Max Resolution | 1280 × 1024 |
| Frame Rate | 60 fps |
| Min. Exposure Time | 16 µs |
| Color | Monochrome |
Global Shutter – High-Speed & High-Sensitivity
| Model | MUS40M-G |
| Sensor | High-Speed High-Sensitivity CMOS |
| Effective Pixels | 0.4 MP |
| Sensor Format | 1/2.9″ |
| Pixel Size | 6.3 µm |
| Max Resolution | 720 × 540 |
| Frame Rate | 328 fps |
| Color | Monochrome |
| Shutter Type | Global Exposure |
| Readout Mode | Progressive |

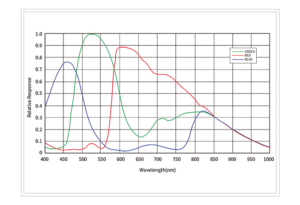

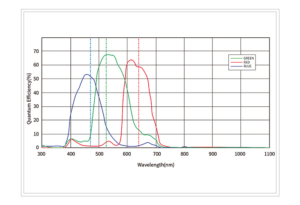

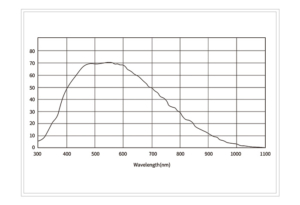

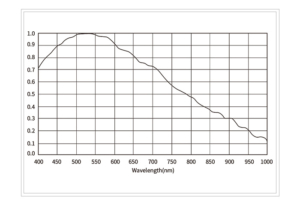

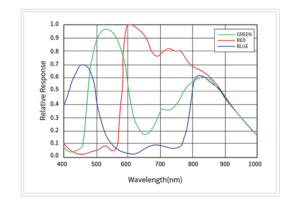

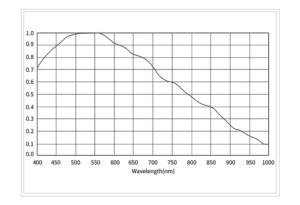

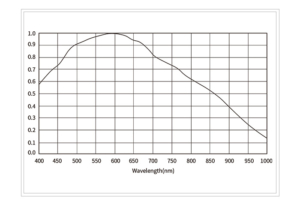

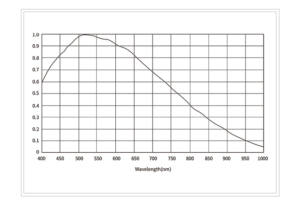

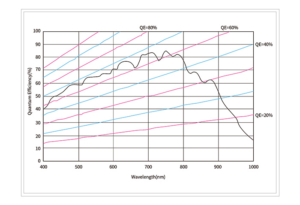

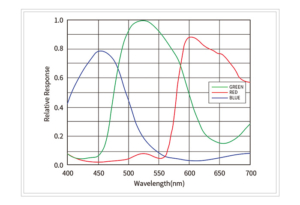

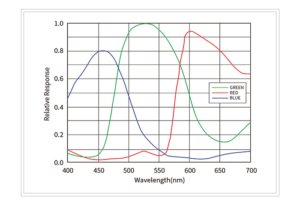

Curves
Technical Notes
The OsCam Vision® series scientific cameras offer color, monochrome, and NIR-enhanced CMOS sensors with resolutions ranging from 1.3 MP to 12 MP. They support external trigger and continuous exposure modes with global or high-speed rolling shutters, producing sharp, detailed images with high color fidelity. A fan-less cooling system eliminates vibration-induced blur. Passive cooling via heat sinks controls temperature rise, suppressing dark current and image noise.

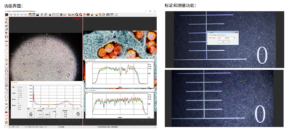

OsCam Vision® software supports Windows 7 through Windows 11, providing comprehensive research functions including image capture & annotation, pixel analysis, calibration, and measurement. Click to download Oscam (V1.0.4 Beta) Setup installer and OsCam Scientific Camera Software User Manual.

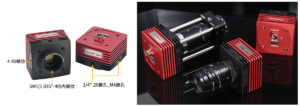

The camera uses an SM1 threaded interface (1.035″-40) compatible with Oeabt optomechanical components and can be connected to lenses via a C-mount adapter. The front features four 4-40 threaded holes compatible with 30 mm and 60 mm cage optical systems. Each side of the camera housing has two 1/4″-20 holes and two M4 holes for mounting stainless steel posts. These flexible mounting options make it ideal for custom imaging systems and integration with commercial microscopes.

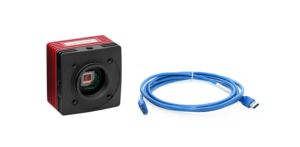

A high-speed USB 3.1 Gen 1 interface provides stable data transmission at 3.2 Gbps, several times faster than Gigabit Ethernet (1 Gbps). A 3-meter dedicated fixed USB 3.0 cable is included.

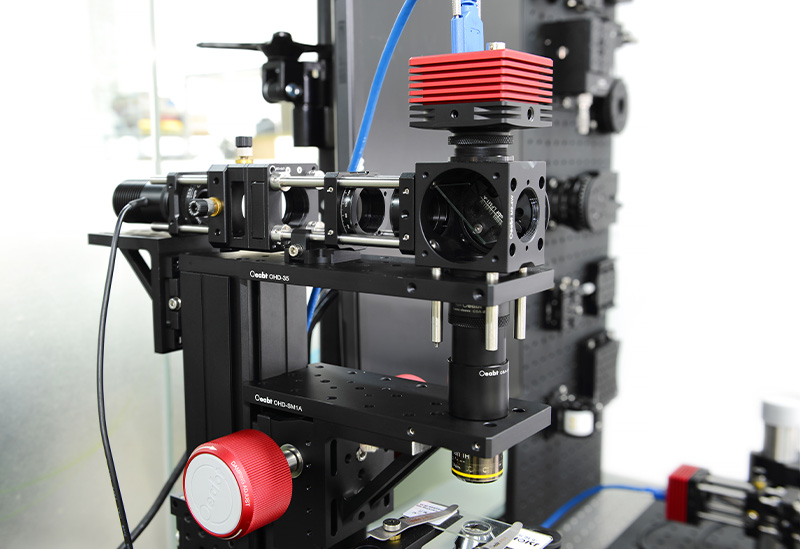

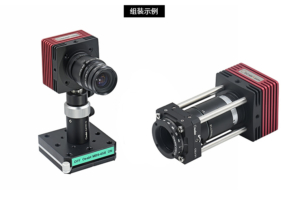

Assembly

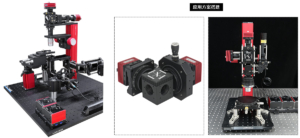

Application Examples
Engineering Drawings
