Description
Product Description
- Detector pixels: 2048-pixel CMOS detector
- OPS300S: High-resolution fiber optic spectrometer featuring an M-type symmetric C-T optical path design and a high-pixel CMOS detector
- OPS500C: Thermoelectrically cooled high-sensitivity fiber optic spectrometer integrated with a TEC cooling circuit and a linear array CMOS detector, with a minimum cooling temperature of -5℃
- Suitable for various high-resolution applications such as Raman spectroscopy detection, micro spectrophotometry, and reflectance & transmittance measurement
Oeabt® offers two high-performance fiber optic spectrometers, respectively designed for high-resolution applications and high-sensitivity detection requirements.
表格
| Model | OPS300S | OPS500C |
| Specifications | 1249038mm | 20812047mm |
| Spectrometer Type | High-resolution | Cooled high-sensitivity |
| Detector Type | UV-enhanced linear array CMOS | Linear array CMOS |
| Cooling Method | None | TEC cooling (-5℃) |
| Effective Pixels | 2048 | 2048 |
| Pixel Size | 12*200μm | 12*200μm |
| Sensitivity | 1300V/(lx·s) | 1300V/(lx·s); 6.5μV/e⁻ |
| Dark Noise | 13 RMS @13℃ | 0.4V/RMS; (6e⁻) |
| Wavelength Range | 200-1100nm (max 750nm) | 190-1100nm (max 900nm) |
| Optical Resolution | 0.05-2nm (depending on slit and spectral range) | 0.1-3nm (depending on slit and spectral range) |
| SNR | ＞600:1 | ＞600:1 |
| Dynamic Range | 3000:1 | ＞5000:1 |
| Optical Design | M-type symmetric C-T optical path | F/4 cross asymmetric C-T optical path |
| Entrance Slit Width | 50μm | 50μm |
| Incident Light Interface | SMA905 fiber optic interface | SMA905 fiber optic interface, free space |
| Integration Time | 1ms-65s | 10ms-65s |
| Frame Rate | 300fps | 100fps |
| Data Output Interface | Type-C or UART | Type-C or UART |
| Expansion Interface | 30-pin programmable interface | 20-pin programmable interface |
| ADC Bit Depth | 16 bit | 18 bit (16 bit output) |
| Power Supply | USB powered, DC 5V±5% | DC 5V direct current power supply |
| Operating Current | 170mA @Typ. | ＜2.3A |
| Operating Temperature | -10℃~+50℃ | -10℃~+50℃ |
| Operating Humidity | 90%RH (non-condensing) | 90%RH (non-condensing) |
| Weight | 500g | 1.5kg |
Technical Description
(1) Oeabt® provides two high-performance fiber optic spectrometers, tailored for high-resolution applications and high-sensitivity detection needs respectively. The OPS300S adopts an M-type symmetric C-T optical path design and a 2048-pixel CMOS detector, with a maximum resolution of 0.05nm. The OPS500C is integrated with a TEC cooling circuit and a linear array CMOS detector, boasting a minimum cooling temperature of -5℃.
(2) The Oeabt® spectrometer series delivers professional spectral analysis solutions for scientific research and industrial fields with its outstanding performance and reliable quality.

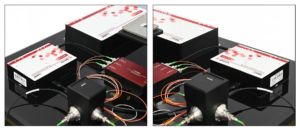

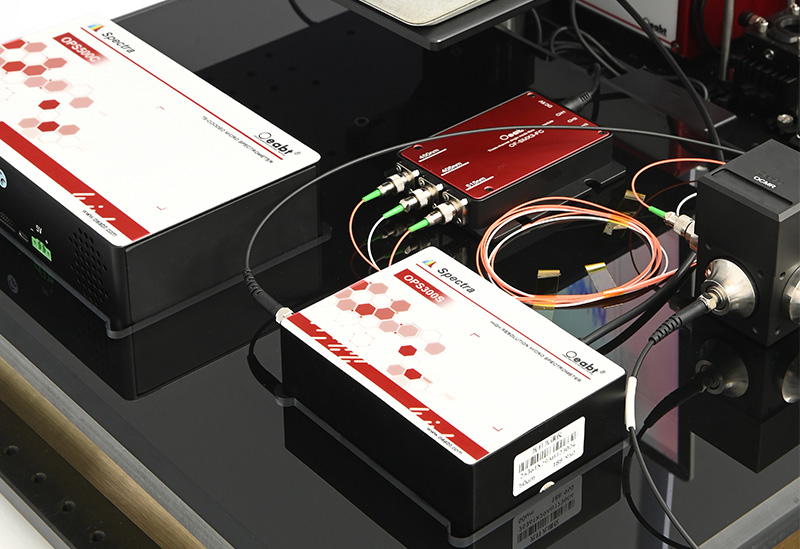

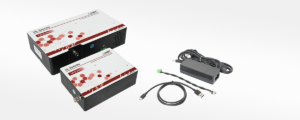

Assembly

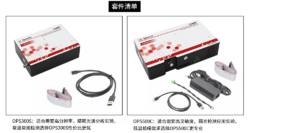

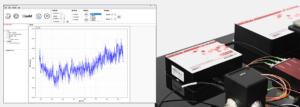

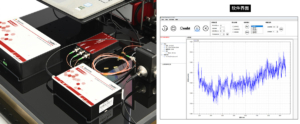

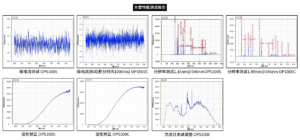

Application Examples
Engineering Drawings
