Description

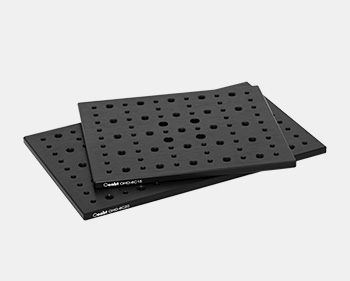

Product Description
- Designed as a mounting plate for heavyduty microscope stands
- Panel size: 260350 mm; threaded hole array pitch: 2525 mm
- Four countersunk holes on the bottom surface allow reverse upward mounting of components
- Solid construction; available in aluminum alloy or stainless steel
The OMC series breadboards are specially designed for microscope system stand setups. These solid aluminum/stainless steel breadboards provide a convenient and costeffective platform for prototyping optical setups, conducting experiments, and mounting small subsystems.
| Model | OMC-A | OMC-S |
| Dimensions | 260.0*350.0*14 mm | 260.0*350.0*14 mm |
| Thread Type | 99 M6 threaded holes, 4 Ø4.5 mm countersunk holes | 99 M6 threaded holes, 4 Ø4.5 mm countersunk holes |
| Weight | 3.25 kg | 9.40 kg |
| Material | 7075 Aluminum Alloy | 304 Stainless Steel |
Technical Specifications
The OMC series breadboards are specially designed for microscope system stand setups. These solid aluminum/stainless steel breadboards provide a convenient and costeffective platform for prototyping optical setups, conducting experiments, and mounting small subsystems.

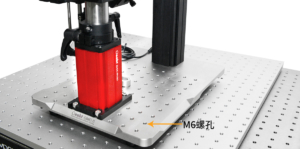

The front end of the top plate integrates a threaded hole array for direct mounting of heavyduty stands, including 4 Ø4.5 mm countersunk holes and 5 M6 threaded holes. In addition, the front end features M6 threaded holes with a 25 mm pitch compatible with most optomechanical components.

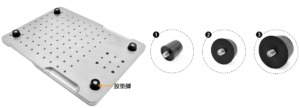

The bottom plate is equipped with 4 additional M6 threaded holes for mounting rubber feet to elevate the base. Four rubber feet are included (style shipped randomly).

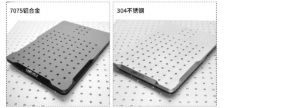

Available in different materials:
- 7075 Aluminum Alloy
- 304 Stainless Steel
Assembly

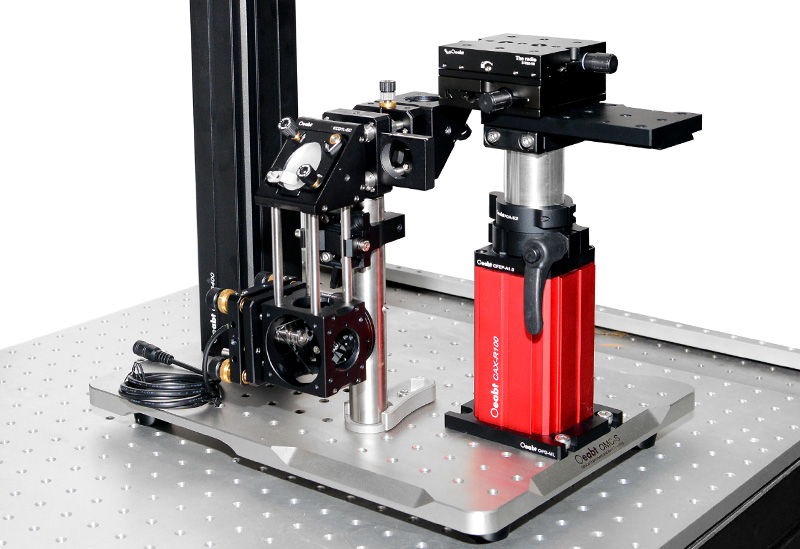

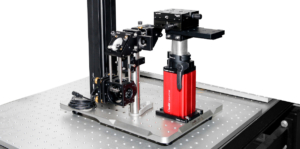

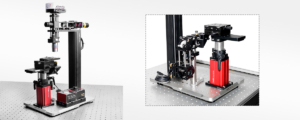

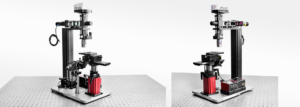

Application Examples
