Description

Product Description

  • Output wavelength: 400 nm – 850 nm; different wavelengths and power can be customized.
  • Intelligent feedback control circuit and high-transmittance optical system.
  • Low power consumption, high efficiency, stable power output, good consistency, long service life.
  • Works with PWM dimming controller, supporting intensity adjustment for 3 laser channels in PWM mode.
  • Single joystick knob for menu operation; wide frequency range and high precision.

Fiber-coupled lasers feature a compact size, light weight, high detection resolution, high sensitivity, wide temperature range, good confidentiality, strong anti-electromagnetic interference and corrosion resistance. They are widely used in optical data storage, optical signal communication, sensing technology, spectroscopy and medical applications.

Model Specifications



ModelOutput Wavelength (nm)Output Power (mW)
OF-20B-405-(5-10)-G4055 / 10 mW
OF-20B-447-(5-10)-G4475 / 10 mW
OF-20B-450-(5-10)-G4505 / 10 mW
OF-20B-488-(5-10)-G4885 / 10 mW
OF-20B-505-(5-10)-G5055 / 10 mW
OF-20B-510-(5-10)-G5105 / 10 mW
OF-20B-515-(5-10)-G5155 / 10 mW
OF-20B-520-(5-10)-G5205 / 10 mW
OF-20B-635-(5-10)-G6355 / 10 mW
OF-20B-648-(5-10)-G6485 / 10 mW
OF-20B-660-(5-10)-G6605 / 10 mW
OF-20B-785-(5-10)-G7855 / 10 mW
OF-20B-808-(5-10)-G8085 / 10 mW
OF-20B-830-(5-10)-G8305 / 10 mW
OF-20B-850-(5-10)-G8505 / 10 mW

Module Parameters



ItemSpecification
Housing SizeØ20 mm × 59 mm
Housing MaterialEco-friendly aluminum
Fiber TypePlastic
Fiber Length1 m
ConnectorSMA connector
Multi-Mode Coupling Efficiency＞90%
Beam PatternSpeckle
Operating VoltageDC 12 V
Control ModePWM control panel
Adjustable Frequency1 Hz – 5 kHz
Operating Temperature-10 ℃ ~ +60 ℃
Weight56.6 g

Notes

  1. Test conditions: SMA jumper with Ø1 mm plastic fiber core, length 1 m; measured by optical power integrating sphere.
  2. Optical power tested with bare diode close to integrating sphere; final output power depends on focusing design.

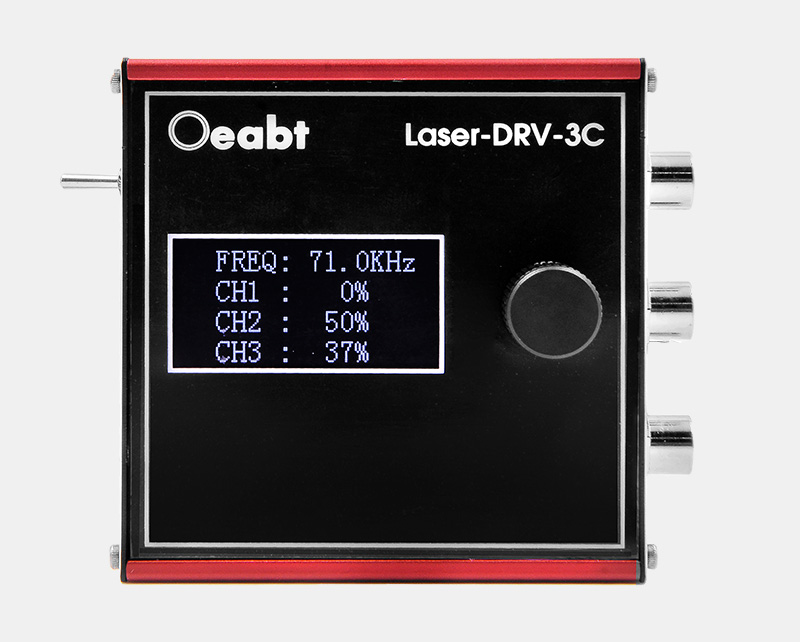

PWM Dimming Controller for Laser Source



ItemSpecification
Input VoltageDC 12 V
Output VoltageDC 12 V
Channels3 channels (simultaneous operation)
Frequency Range1 – 5 kHz
Frequency Accuracy±2 Hz
PWM Signal Load5 – 30 mA
Duty Cycle Range0 – 100%
Duty Step1%
Parameter StorageAuto-save (retained after power off)
Output AmplitudePWM amplitude equals input voltage
Operating Temperature-20 ℃ ~ +70 ℃
Dimensions76 × 74 × 47 mm (excl. knob)
Weight174.8 g

Technical Description

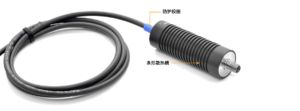

The laser uses high-quality imported laser diodes, paired with high-performance PWM driver circuits and optical coated glass lenses. Striped cooling slots improve heat dissipation, reducing temperature by 10%–15% for fast diode cooling. Features high reliability, stability, anti-interference, good consistency and long service life.

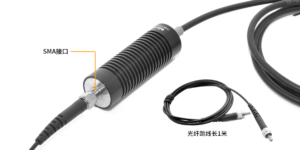

The laser uses an SMA connector. Flexible fiber jumpers allow free movement of the laser output end for convenient use.

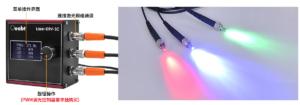

The laser module works with a PWM controller (sold separately). The panel supports up to 3 modules. The controller powers on automatically. Press the knob to select channels; turn left/right to adjust brightness.

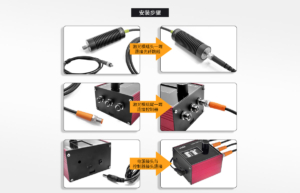

Assembly

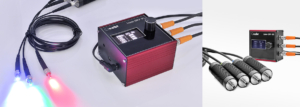

Application Examples

Engineering Drawings

OP-20B Engineering Drawing LASER-DRV-3C_PWM Engineering Drawing
