Description
Product Description

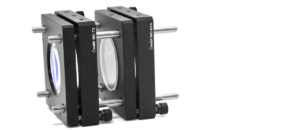

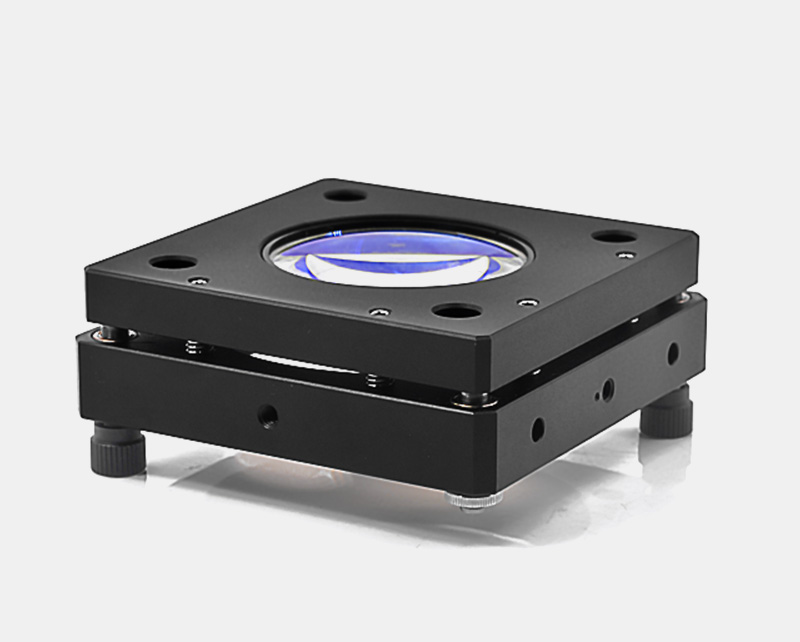

- Compatible with Ø2inch (Ø50.8mm) optical components on the optical axis; works with 60mm cage systems
- Provides ±3°tilt and pitch adjustment range
- Through holes for mounting Ø6mm cage rods
- M4 threaded holes on three sides for post mounting

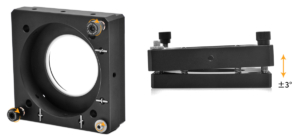

The mount enables ±3° of pitch and tilt adjustment for optical components. Adjustment is driven by three 100 TPI (Threads Per Inch) screws for smooth, highresolution motion. These adjusters feature locking collars and removable knobs.
| Item | Cage Adjustable Mirror Mount | Cage Adjustable Mirror Mount |
| Model | MCT2 | MCS2A |
| Dimensions | 88.988.945.2mm | 88.988.945.2mm |

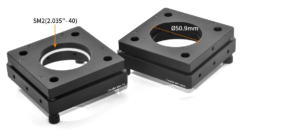

| Bore | SM2 (2.035”40) | Ø50.9mm |
| Adjustment Range | ±3° pitch & tilt | ±3° pitch & tilt |
| Throughhole Spacing | Ø6.02mm, 60×60mm | Ø6.02mm, 60×60mm |
| Weight | 295.9g | 295.5g |
| Material | 7075 Aluminum Alloy | 7075 Aluminum Alloy |
Technical Description
(1) The mount provides ±3° of pitch and tilt adjustment for optical components. Three 100 TPI adjustment screws deliver smooth, highresolution positioning. All adjusters include locking collars and removable knobs.
(2) MCT2 has SM2 (2.035”40) threads and uses one SM2 retaining ring plus one Ø2inch spacer to secure optics. By contrast, MCS2A holds optics with nylontipped setscrews, tightened with a 2mm hex wrench or ballhead screwdriver.
(3) Both mounts accept Ø2inch (Ø50.8mm) optics. MCT2 accommodates thin optics (thickness ≤6.5mm). MCS2A is designed for thicker optics (minimum thickness 5mm).

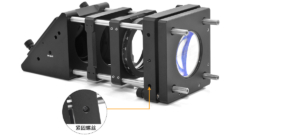

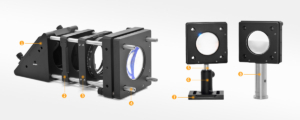

(4) The mount has four Ø6mm through holes compatible with PCMS cage rods. Four side locking screws secure the rods, tightened with a 1.5mm hex wrench or ballhead screwdriver.

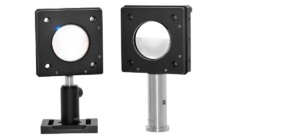

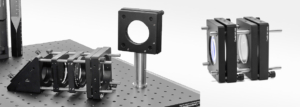

(5) Three sides each have M4 threaded holes for post mounting in freespace setups.
