Description
Product Description
- Mechanically manually driven with bidirectional steel wire drive and ball bearings
- High-precision ball bearing drive for extremely smooth movement without jamming
- XY-axis movement range: 78mm (X-axis) * 54mm (Y-axis)
- Stage with a graduated scale of 1mm division and a vernier scale of 100μm
- S/N0009 series with built-in detachable sample holder, compatible with standard glass slides (thickness approx. 0.8-1.2mm)
- S/N0010 series with detachable stage plate, stage size: 240*170mm
- Right-hand and left-hand operation options available
The stage adopts ball bearing drive, with a vernier scale of 100μm precision on the edge of each axis for easy sample positioning.
| Manual Microscopy Stage | |
| Platform Size | 135*85mm |
| Movement Range | X-axis: 78mm, Y-axis: 54mm; Total Travel: 78*54mm |
| Scale Division | 1mm division |
| Vernier Scale | 100μm |
| Maximum Load | 2kg |
| Control Method | Left/right-hand operation, coaxial knobs for X/Y axes (stacked up and down) |
| Dovetail Type | Female dovetail groove: Ø108mm, α=60° |
| Material | 7075 Aluminum Alloy |
| Weight | 1419.5g |
| Serial Number | Built-in Accessory | Control Method |
| S/N0009-1 | Sample Holder | Right-hand operation |
| S/N0009-2 | — | Left-hand operation |
| S/N0010-1 | Large-size Stage Plate | Right-hand operation |
| S/N0010-2 | — | Left-hand operation |
| Manual Microscopy Base Platform | Guide Rail Height | Stage Configuration |
| MCMP-S-350V | 350mm | Suitable for standard glass slide observation, with glass slide holder included |
| MCMP-S-400V | 400mm | — |
| MCMP-S-500V | 500mm | — |
| MCMP-S-600V | 600mm | — |
| MCMP-T-350V | 350mm | Large-size stage, compatible with larger samples such as petri dishes and multi-well plates |
| MCMP-T-400V | 400mm | — |
| MCMP-T-500V | 500mm | — |
| MCMP-T-600V | 600mm | — |
| Focusing Unit | Model | Specifications | |
| MCT-LMP2 | Lifting Travel | 40mm, Resolution 2μm | |
| Focusing Mode | Coarse and fine focusing | ||
| Maximum Load | 10kg | ||
| OPH95-LM1 | Lifting Travel | 23mm | |
| Focusing Mode | Coarse focusing | ||
| Maximum Load | 2kg | ||
| Stage | Movement Range | X-axis: 78mm, Y-axis: 54mm | |
| Scale Division | 1mm division, 100μm vernier scale | ||
| Maximum Load | 2kg | ||
| Control Method | Left/right-hand operation, coaxial knobs for X/Y axes (stacked up and down) | ||
| S/N0009 | Accessory – Sample Holder | ||
| S/N0010 | Accessory – Large-size Stage Plate | ||
| Guide Rail Arm Axis | Dimension | 196.5mm | |
| Objective Mount | Specification | RMS (0.8”-36) | |

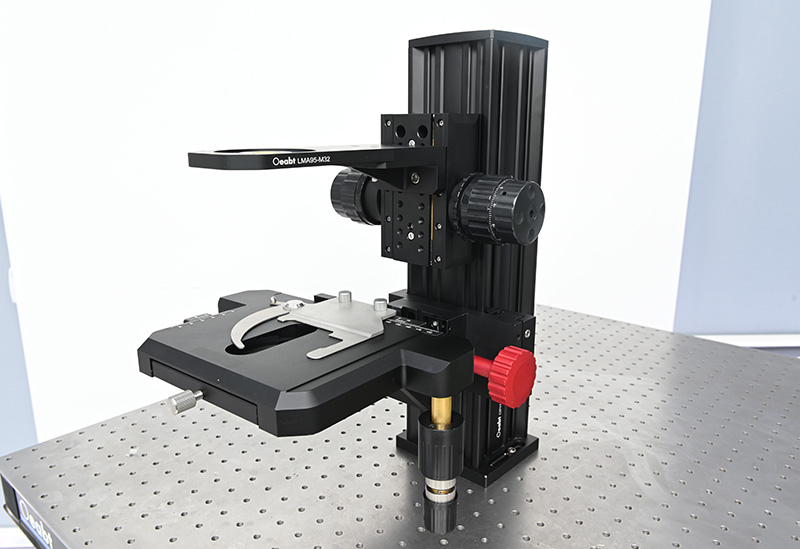

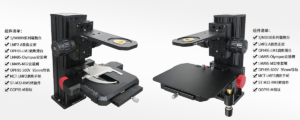

| Component List | S/N0009 or S/N0010 Stage, OPH95-V Series 95mm Guide Rail, MCT-LMP2 Focusing Handwheel, LMP2-A Right-Angle Bracket, LMA95-M32 Mounting Arm, ST-M32-RMS Adapter, OPH95-LM1 Focusing Slide, LMA95-Olympus Mounting Arm, OOP95-M Slider |
| Accessory – Sample Holder | |
| Serial Number | S/N0011 |
| Specifications | 128.8128.01.2mm |
| Clamping Size | 76*26mm, Thickness 0.8-1.2mm |
| Material | 304 Stainless Steel |
| Weight | 136.4g |
| Large-size Stage Plate | |
| Serial Number | S/N0012 |
| Specifications | 240.0170.02.0mm |
| Stage Size | 240.0*170.0mm |
| Material | 7075 Aluminum Alloy |
| Weight | 213.1g |
Technical Description

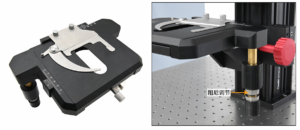

(1) The stage adopts ball bearing drive, enabling 78mm movement on the X-axis and 54mm movement on the Y-axis. A vernier scale with 100μm precision is provided on the edge of each axis for convenient sample positioning. The black knobs under the translation stage can independently adjust the displacement of the X and Y axes, and the stainless steel knobs adjust the damping tightness. Important Note: The damping adjustment knobs cannot be used as locking devices! Do not attempt to tighten the damping to fix the stage position, as this will damage the transmission mechanism!

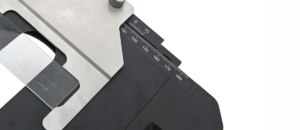

(2) Scale Reading: Total travel of 78mm (X-axis) * 54mm (Y-axis), with a 1mm scale division and a 100μm vernier scale.

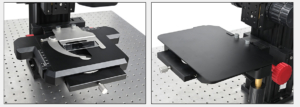

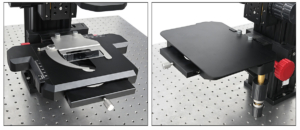

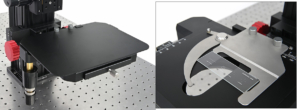

(3) S/N0009 is suitable for standard glass slide observation and comes with a glass slide holder; S/N0010 is equipped with a large-size stage, compatible with larger samples such as petri dishes and multi-well plates.
Assembly
Application Examples
Engineering Drawing Download
