Description
Product Description
- Compatible with low-drift series optical adjustment racks that can be installed at a 45° angle; Suitable for high vacuum environments of 10-6 Torr at 25°C; Features M4 threaded holes on the inclined surface and M6 threaded holes at the base for alignment positioning, facilitating precise installation in systems; Made of heat-treated 304 stainless steel material.

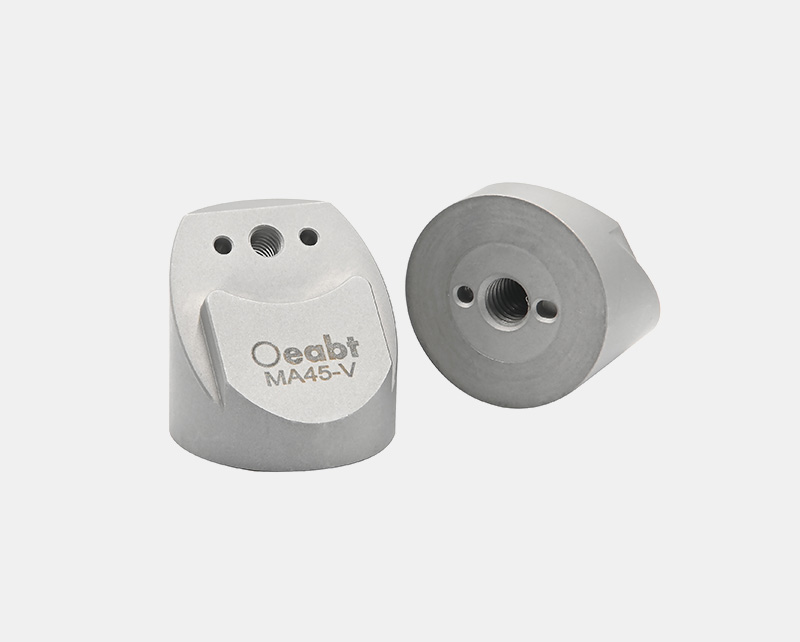

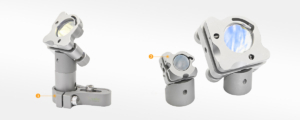

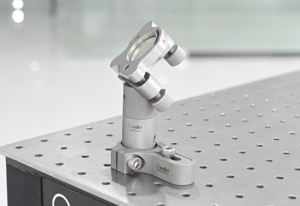

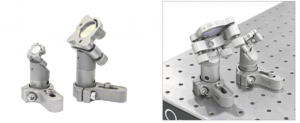

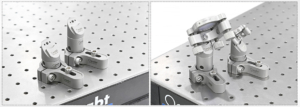

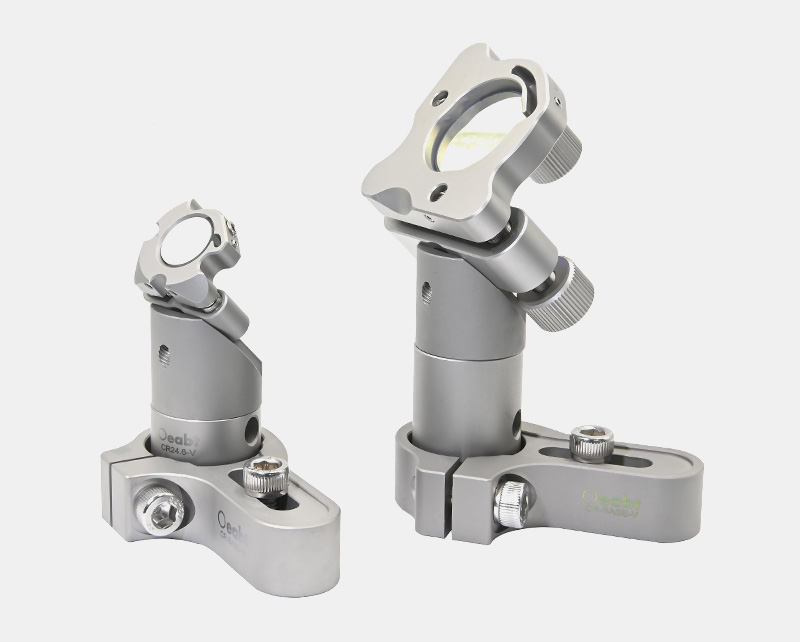

The MA45-V can be equipped with an optical adjustment frame installed at a 45° angle relative to the optical platform, breadboard, or workbench.
| model | MA45-V |
| specifications | Ø25*23.0mm |
| Installation angle | 45° installation |
| Type of threaded hole | At M4*1 and M6*1 |
| weight | 56.4g |
| material quality | Heat Treatment of 304 Stainless Steel |
technical description
(1) The MA45-V can be equipped with an optical adjustment frame installed at a 45° angle relative to the optical platform, breadboard, or workbench. The adapter is fabricated from heat-treated 303 stainless steel, which exhibits a relatively low coefficient of thermal expansion (CTE). Heat treatment eliminates internal stresses in the material, preventing thermal hysteresis effects. Therefore, we recommend using low-drift components from the same series during installation.

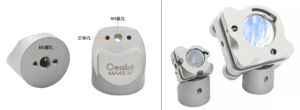

(2) An M4 threaded hole is provided on the 45° installation inclined surface for securing the optical adjustment frame. The M6 threaded hole at the bottom allows fixation of the adapter to the connecting rod. Two Ø2mm alignment positioning pin holes are uniformly opened adjacent to each threaded hole to ensure precise installation of both the adjustment frame and the connecting rod.
