Description
Product Description
- M6*0.5 precision regulator
- Precision fine-tolerance thread for higher sensitivity and adjustment accuracy
- Threaded bushing and lock nut for thread integration

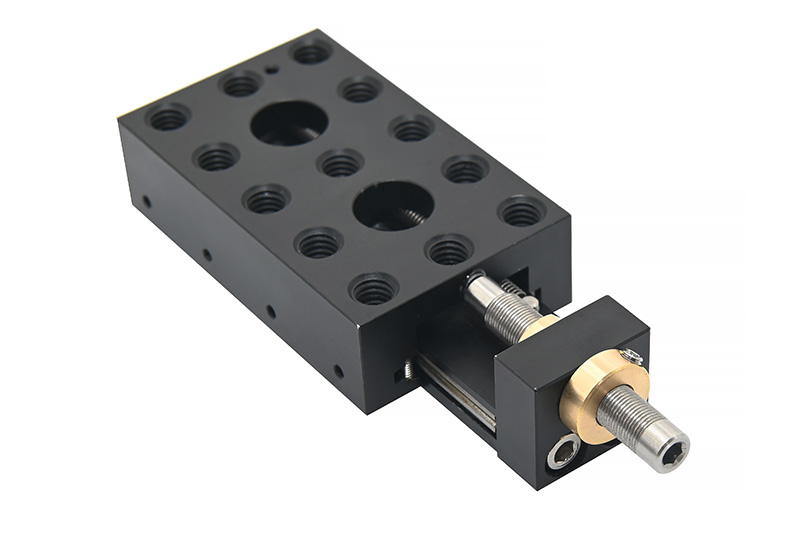

- For integration with fine adjustment stages and translation stages
- Six optional lengths from 35 to 50mm
The fine adjustment screws are pre-lubricated to ensure smooth mating with compatible components. Featuring ultra-fine tolerances, they deliver higher sensitivity and adjustment accuracy with a strong load capacity.

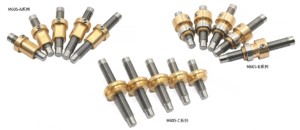

| Model | Adjustment Screw | Thread Length | Brass Type | |||
| Brass Dimension | Mounting Diameter | Weight | ||||
| M605-L30-A | M6*0.5 | 30mm | Ø12*15mm | Ø9.5mm | 12.3g | |
| M605-L35-A | 35mm | 13.3g | ||||
| M605-L40-A | 40mm | 14.2g | ||||
| M605-L45-A | 45mm | 15.1g | ||||
| M605-L50-A | 50mm | 16.2g | ||||
| M605-L30-B | 30mm | Ø12.9*16mm | M9.5*0.5 | 15.1g | ||
| M605-L35-B | 35mm | 16.0g | ||||
| M605-L40-B | 40mm | 17.0g | ||||
| M605-L45-B | 45mm | 18.0g | ||||
| M605-L50-B | 50mm | 19.0g | ||||
| M605-L30-C | 30mm | Ø15.8*7mm | M14*1.0 | 13.0g | ||
| M605-L35-C | 35mm | 14.0g | ||||
| M605-L40-C | 40mm | 15.0g | ||||
| M605-L45-C | 45mm | 16.0g | ||||
| M605-L50-C | 50mm | 17.0g |
Technical Description
(1) The fine adjustment screws are pre-lubricated for smooth engagement with compatible components. They feature ultra-fine tolerances for enhanced sensitivity and adjustment precision, and boast a robust load capacity. The regulator body is made of 304 stainless steel, with a flat head on the end face and a deep hexagon socket at the tail.

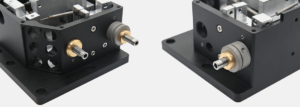

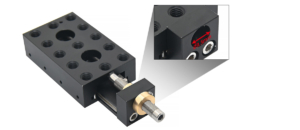

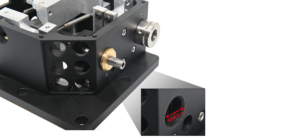

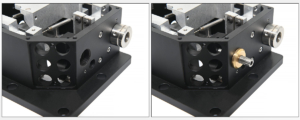

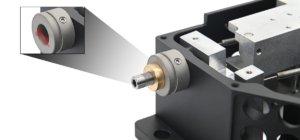

(2) When used with adjustment stages or translation components with compatible threads, please confirm the assembly hole matching the size of the threaded bushing. Three threaded bushing options are available. For installation, mount with the flange end forward and secure with epoxy resin—an ideal choice for fine adjustment sliding assembly.
