Description
Product Description
- Cube with adjustable deflection and tilt
- Adjustment range: ±2° deflection, 2° tilt
- Compatible with 30 mm cage systems and SM1 lens sleeves
- Preassembled components: M2-DMX with built-in CSMH-25.4-M non-polarizing beam splitter prism; M2-DCX with built-in PSMH-S36-M beam splitter plate

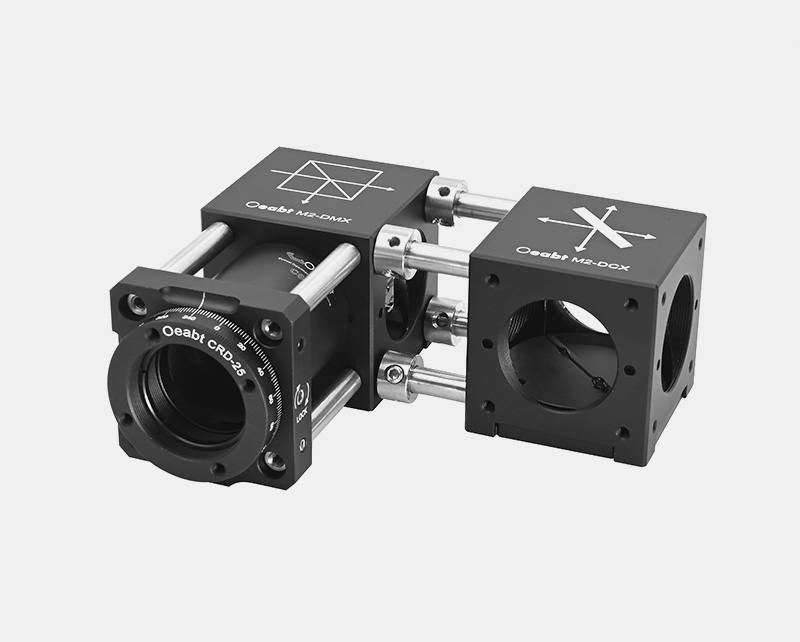

The M2-DX Series offers preassembled versions with non-polarizing beam splitter prisms/plates, and is compatible with 30 mm cage systems.
| Specification | M2-DMX | M2-DCX |
| Dimensions | 41.0×41.0×42.5 mm | 41.0×41.0×42.5 mm |
| Adjustment Range | ±2° deflection, 2° tilt | ±2° deflection, 2° tilt |
| Built-in Component | CSMH-25.4-M Non-polarizing Beam Splitter Prism | PSMH-S36-M Beam Splitter Plate |
| Mountable Optics | Prisms with side length of 25 mm/25.4 mm | Rectangular optics with width ≤36 mm, height ≤30 mm and thickness ≤1.1 mm |
| Threaded Hole Spacing | 4-40 threaded holes, 30×30 mm spacing | 4-40 threaded holes, 30×30 mm spacing |
| Weight | 105.5 g | 70.0 g |
| Material | 7075 Aluminum Alloy | 7075 Aluminum Alloy |
Technical Description
- The M2-DX Series provides preassembled configurations with non-polarizing beam splitter prisms or plates, and is compatible with 30 mm cage systems. The M2-DMX is integrated with a CSMH -25.4-M non-polarizing beam splitter prism, and the M2-DCX with a PSMH-S36-M beam splitter plate. The product is sold as a complete assembly, and the housing is not available for separate purchase.
| Component | Type | Applicable Wavelength | Reflection : Transmission |
| CSMH-25.4-M | Non-polarizing Beam Splitter Prism | 400-700 nm | 1:1 |
| PSMH-S36-M | Half-reflection & Half-transmission Beam Splitter Plate | 400-700 nm | 1:1 |

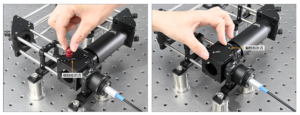

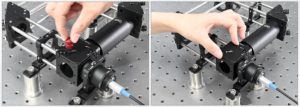

(2) The cube features an adjustment range of ±2° deflection and 2° tilt. Rotate the thumb screw on the cube base to adjust the deflection angle of the optical component (marked with double arrows). The adjustment screw at the bottom of the cube is driven with a 1.6 mm hex wrench to control the tilt angle of the optical component (marked with angle indicators).

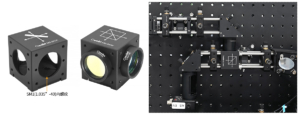

(3) The cube housing is equipped with SM1 (1.035″-40) internal threads on four sides, compatible with SM1 sleeves or other components. Emission and excitation filters can also be mounted in short lens sleeves and connected to the SM1 threaded ports, enabling integration to build a complete fluorescence imaging filter assembly.

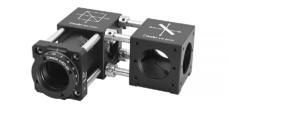

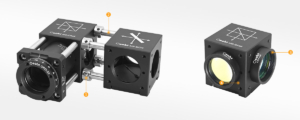

(4) Each face of the cube is designed with four 4-40 threaded holes, allowing integration into 30 mm cage systems via PCM-S series posts. In addition, M2-CX connectors can be used for stacking multiple cubes together.
Assembly

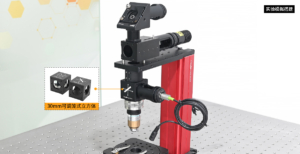

Application Examples
Engineering Drawings Download
