Description
Product Description
- Available in 4000K warm white and 6200K cool white LEDs
- SMA connector ideal for multimode fiber patch cords
- Optimized thermal performance for stable power output
- Separate light source and controller design with analog circuitry and short-circuit protection
- Supports external trigger synchronization and stepless strobe brightness adjustment
- Works with LEDOTB dimming controller for single-channel intensity control
The fiber-coupled LED uses butt-coupling technology to integrate a single LED with optical fiber. It includes an LED mounted on a heat sink with an SMA fiber connector, and can be integrated into optical setups using multimode fiber patch cords with SMA connectors.
| Model | Output Wavelength Range | Typical Output Power (Ø1 mm Fiber) |
| LED-OF-454 | 446–462 nm | ≤ 90 mW |
| LED-OF-520 | 512–528 nm | ≤ 90 mW |
| LED-OF-536 | 528–545 nm | ≤ 90 mW |
| LED-OF-630 | 622–638 nm | ≤ 90 mW |
| LED-OF-MAX6K-5 | 6000–6500K, 5W | ≤ 125 mW |
| LED-OF-MAX6K-10 | 6000–6500K, 10W | ≤ 205 mW |
Notes:① Test conditions: Ø1 mm plastic fiber core, 1 m length SMA patch cord; measured with optical power integrating sphere.② Optical power tested with bare LED closely attached to integrating sphere power meter; final output power depends on focusing design.
| Housing Dimensions | 36×47.5×24.2 mm (excluding base plate) |
| Electrical Power | 5W / 10W |
| Current | 390mA / 860mA |
| Voltage | 12V / 12V |
| Connector Type | SMA |
| Beam Pattern | Speckle |
| Fiber Material | Plastic |
| Fiber Length | 1 m |
| Housing Material | Eco-friendly aluminum |
| Operating Temperature | 0℃–60℃ |
| Weight | 134.9 g |
LED Dimming Controller
| Model | Output Power | Rated / Peak Current | Set / Operating Current |
| LEDOTB-1000 | 5W | 1000 mA | 390 mA |
| LEDOTB-2000 | 10W | 2000 mA | 860 mA |
| Housing Dimensions | 76.0×74.0×47.0 mm |
| Max. Flash Frequency | 10 kHz |
| Min. Strobe Pulse Width | 50 μs |
| Strobe Switching Time | ＜25 μs |
| Input Voltage | 12V regulated DC |
| Operating Temperature | 0–40 ℃ |
| Storage Temperature | -40–+70 ℃ |
| Weight | 175 g |
Power Requirements
| Power Supply | Min. Voltage | Max. Voltage | Max. Rated Current |
| DC 12V | +11.5V | +12.5V | 1A |
Technical Description
The fiber-coupled LED uses butt-coupling to combine a single LED with optical fiber. It includes a heat-sink mounted LED and SMA connector, and can be integrated into optical systems using SMA multimode patch cords. Hybrid patch cords are available for conversion from SMA to FC/PC, ferrule, or bare fiber ends. The flexible patch cord allows free positioning of the light output for convenient use.

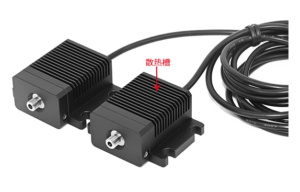

These pre-assembled fiber-coupled LEDs offer excellent thermal stability, preventing output power drop caused by LED heating. The housing features strip-shaped heat dissipation grooves, improving cooling by 10–15% for faster temperature reduction. They provide high reliability, stability, anti-interference, uniformity, and long service life.
Single unit includes: Fiber-coupled LED, fiber patch cord

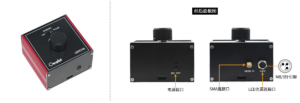

The LEDOTB controller is a compact intensity regulator for fiber-coupled LEDs, driving up to 1000–2000 mA. Stepless dimming is controlled via a single potentiometer knob with integrated power switch. It supports CW (constant current) and PULSE (SMA 5V TTL input) modes, delivering stable illumination for CCD camera exposure and digital microscopy systems.

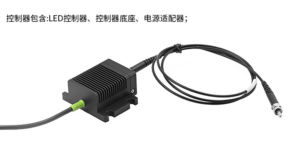

Controller package: LED controller, controller base, power adapter

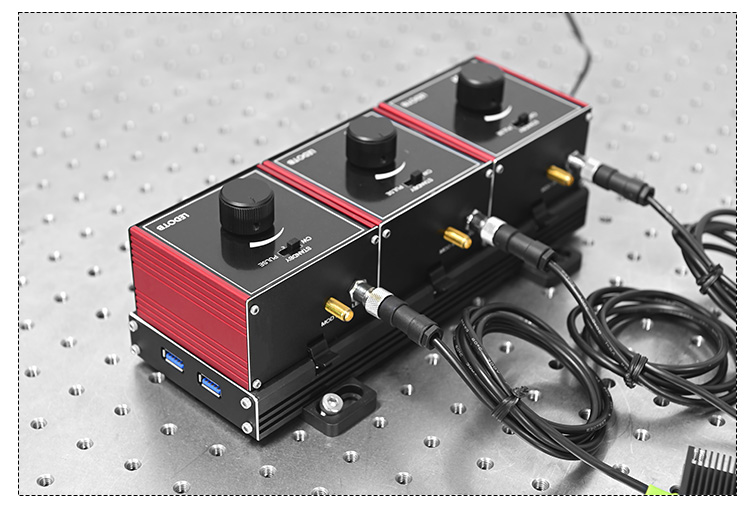

The KCH-A series communication and power hub is designed for Oscam Vision® C-module controllers. It simplifies cable management, power linking, and multi-device USB communication. It includes a low-profile base with inter-board connectors to assemble 2/3/4 C-module controllers. It integrates a USB 3.0 hub circuit and can power and communicate with up to 4 controllers using a single power cable.

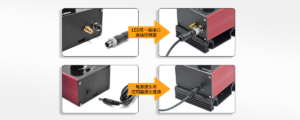

Assembly

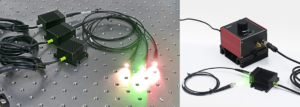

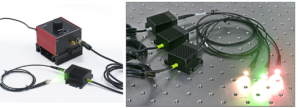

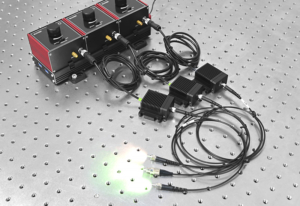

Application Examples
Engineering Drawings
