Description
Product Description
- High-power rated diode, available in white light option;
- Optimized thermal performance for stable power output;
- Separate light source and controller design with analog circuit and short-circuit protection;
- Works with LEDOTB dimming controller to support intensity adjustment for single-channel LED light source;
- Supports dual modes: constant current drive (continuous) and pulse current adjustment.

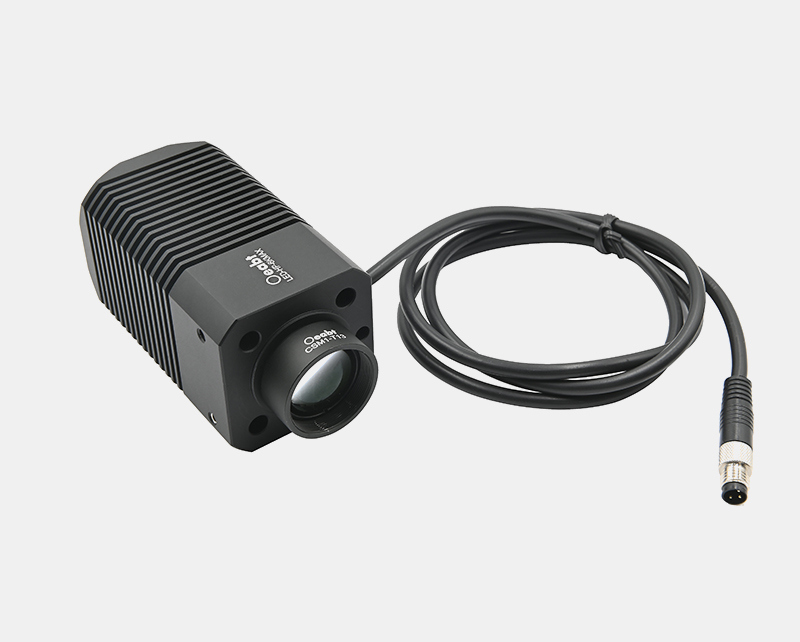

The separate design of high-power light source and controller integrates high brightness output, thermal stability and flexible drive modes. It can be directly coupled into the epi-illumination light path of a microscope.
| Model | LED-HP-6KMAX |
| Housing Dimensions | 86.0×48.0×48.0 mm |
| Output Voltage | DC 5 V |
| Output Current | 2 A Max. |
| Light Source Power | 10 W Max. |
| Color Temperature Range | White light 6000–6500 K |
| Light Source Package | 3535 |
| Brightness Adjustment | Stepless dimming |
| External Trigger Input | Positive trigger |
| Trigger Delay Time | ＜80 μs |
| External Trigger Frequency | ＜1/T |
| Connector Type | M8 connector |
| Operating Temperature | 0–60 ℃ |
| Standby Power Consumption | ＜0.2 W |
| Thread Type | SM1 (1.035”-40) internal thread |
| Weight | 352.5 g |
| Accessories | LED-HP-6KMAX LED light source, CSM1-T13 Ø1 inch adjustable sleeve, OLB-I1-50PM plano-convex lens |
| Model | LEDOTB-17W |
| Output Electrical Power | 17 W |
| Rated / Peak Current | 4000 mA |
| Set / Operating Current | 3800 mA |
| Max. Flash Frequency | 10 kHz |
| Min. Strobe Pulse Width | 50 μs |
| Strobe Switching Time | ＜25 μs |
| Input Voltage | 12 V regulated DC |
| Operating Temperature | 0–40 ℃ |
| Housing Dimensions | 76.0×74.0×47.0 mm |
| Weight | 175 g |
Technical Specifications
The LED light source integrates a standard SM1 internal thread interface, compatible with Ø1 inch lens sleeve series, allowing collimating optical components to be installed in the lens tube. It has through holes compatible with Ø6 mm posts and can be integrated into a 30 mm cage system. Suitable for demanding applications such as machine vision, microscopic illumination, spectral calibration and optical experiments.

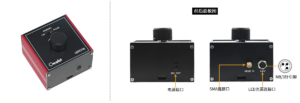

The LEDOTB controller is a compact controller for adjusting the light intensity of LED light sources. It can drive LEDs at a maximum current of 700–2000 mA. Users can perform stepless dimming of the LED light source simply by operating a potentiometer knob with integrated switch function. This controller supports constant current drive mode (CW) and pulse mode (PULSE, via SMA 5 V TTL signal input). LEDOTB provides stable and reliable light source support for CCD camera exposure assistance and digital microscopic imaging systems.
| Power Supply | Min. Voltage | Max. Voltage | Max. Rated Current |
| DC 12 V | 9 V | 15 V | 2 A |
Adopts high-power white LED with precision heat dissipation structure and housing design, ensuring stable optical power and color temperature during long-time operation. The light exit port is SM1 (1.035”-40) internal thread, allowing easy integration of filters, lenses or direct connection to Ø1 inch lens sleeves.
Dual drive modes:
- Constant current drive: Provides stable, flicker-free continuous illumination.
- Pulse current adjustment: Supports high-frequency and narrow-pulse drive, suitable for stroboscopic imaging and time-resolved measurements.

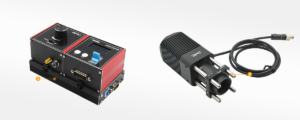

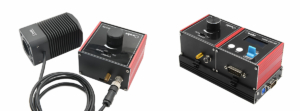

Assembly

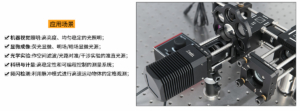

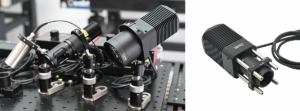

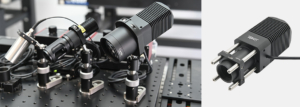

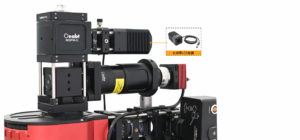

Application Examples
Engineering Drawings
