Description

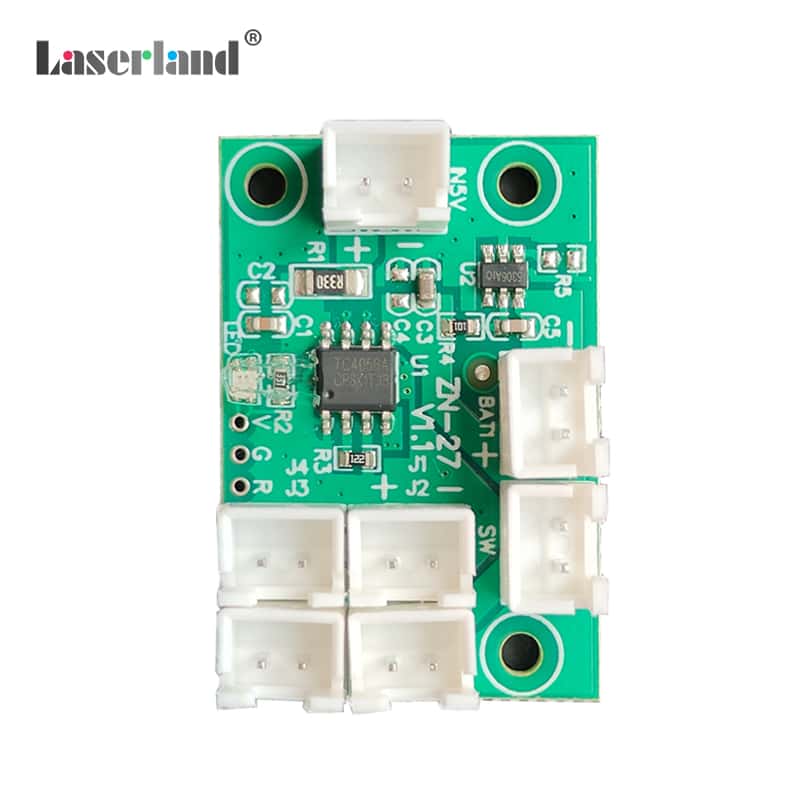

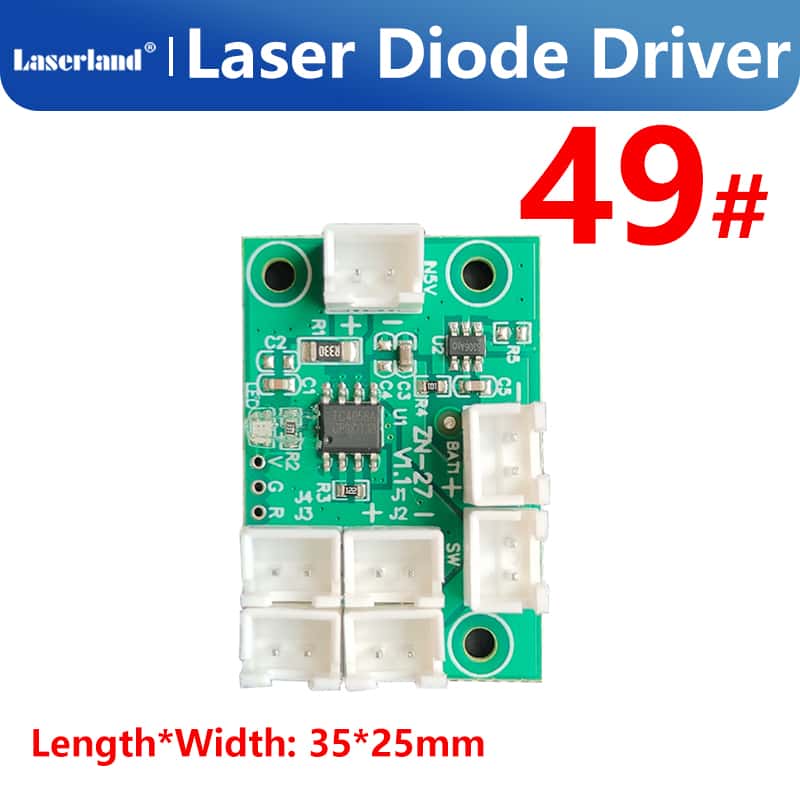

Laser Diode Driver Constant Power Board Laser Module Circuit Board with Charging Circuit
The circuit board is a precision component. After receiving the package, it supports 7 days without reason to return the product without opening the original package. After the original package is opened, no return is provided. After sale, please consider whether you have the ability to install it manually before purchasing. Do not purchase if you do not have the ability to install! Our company does not provide trial play/trial loan/trial service. Thank you for understanding!
Product Information
Product Name: Laser Module Circuit Board with Charging Circuit
Terminal Type: PH2.5
Rated Voltage: DC3.7V
Rated Current: 80-350mA (can drive 4 modules simultaneously)
Charging Voltage: 3.7V 1A constant current and voltage

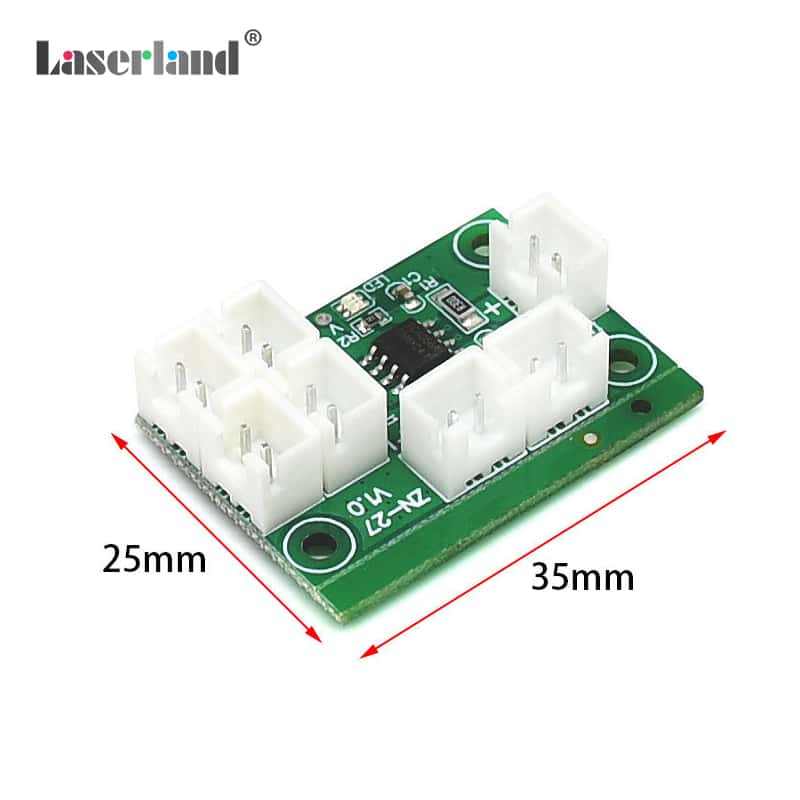

Length*Width: 35 * 25mm
Function introduction:

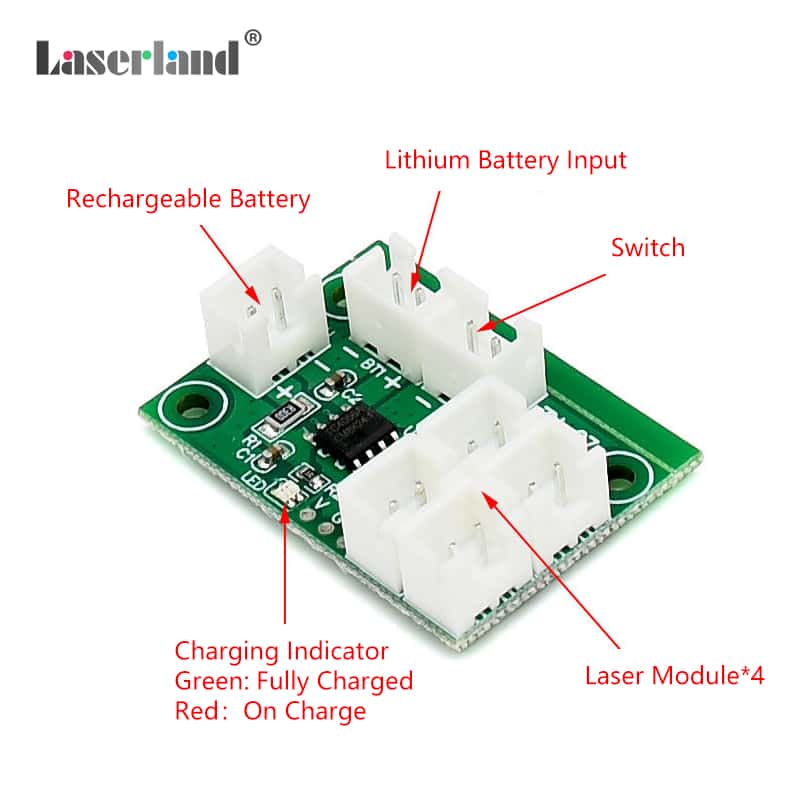

This circuit board has a lithium battery charging function, which can simultaneously drive 4 laser modules
