Description
Product Description
- Steering adjustment mount for 1-inch circular optical components.
- Provides ±4° pitch and yaw adjustment.
- Mounts Ø1-inch (25.4mm) optical components at a 45° angle relative to the optical axis.
- Installs Ø6mm cage rods, with optional smooth holes or 4-40 threaded holes.
- Compatible with 30mm cage systems and SM1 (1.035”-40) threads.
- One M4 threaded hole and one M6 threaded hole for Ø12mm rods and Ø1-inch rods.
- SM1 threaded holes compatible with 1-inch sleeves.

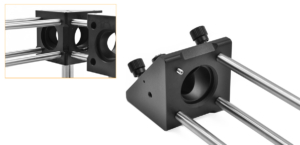

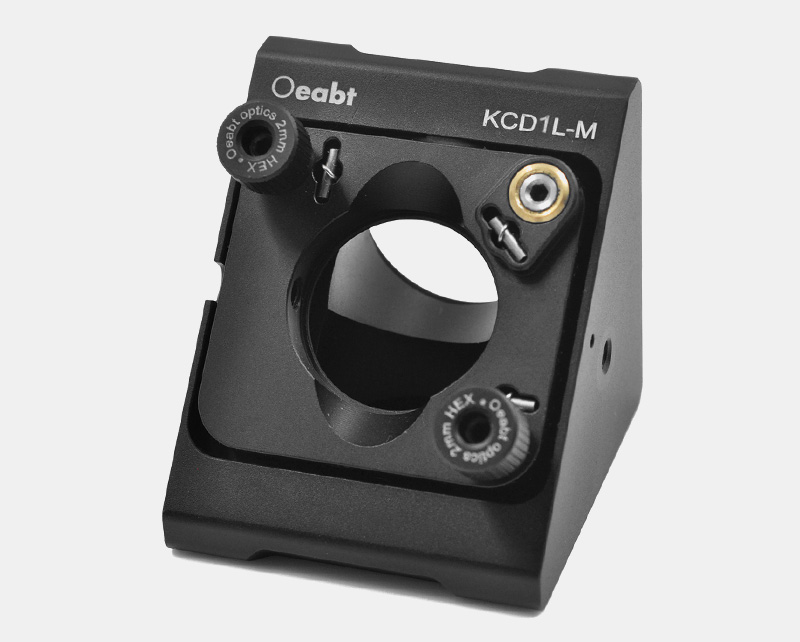

The KCD1L right-angle adjustment mount is designed for easy integration into our 30mm cage systems. The input and output ports of the mount feature one SM1 threaded hole each, enabling integration of Ø1-inch lens sleeves. Equipped with three 3/16″-100 adjusters, the mount allows precise alignment of mirrors and accurate beam alignment within a 30mm cage system.
| Specifications of 30mm Cage-Style Right-Angle Mirror Mount | KCD1L-M | KCD1L-M1 |
| Model | KCD1L-M | KCD1L-M1 |
| Connecting Rod Aperture | Ø6mm through hole | 4-40 threads |
| Hole Spacing | 30*30mm | 15*15mm |
| Port Threads | SM1 (1.035”-40) internal threads | SM1 (1.035”-40) internal threads |
| Weight | 136.8g | 141g |
| Material | 7075 aluminum alloy | 7075 aluminum alloy |
Product Description

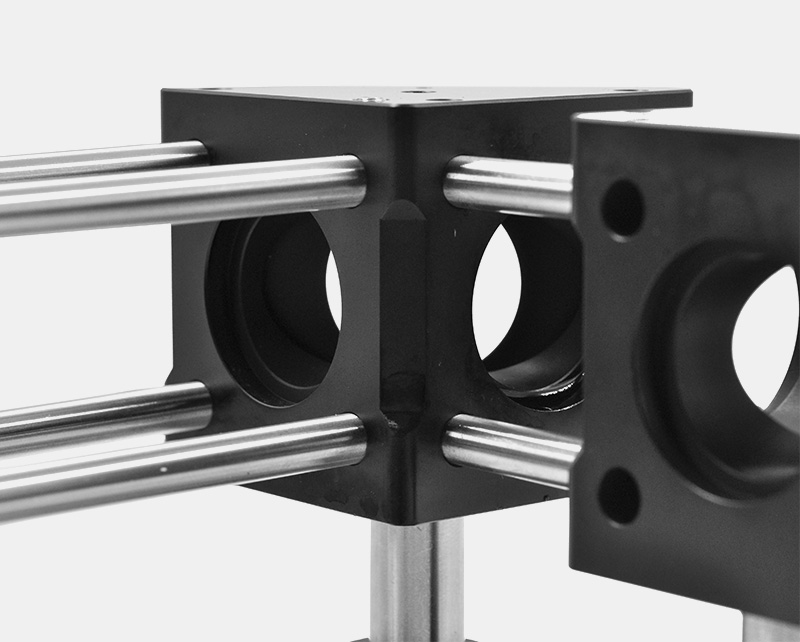

The right-angle adjustment mount is compatible with Ø1-inch (25.4mm) optical components, providing the maximum clear aperture for transmitted light and space for operating the installed components. The rear-loading design does not limit the thickness of the optical components to be installed—even with cage rods or lens sleeves mounted on the base, the installed optical components can still be operated. Teflon washers (sold separately) can be used for mounting optical components thinner than 3mm to protect the lenses. The adjustment screws enable pitch and tilt adjustment of the surface plate, ensuring smooth, highly sensitive movement with a resolution of 0.01 inches (0.254mm). Two of these adjusters come with manual knobs, while the third must be adjusted using a 2mm hex wrench or ball-head screwdriver.
It provides adjustable pitch and tilt for optical components mounted at a 45° horizontal angle. Unlike the through-hole design of the KCD1L-M, the KCD1L-M1 uses 4-40 screws for direct fixing, offering higher stability than the through-hole design. Their spacing matches our 30mm cage system standards, allowing direct connection of multiple 30mm cage components without the need for cage rod adapters.
One M4 threaded hole and one M6 threaded hole (for Ø12mm and Ø1-inch rods).

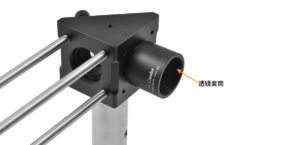

1-inch diameter lens hole with SM1 threads, compatible with SM1 lens sleeves.

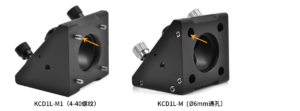

Schematic of the difference between the two models:

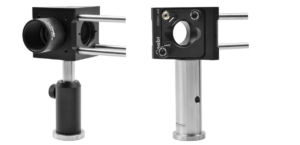

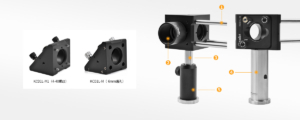

Assembly

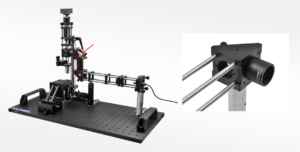

Application Example
Oeabt’s cage systems offer a variety of accessories and adapters for coaxial cage setups. By installing rods or lens sleeves, the cage system can be integrated into optical equipment.
Engineering Drawing Download
