HC-HF Bare Fiber Clamp

Description

Product Description

• V-groove design for holding bare fibers with Ø150–341 µm.
• Clamping arm secured by magnets.
• Compatible with Nano series flexure stages and OPS-3XAM fiber coupling plates.
• Bottom M4 threaded holes for mounting on posts.

The V-groove and rubber pad on the fiber clamp holder are designed for damage-free clamping of single-mode or multi-mode fibers. It accommodates glass or plastic fibers with diameters from Ø150 to Ø341 µm and can be integrated with Nano series flexure stages or OPS-3XAM fiber coupling plates.

Technical Description

1. The V-groove and rubber pad on the fiber clamp holder provide damage-free compression on single-mode or multi-mode fibers. It supports glass or plastic fibers of Ø150–341 µmand integrates with Nano series flexure stages or OPS-3XAM fiber coupling plates.

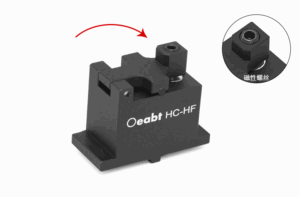

1. The combination of magnets and magnetic screws on the clamping arm allows easy adjustment of clamping force. Use a 2 mm hex key to tighten the magnetic screw toward the fiber to increase clamping force; loosen it to decrease clamping force.

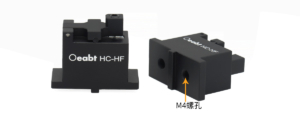

1. Via the bottom M4 threaded holes, the fiber clamp is compatible with Oeabt series Ø12 mm postsand can be integrated into optical breadboard or optical table setups.

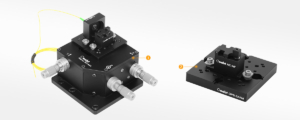

Assembly

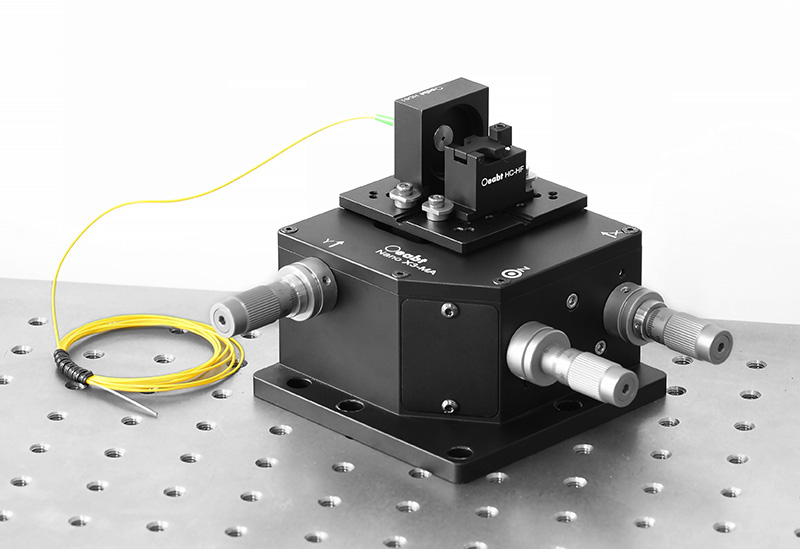

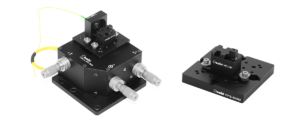

Application Examples

Engineering Drawings

HC-HP Engineering Drawing
