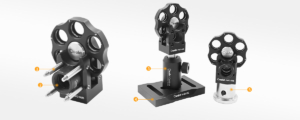

- Rotate the wheel to quickly switch filters;
- Filter wheel notches feature SM05 (0.535”-40) threads, with CSK05 retaining rings included;
- Can mount up to 6 optical components of Ø0.5 inches and maximum thickness 4.5mm;
- SM05 (0.535”-40) internal threaded ports, compatible with lens sleeves;
- Compatible with 16mm cage systems;

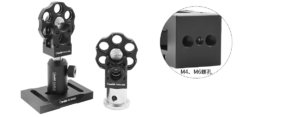

- M4/M6 threaded holes at the bottom for rod installation;

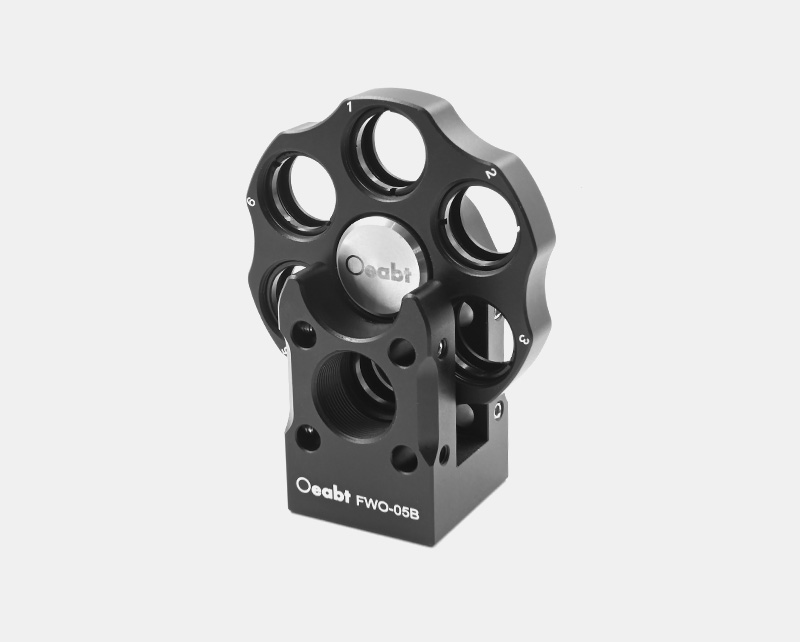

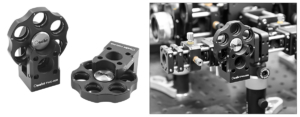

The FWO-05B Filter Wheel is compatible with 16mm coaxial systems, featuring six filter holders with SM05 threads. It can mount optical components of Ø0.5 inches and maximum thickness 4.5mm.
| Model | FWO-05B |
| Specification | 47.68*25.4*62.5mm |
| Wheel Notch | SM05 (0.535”-40) internal thread, compatible with Ø0.5-inch lenses up to 4.5mm thick |
| Threaded Hole Type | SM05 (0.535”-40) internal thread at ports, 1 M4 hole, 2 M6 holes |
| Weight | 62.3g |
| Material | 7075 Aluminum Alloy |
Technical Description
(1) The FWO-05B Filter Wheel is compatible with 16mm coaxial systems, equipped with six filter holders with SM05 threads. The filter wheel is positioned by mechanical bayonets with small internal steel balls, aligning the filter center with the cage system. It can mount optical components of Ø0.5 inches and maximum thickness 4.5mm, with the included retaining rings used to fix the lenses.

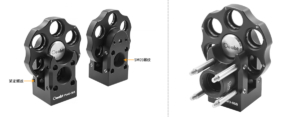

(2) The fixed input and output ports on the main body also have SM05 threads for compatibility with our Ø0.5-inch lens sleeves. There are set screws on the side of the cage rod through-holes, and a 1.6mm hex wrench can be used to fix the position of SPCM series cage rods. (Note: The through-holes cannot pass through cage rods as they will be blocked by the filter wheel.)
(3) M4 and M6 threaded holes at the bottom facilitate compatible installation of optomechanical components.
