Description

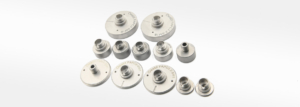

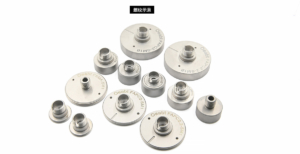

Product Description
- Compatible with FC/PC (narrow key or wide key), FC/APC (wide key or narrow key), and SMA fiber connectors.
- Compatible with SM05, SM1 threaded sleeves or cage-style assemblies.
- Multiple specifications available.
| Model | Fiber Connector Type | SM Thread Type | Weight |
| FAPC2-SM1B | FC/APC 2.0 narrow key | SM1 (1.035”-40) internal thread | 20.0 g |
| FAPC2.2-SM1B | FC/APC 2.2 wide key | — | 20.0 g |
| FSMA-SM1 | SMA connector | SM1 (1.035”-40) external thread | 13.5 g |
| FAPC2-SM1 | FC/APC 2.0 narrow key | — | 11.9 g |
| FAPC2.2-SM1 | FC/APC 2.2 wide key | — | 11.9 g |
| FAPC2-SM05B | FC/APC 2.0 narrow key | SM05 (0.535”-40) internal thread | 7.1 g |
| FAPC2.2-SM05B | FC/APC 2.2 wide key | — | 7.1 g |
| FPC2-SM05B | FC/PC 2.0 narrow key | — | 5.8 g |
| FPC2.2-SM05B | FC/PC 2.2 wide key | — | 5.8 g |
| FSMA-SM05B | SMA connector | — | 6.0 g |
| FAPC2-SM05 | FC/APC 2.0 narrow key | SM05 (0.535”-40) external thread | 3.3 g |
| FAPC2.2-SM05 | FC/APC 2.2 wide key | — | 3.3 g |
Note: FC/APC fiber connectors feature a 4° mechanical angle to compensate for the refraction angle of the output beam.
Technical Description
We offer fiber patch cord adapters with narrow-key or wide-key FC/PC, narrow-key or wide-0key FC/APC, and SMA connectors. These are commonly used to assemble free-space single-mode and multi-mode fiber couplers, collimators, and for other free-space coupling applications. They allow most connectorized fibers to be attached to SM05 and SM1 threaded assemblies.

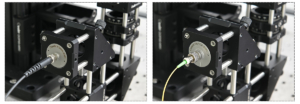

Assembly

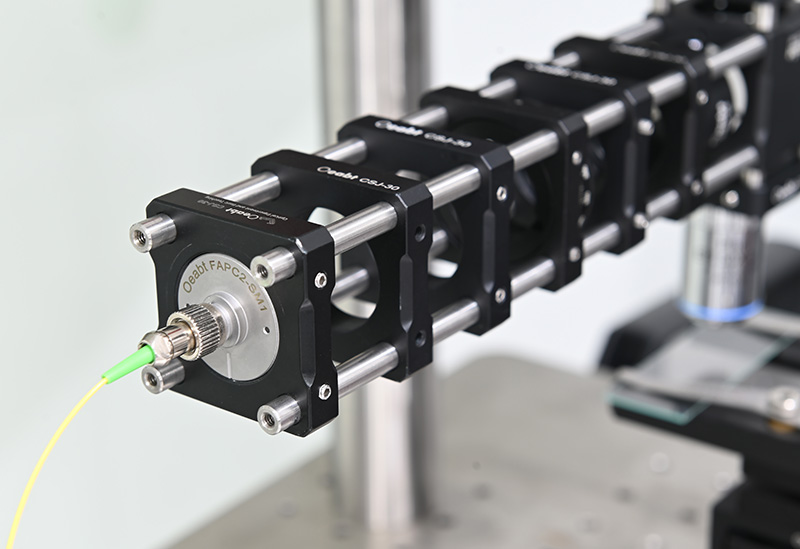

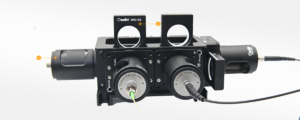

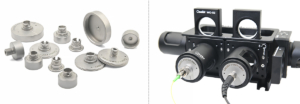

Application Examples
Engineering Drawings
FSMA-SM05B Engineering Drawing
FPC2-SM05B Engineering Drawing
FPC2. 2-SM05B Engineering Drawing
FAPC2-SM05B Engineering Drawing
FAPC2-SM05 Engineering Drawing
FAPC2-SM1B Engineering Drawing
FAPC2. 2-SM05B Engineering Drawing
FAPC2. 2-SM05 Engineering Drawing
