FC-Attenuator Series Fiber Optic Attenuators
FC-Attenuator Series Fiber Optic Attenuators
Price range: $17.60 through $33.00
Description
Product Description
- Attenuates optical signals

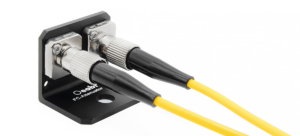

- FC-FC connectors, 2.2 mm wide keyway, compatible with single-mode and multi-mode fibers
- High repeatability, high return loss, low insertion loss

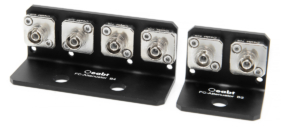

- Available with 2-port and 4-port integrated mounts

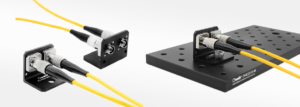

- Mounting holes for easy installation on posts, optical tables or breadboards
Fiber optic attenuators reduce optical power to prevent receiver distortion caused by excessive input power.
| Common Parameters | Specifications |
| Connector Type | FC-FC |
| Material | Ceramic sleeve + aluminum alloy mount |
| Fiber Type | Single-mode & Multi-mode |
| Durability | > 100 matings |
| Repeatability | ≤ 0.10 dB |
| Interchangeability | ≤ 0.20 dB |
| Operating Wavelength | 1200 nm – 1600 nm |
| Attenuation Accuracy | ± 10% dB |
| Return Loss | > 20 dB |
| Model | Attenuation | Port Count | Weight |
| FC-Attenuator A2 | 1 dB / 3 dB | 2 ports | 25.0 g |
| FC-Attenuator A4 | 1 dB / 3 dB | 4 ports | 50.1 g |
| FC-Attenuator B2 | 5 dB / 7 dB | 2 ports | 25.0 g |
| FC-Attenuator B4 | 5 dB / 7 dB | 4 ports | 50.1 g |
| FC-Attenuator C2 | 10 dB / 15 dB | 2 ports | 25.0 g |
| FC-Attenuator C4 | 10 dB / 15 dB | 4 ports | 50.1 g |
Technical Notes
- Fiber optic attenuators reduce optical power to avoid receiver saturation. The FC-Attenuator series provides precise core alignment, high repeatability, high return loss, and low insertion loss.

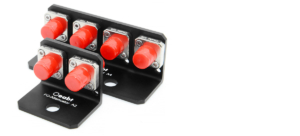

- Rubber caps are included on both ends for dust protection and storage.

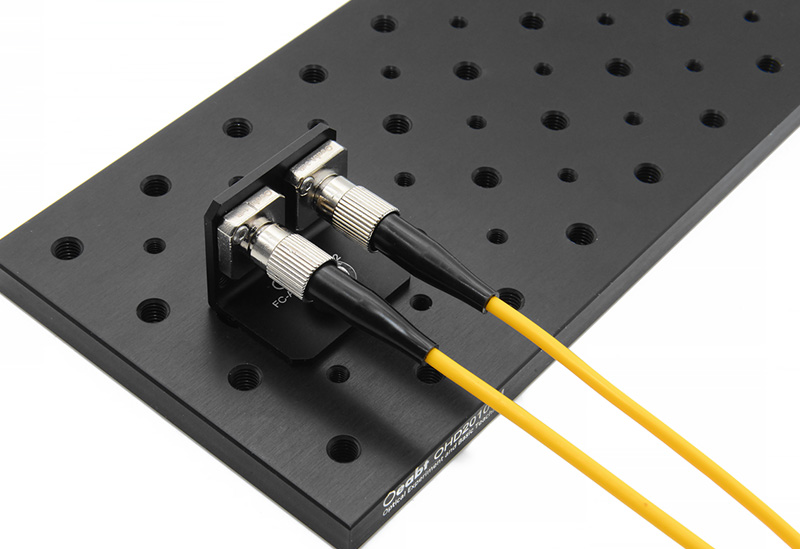

- L-shaped mounting brackets with through holes allow secure mounting via M6 screws to optical posts, tables, or breadboards.

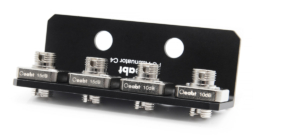

- Attenuation values are lasermarked on each unit. Available sets:
- 1 dB / 3 dB
- 5 dB / 7 dB
- 10 dB / 15 dB
Assembly

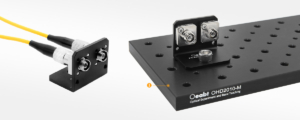

Application Examples
Engineering Drawings
Additional information
| Weight | N/A |
|---|---|
| Model | FC-Attenuator A2, FC-Attenuator A4, FC-Attenuator B2, FC-Attenuator B4, FC-Attenuator C2, FC-Attenuator C4 |
