F1220 Series Ø12 mm Fiber Collimator
Price range: $39.40 through $98.80
Description

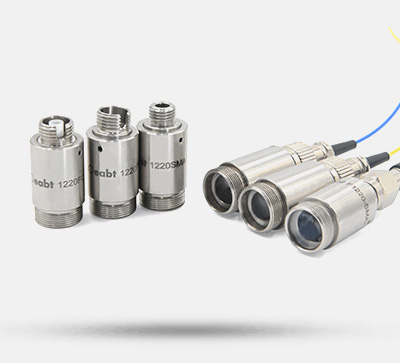

F1220 Series Ø12 mm Fiber Collimator
Product Description
- Ø12×20 mm, non-magnetic stainless steel housing
- Pre-aligned fiber collimator for collimating light emitted from optical fibers
- Available alignment wavelengths: 405–850 nm
- Designed for single-mode fiber patch cords; FC/PC, FC/APC, and SMA905 connector options
- Simplifies fiber coupling and detection systems
A fiber collimator is a pre-aligned optical component that collimates divergent light beams transmitted through optical fibers into parallel beams (or couples parallel beams into optical fibers).
表格
| Item | Specification |
| Dimensions | Ø12×20 mm |
| Mounting Interface | M11×0.5 |
| Beam Diameter | 5 mm (3 mm for 785 nm, 830 nm, 850 nm) |
| Divergence Angle | 0.01° |
| Focal Length | 15 mm |
| Numerical Aperture (NA) | 0.17 |
| Effective Collimation Distance | 2 m |
(1) Fiber Collimation Conditions: Designed for single-mode fiber patch cords. Performance will degrade if used with multi-mode fibers. Always use the specified wavelength and matching patch cords; otherwise collimation performance will deteriorate.(2) Note: Perfect collimation cannot be achieved with multi-mode or large-core fibers.
1220FC Series
| Series | Model | Alignment Wavelength | Anti-Reflection Coating | Connector |
| 1220FC Series | 1220FC-405 | 405 nm | 400-700 nm | FC/PC (2.2 mm wide key) |
| 1220FC-450 | 450 nm | |||
| 1220FC-488 | 488 nm | |||
| 1220FC-520 | 520 nm | |||
| 1220FC-635 | 635 nm | |||
| 1220FC-658 | 658 nm | |||
| 1220FC-785 | 785 nm | 700-1100 nm | ||
| 1220FC-830 | 830 nm | |||
| 1220FC-850 | 850 nm |
1220FCAPC Series
| Series | Model | Alignment Wavelength | Anti-Reflection Coating | Connector |
| 1220FCAPC Series | 1220FCAPC-405 | 405 nm | 400-700 nm | FC/APC (2.0 mm narrow key) |
| 1220FCAPC-450 | 450 nm | |||
| 1220FCAPC-488 | 488 nm | |||
| 1220FCAPC-520 | 520 nm | |||
| 1220FCAPC-635 | 635 nm | |||
| 1220FCAPC-658 | 658 nm | |||
| 1220FCAPC-785 | 785 nm | 700-1100 nm | ||
| 1220FCAPC-830 | 830 nm | |||
| 1220FCAPC-850 | 850 nm |
1220SMA Series
| Series | Model | Alignment Wavelength | Anti-Reflection Coating | Connector |
| 1220SMA Series | 1220SMA-405 | 405 nm | 400-700 nm | SMA |
| 1220SMA-450 | 450 nm | |||
| 1220SMA-488 | 488 nm | |||
| 1220SMA-520 | 520 nm | |||
| 1220SMA-635 | 635 nm | |||
| 1220SMA-658 | 658 nm | |||
| 1220SMA-785 | 785 nm | 700-1100 nm | ||
| 1220SMA-830 | 830 nm | |||
| 1220SMA-850 | 850 nm |
Technical Description
(1) This pre-aligned fiber collimator converts divergent beams from optical fibers into parallel beams (or couples parallel beams into fibers). With a compact Ø12 mm profile, it integrates easily into existing setups, corrects beam divergence, reduces optical power loss in fiber connections and beam handling, and improves overall system optical performance.
| Model Series | 1220FC Series | 1220FCAPC Series | 1220SMA Series |
| Connector Type | FC/PC | FC/APC | SMA |

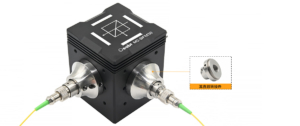

(2) For installation, a collimator mounting adapter is recommended. It features an internal M11×0.5 mm thread compatible with this series and an external SM1 (1.035-40) thread for direct integration into 30 mm cage systems.

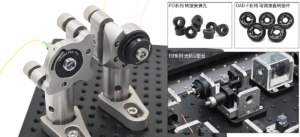

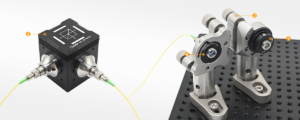

(3) It can also be mounted on optical adjustment mounts using POL series fixed mounting holes or OAD series collimation mounting holes.

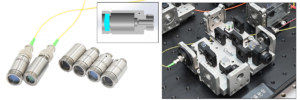

Assembly

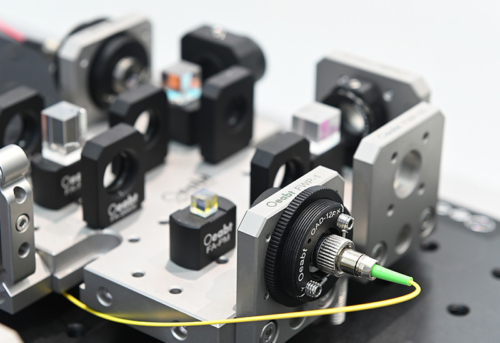

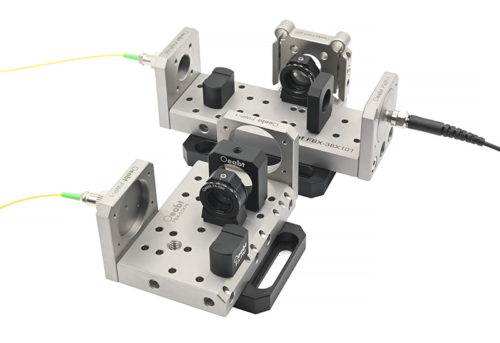

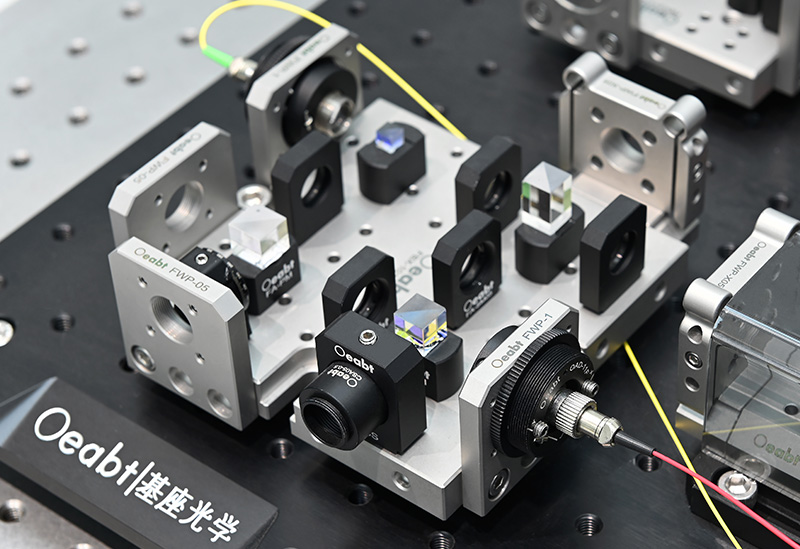

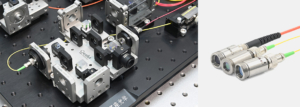

Application Examples
Engineering Drawings
Additional information
| Model | 1120FC-405, 1120FC-450, 1120FC-488, 1120FC-520, 1120FC-635, 1120FC-658, 1120FC-785, 1120FC-830, 1120FC-850, 1120FCAPC-405, 1120FCAPC-450, 1120FCAPC-488, 1120FCAPC-520, 1120FCAPC-635, 1120FCAPC-658, 1120FCAPC-658, 1120FCAPC-785, 1120FCAPC-830, 1120FCAPC-850, 1120SMA-405, 1120SMA-450, 1120SMA-488, 1120SMA-520, 1120SMA-635, 1120SMA-658, 1120SMA-785, 1120SMA-830, 1120SMA-850, PEC11-SM1 |
|---|
