Description

Product Description

  • Used to form a continuous barrier;
  • Can shield experimental devices in a relatively enclosed space to prevent laser diffusion hazards or isolate external interference factors;
  • Panels are connected via hinge structures, enabling the construction of optical enclosures with almost any contour;

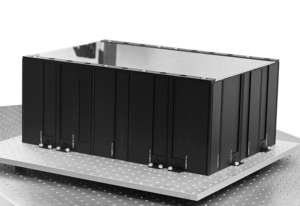

  • Can also be combined with acrylic panels to build top covers, forming a hexahedral enclosed space;
  • Provides shielded and windowed baffles with multiple size options;

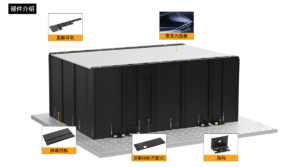

The EAP series modular optical shield offers standardized components, allowing users to fully customize the system to adapt to most experimental spaces. The system includes shielding baffles, window connecting plates, top cover guide rails, corner brackets, and top covers, all of which are sold separately. By flexibly using these standard components, users can easily construct a shielding system and replace other parts of the system at will.

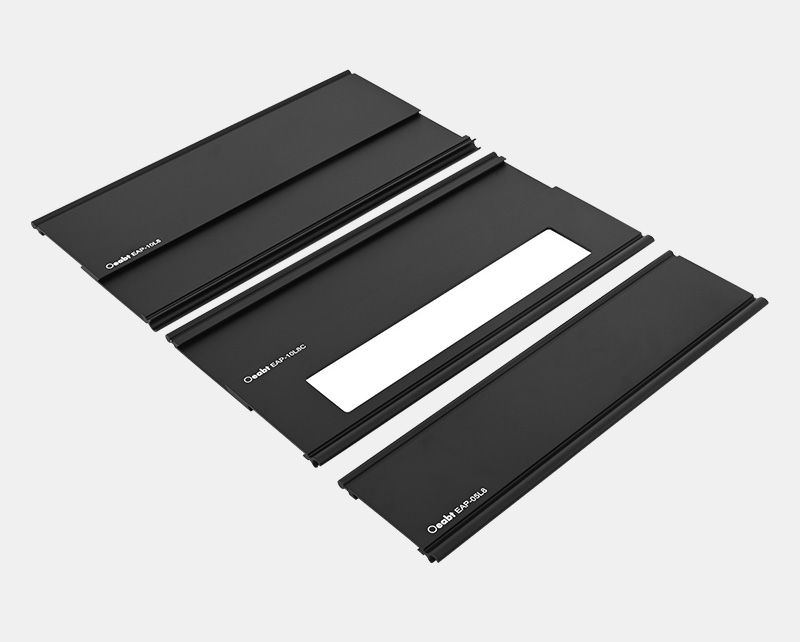

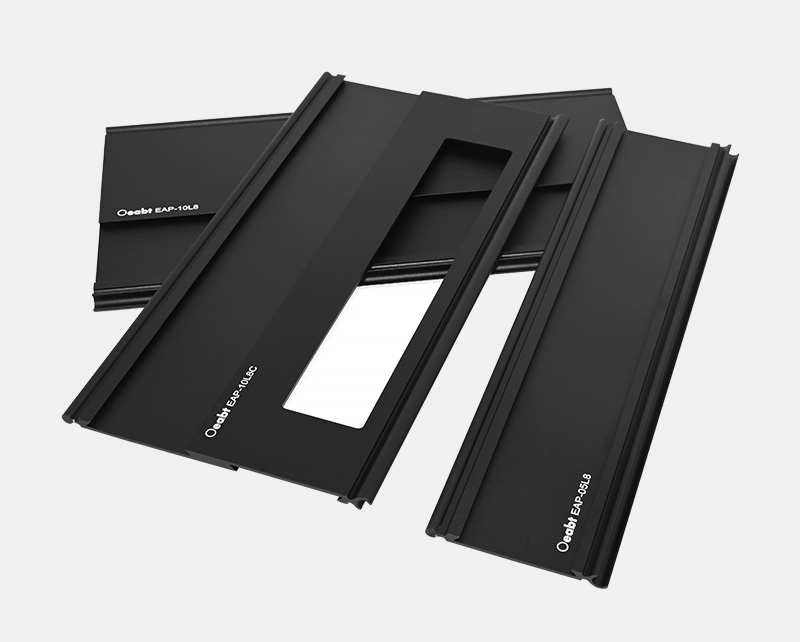

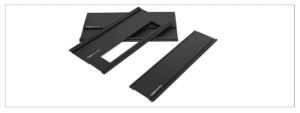

Shielding BaffleHeightWidthWeightMaterial
Model
EAP-05L88 inches50mm54.7g7075 Aluminum Alloy
EAP-10L88 inches100mm116.6g7075 Aluminum Alloy
EAP-10L8C8 inches100mm (Windowed Type)101.5g7075 Aluminum Alloy
EAP-05L1212 inches50mm82.7g7075 Aluminum Alloy
EAP-10L1212 inches100mm175.2g7075 Aluminum Alloy
EAP-10L12C12 inches100mm (Windowed Type)160.6g7075 Aluminum Alloy



Window Connecting PlateWindow Connecting Plate
ModelEAP-S
Specification200*32*2.5mm
Weight44.3g
Material7075 Aluminum Alloy



Top Cover Guide RailTop Cover Guide Rail
ModelEAP-OT20EAP-OT30
Specification200*28.5*6.4mm300*28.5*6.4mm
Slotted Hole Type4 positions of 6.2*12.2mm6 positions of 6.2*12.2mm
Weight64.2g100.5g
Material7075 Aluminum Alloy7075 Aluminum Alloy



Corner BracketCorner Bracket
ModelEAP-LA6EAP-LM6
Specification36.6*25.0*25.0mm36.6*25.0*25.0mm
Threaded Hole Type1 position of 6.113.1mm (slotted hole), 2 positions of 6.18.8mm (open slotted holes)1 position of M6, 2 positions of 6.1*8.8mm (open slotted holes)
Weight7.9g8.4g
Material7075 Aluminum Alloy7075 Aluminum Alloy

Installation & Technical Details

  • The EAP series modular optical shield provides standardized components, which can be used to fully customize the system to fit most experimental spaces. The system includes shielding baffles, window connecting plates, top cover guide rails, corner brackets, and top covers—all sold separately. With flexible use of these standard components, users can easily build a shielding system and replace other parts of the system freely.

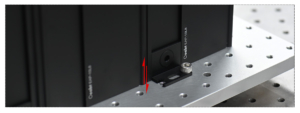

  • Measure the spatial dimensions requiring the barrier system to determine the required height and quantity of baffles;(3) When installing the baffle: Insert the corner bracket into the dovetail groove of the baffle from bottom to top, use a 5mm hex wrench to tighten and fix the contact surface with the baffle, then lock it onto the breadboard or platform using stud screws; \
  • \

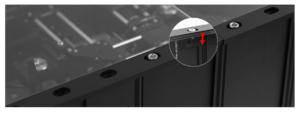

(4) Before installing the baffle: Insert the beveled surface of the corner bracket into the dovetail groove of the baffle from top to bottom. When aligned parallel to the baffle, tighten the hex screw to fix it on the baffle;

\

(5) The guide rails fit and slide for free opening and closing. At this point, the installation of the shielding system is complete.

Assembly

Application Examples

、

Engineering Drawing、

EAP-OT30 Engineering Drawing

EAP-OT20 Engineering Drawing

EAP-LM6 Engineering Drawing-1

EAP-LM6 Engineering Drawing

EAP-LC Engineering Drawing

EAP-L Engineering Drawing
