Description
Product Description
- Adjustable ±1.0mm in X/Y directions
- Front plate with SM1 (1.035”-40) internal thread
- Accepts Ø1 inch optical components with a maximum thickness of 8.6mm
- Compatible with 30mm cage systems and Ø6mm cage rods
- M4 threaded hole at the bottom for rod mounting
The CTS1-XY translation stage is designed for the coarse positioning of optical components in the X and Y directions within a 30mm cage system, providing an adjustment range of ±1mm.
| Model | CTS1-XY |
| Dimension | 40.6*40.6*21.6mm |
| Travel Range | ±1mm in X and Y directions |
| Central Aperture | SM1 (1.035”-40) threaded hole, Ø30mm smooth hole |
| Mountable Optics | Ø1 inch optical components with thickness ≤8.6mm |
| Threaded Hole Type | 1 x M4 |
| Weight | 46.2g |
| Material | 7075 Aluminum Alloy |
Technical Description
(1) The CTS1-XY translation stage enables coarse positioning of optical components in the X and Y directions for 30mm cage systems, with a manual adjustment range of ±1mm. It is ideally suited for use with alignment lasers to ensure precise centering of optical components.

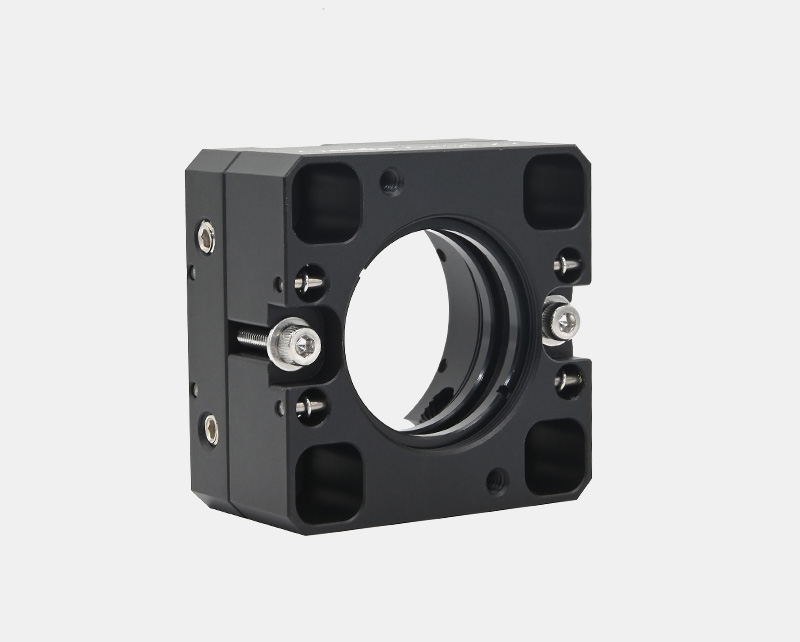

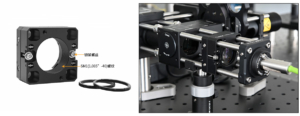

(2) The center of the front sliding plate is equipped with an SM1 (1.035″-40) threaded hole and comes with 2 SM1 retaining rings, facilitating the mounting of Ø1 inch optical components up to 8.6mm thick. The fixed back plate features a smooth hole for easy installation and operation. The front plate is secured to the back plate by two locking screws, which can be tightened with a 2mm hex wrench to fix the position.

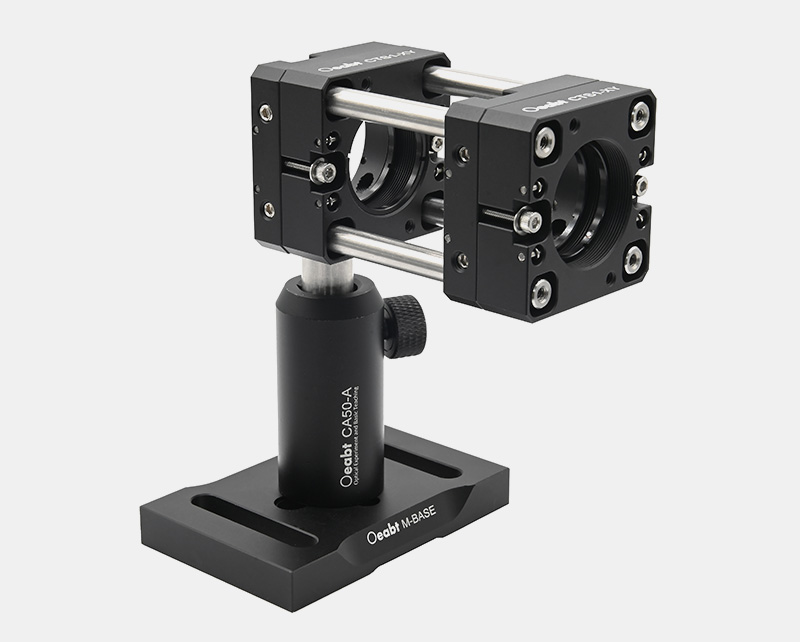

(3) The stage is machined with 4 through-holes, compatible with PCM series Ø6mm cage rods, thus matching our 30mm cage systems. For additional mounting options, the bottom of the back plate is also provided with an M4 threaded hole, suitable for mounting to Ø12mm rods.

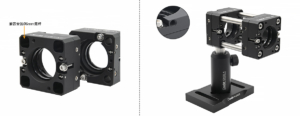

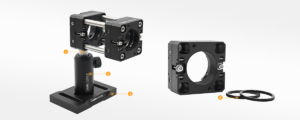

Assembly

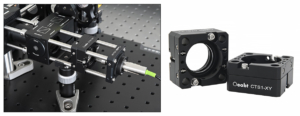

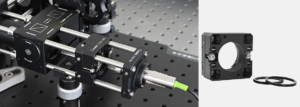

Application Examples
