Description
Product Description
- Mounting bracket for installing optical-mechanical components at a 90° angle;
- Suitable for installing cage assemblies and lens tube series in limited spaces;
- Integrated aluminum structure with excellent rigidity;
- 4-40, M4, and M6 threaded holes provide numerous mounting options;
The two mounting surfaces of the CST-90 angle bracket are mutually perpendicular at 90°, making it ideal for optical-mechanical systems that require vertical installation of optical components and subsystems. The integrated aluminum structure is a perfect choice for building stable three-dimensional optical-mechanical assembly structures.
| Model | CST-90 |
| Specification | 88.9*76.2*76.2mm |
| Threaded Hole Type | Front panel: 1 position of SM21, 16 positions of M6, 4 positions of M4, 4 positions of 4-40Side panel: 1 position of SM11, 8 positions of M6, 4 positions of M4, 2 positions of 6.7*3.8 (slotted holes)Bottom panel: 1 position of M6, 2 positions of M4 (countersunk holes) |
| Weight | 246.2g |
| Material | 7075 Aluminum Alloy |
(1) The two mounting surfaces of the CST-90 angle bracket are at 90° to each other, making it highly suitable for optical-mechanical systems that require vertical installation of optical components and subsystems. The integrated aluminum structure is an ideal choice for constructing stable three-dimensional optical-mechanical assembly structures. It can be used with already installed optical-mechanical components or as a support for larger structures.

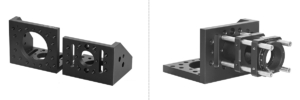

Both mounting panels are equipped with threaded through holes, including one SM1 and one SM2 threaded hole. They are directly compatible with SM series threaded components, such as our lens tube series. Additionally, the 4-40 threaded holes on the mounting panels can be integrated with 30mm and 60mm cage structures.

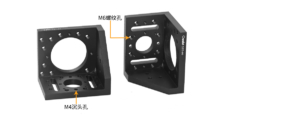

The front, side, and bottom surfaces are provided with arrays of commonly used M4 and M6 threaded holes, facilitating easy installation on optical platforms. The angled panel is equipped with two M4 countersunk holes and one M6 threaded hole, further enhancing its versatility.

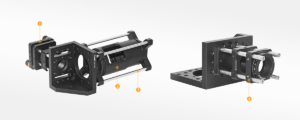

Assembly

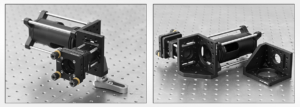

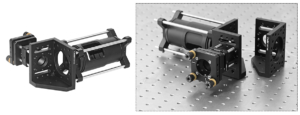

Application Examples
