Description
Product Description
- Supports cage assemblies with posts; compatible with 30 mm or 60 mm cage systems
- Snap-in design for easy installation and removal
- Flexible slot locking design for secure locking onto Ø6 mm cage rods
- Mounts to a post via counterbored holes / counterbored slots with M4 screws
These cage mounting brackets feature a snap-in design for mounting posts to 30 mm / 60 mm cage systems. The flexible design allows quick snapping onto two Ø6 mm cage rods for easy installation and removal without disassembling the cage system. Slide the bracket into position and tighten the set screws on the side to lock it in place.
| Model | CSK-30 | CSK-60 |
| Dimensions | 40.6×14.0×10.5 mm | 70.7×14.0×10.6 mm |
| Application | 30 mm cage system | 60 mm cage system |
| Counterbored Hole/Slot | Ø4.2 mm | Ø4.8×41.1 mm |
| Weight | 10.0 g | 20.2 g |
| Material | 7075 Aluminum Alloy | 7075 Aluminum Alloy |
Technical Description
(1) These cage mounting brackets feature a snap-in design for mounting posts to 30 mm / 60 mm cage systems. The flexible design allows quick snapping onto two Ø6 mm cage rods for easy installation and removal without disassembling the cage system. Slide the bracket into position and tighten the set screws on the side to lock it in place.

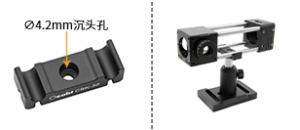

(2) The cage mounting brackets have a hole/slot in the center for post mounting. CSK-30 has a Ø4.2 mm counterbored hole and mounts to a post with an M4 cap screw.
(3) CSK-60 has a Ø4.8×41.1 mm counterbored slot for off-axis mounting with an adjustment range of ±20.5 mm. It mounts to a post with an M6 cap screw, allowing the post axis to be offset for cage rod installation.

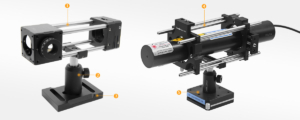

Assembly

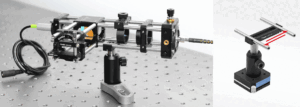

Application Examples
Engineering Drawings
