Description

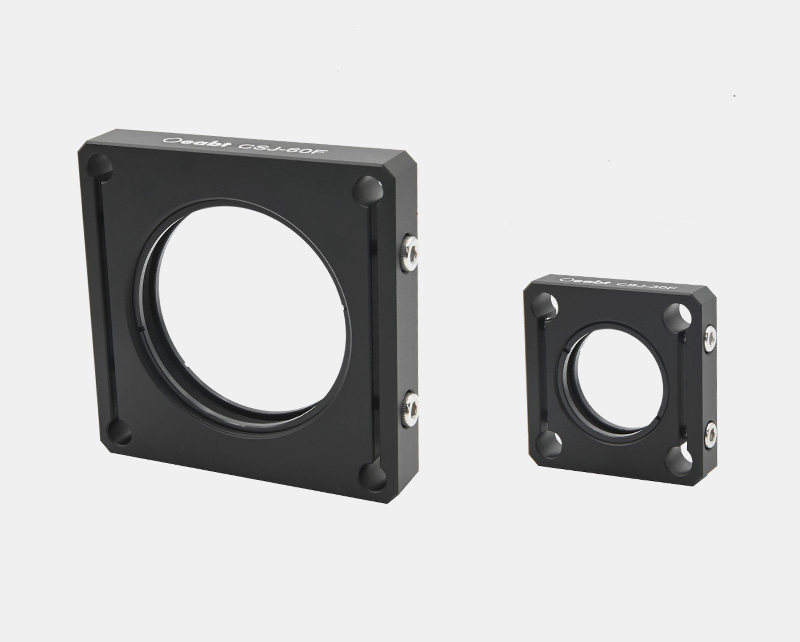

Product Description
- Threaded cage plates for mounting optical components into cage systems
- Equipped with SM1 or SM2 threads and 2 retaining rings
- Compatible with 30mm/60mm cage systems
- M4 threaded hole at the bottom for mounting to Ø12mm rods
Flexible cage plates with SM1 or SM2 threads serve as fundamental building blocks for securing optical components in cage systems.
| Model | CSJ-30F | CSJ-60F |
| Specification | 40.640.68.9mm | 71.171.112.7mm |
| Central Aperture | SM1 (1.035”-40) internal thread | SM2 (2.035”-40) internal thread |
| Compatible Cage | 4 x Ø6.02mm, 30mm spacing | 4 x Ø6.02mm, 60mm spacing |
| Weight | 23.1g | 96.7g |
| Threaded Hole Type | 1 x M4 | 1 x M4 |
| Material | 7075 Aluminum Alloy | 7075 Aluminum Alloy |
(1) The CSJ-30F features SM1 (1.035″-40) internal threads and is compatible with Ø1 inch optical components and SM1 sleeves. The CSJ-60F is equipped with SM2 (2.035″-40) internal threads, suitable for Ø2 inch optical components and SM2 sleeves. Each cage plate comes with 2 retaining rings for safe and secure fixation of optical components.
(2) Set screws are provided on the sides of the cage rod through-holes. A 2.5mm hex wrench (for CSJ-30F) or a 3mm hex wrench (for CSJ-60F) allows the cage plate to be quickly locked at any position on the cage rod.

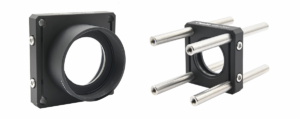

(3) Acting as fundamental building blocks for mounting components on cage rods, the CSJ-30F is compatible with 30mm cage systems, and the CSJ-60F with 60mm cage systems.

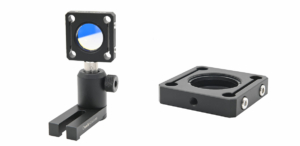

(4) A single M4 threaded hole is provided at the bottom of the plate body, which can be directly mounted to Ø1/2 inch or Ø12mm rods.、

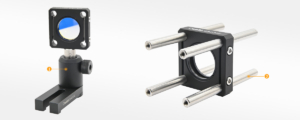

Assembly

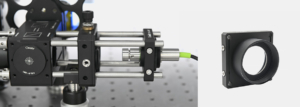

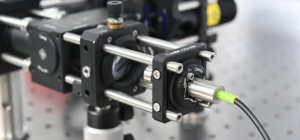

Application Examples
