CSJ-30T Series 30 mm Array Cage Plate
CSJ-30T Series 30 mm Array Cage Plate
Price range: $27.00 through $32.40
Description
Product Description
- Multi-position array design for mounting multiple optical components simultaneously
- Enables quick construction of optical systems requiring folded light paths
- Accepts Ø1-inch optical components with a maximum thickness of 4.5 mm

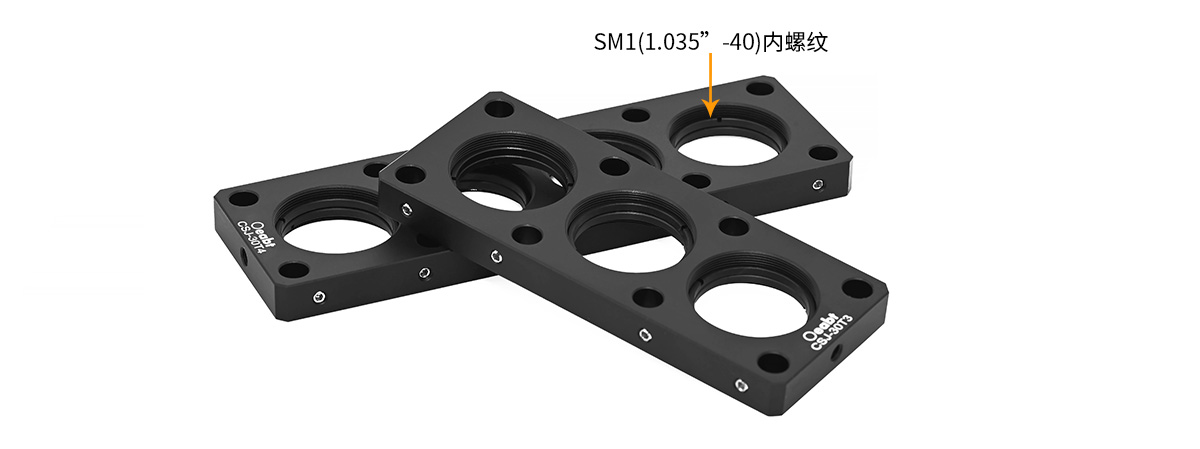

- Equipped with SM1 (1.035″-40) internal threaded holes
- Compatible with 30 mm cage systems
The CSJ-30T series cage plates feature a modular array design, allowing 2/3/4 cage components to be integrated side-by-side in an array into our 30 mm cage systems.
| Specification | CSJ-30T3 | CSJ-30T4 |
|---|---|---|
| Dimensions | 101.0×41.1×8.9 mm | 131.0×41.1×8.9 mm |
| Number of Positions | 3 | 4 |
| Central Aperture | SM1 (1.035″-40) internal thread | SM1 (1.035″-40) internal thread |
| Mountable Thickness | Ø1-inch optical components with thickness ≤4.5 mm | Ø1-inch optical components with thickness ≤4.5 mm |
| Through-Hole Spacing | Ø6.1 mm through holes, 30×30 mm spacing | Ø6.1 mm through holes, 30×30 mm spacing |
| Threaded Hole Type | 2×M4 threaded holes | 2×M4 threaded holes |
| Weight | 57.0 g | 73.5 g |
| Material | 7075 Aluminum Alloy | 7075 Aluminum Alloy |
Technical Description
(1) The CSJ-30T series cage plates adopt a modular array design, which allows 2/3/4 cage components to be integrated side-by-side in an array into our 30 mm cage systems. This design enables convenient and flexible mounting as well as rapid alignment, making the plates particularly suitable for constructing optical systems that require folded light paths.
(2) The cage plates are machined with SM1 (1.035″-40) internal threads, which can mount Ø1-inch optical components with a maximum thickness of 4.5 mm or other SM1-threaded components. Two CSK3 retaining rings are included for each hole position to secure the optical components in place.
(3) One set screw is located on the side of each cage rod through-hole and can be tightened with a 2.0 mm screwdriver or wrench to provide a rigid connection for the cage subsystem. In addition, one M4 threaded hole is provided at both the top and bottom ends for mounting optical posts.

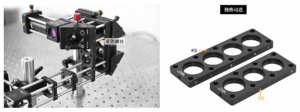

Assembly

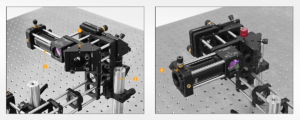

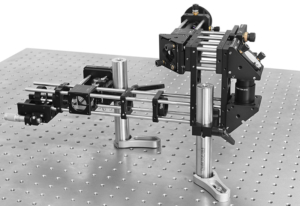

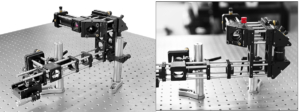

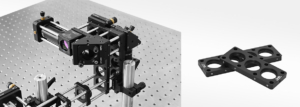

Application Examples
Engineering Drawings
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Model | CSJ-30T4, CSJ-30T3 |
