Description
Product Description
- Ø4mm stainless steel cage rods
- For 16mm miniature cage systems
- Non-detachable 4-40 stud on one end
- Length range from 1/2 inch to 3 inches
- Rods can be continuously spliced for extended length

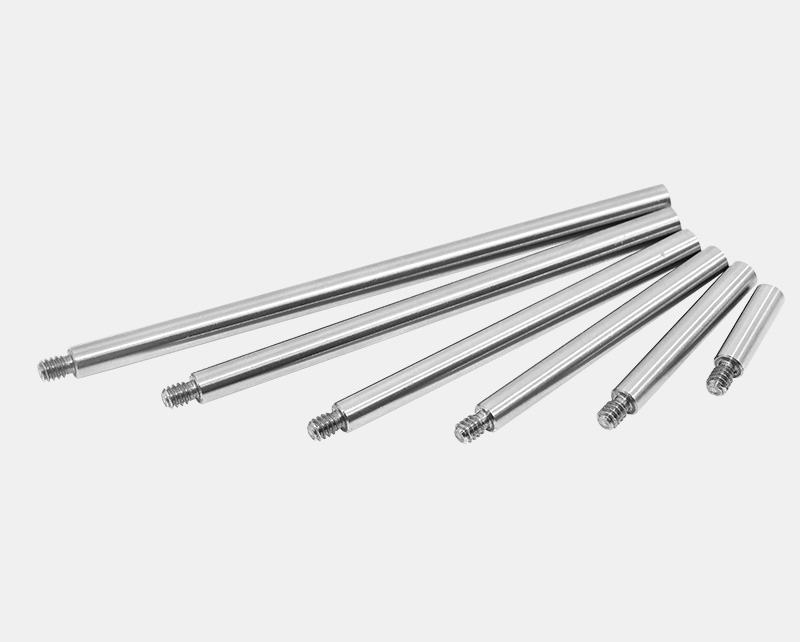

The Ø4mm rods are fundamental building blocks for constructing optical systems. Multiple cage rods can be joined together and applied to 16mm cage systems, facilitating the setup of experimental applications.
| Model | SPCM-E0.5 | SPCM-E1 | SPCM-E1.5 | SPCM-E2 | SPCM-E2.5 | SPCM-E3 |
|---|---|---|---|---|---|---|
| Diameter | ∅4mm | ∅4mm | ∅4mm | ∅4mm | ∅4mm | ∅4mm |

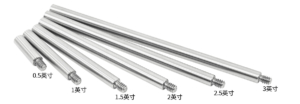

| Length | 0.5 inch | 1 inch | 1.5 inches | 2 inches | 2.5 inches | 3 inches |
| Thread Type | 4-40 stud on one end, 4-40 threaded hole on the other | 4-40 stud on one end, 4-40 threaded hole on the other | 4-40 stud on one end, 4-40 threaded hole on the other | 4-40 stud on one end, 4-40 threaded hole on the other | 4-40 stud on one end, 4-40 threaded hole on the other | 4-40 stud on one end, 4-40 threaded hole on the other |
| Weight | 0.9g | 2.0g | 3.2g | 4.5g | 5.9g | 7.0g |
| Material | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
Technical Description
SpecificationsLength: 2.5 inches

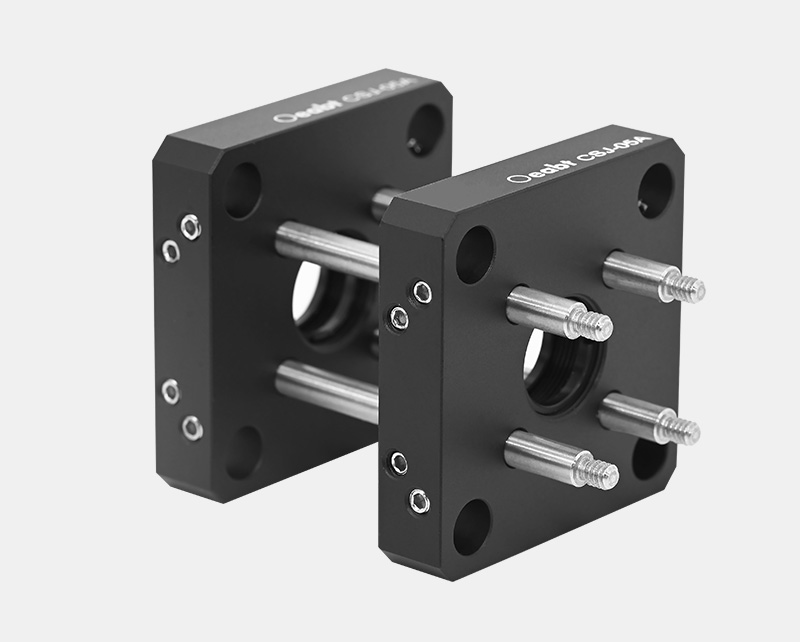

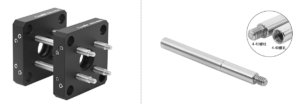

(1) The Ø4mm rods are fundamental building blocks for constructing optical systems. These cage rods are commonly used as guide rods for cage plates, featuring a non-detachable 4-40 stud on one end and a 4-40 threaded hole on the other. This design allows multiple cage rods to be joined together for use in 16mm cage systems, simplifying the construction of experimental setups.
(2) Available in a wide range of length specifications.

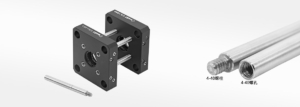

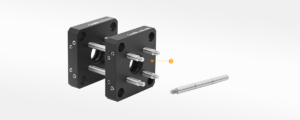

Assembly
Application Examples
Engineering Drawings
