Description
Product Description
- Enables easy access and operation of optical elements without disassembly.
- Features a 360° rotatable dustproof sliding cover to protect optical elements.

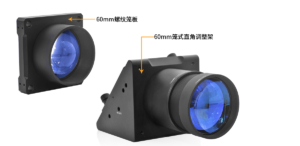

- Compatible with 60 mm cage systems; stackable design for building multi-component optical systems.
These lens tubes are ideal for constructing compact optical systems with light-shielded light paths. The CSA2V series has two open access slots, allowing simple and fast setup of complex optical assemblies and adjustment of optical elements without disassembly.
| Common Parameters | |
| Diameter | Ø59.7 mm |
| Thread Type | SM2 (2.035”-40) internal and external thread |
| Material | 7075 Aluminum Alloy |

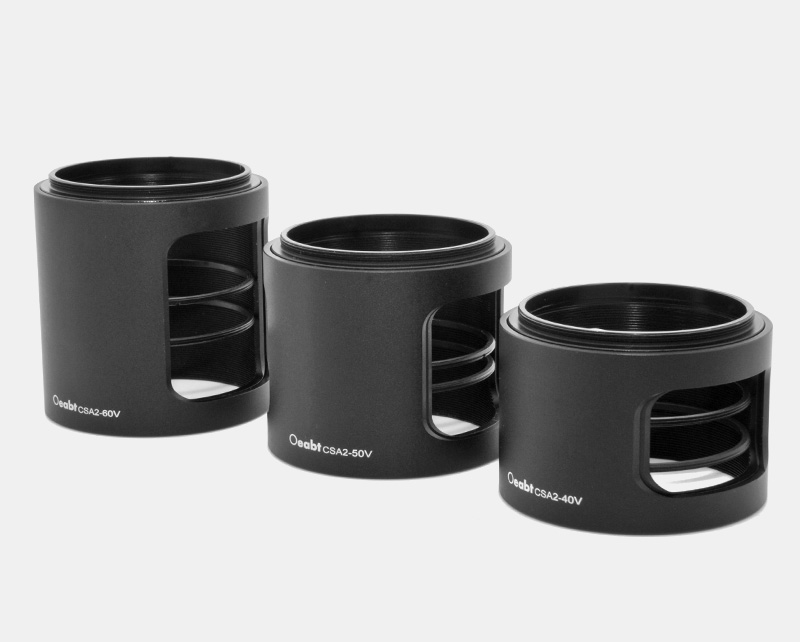

| Model | Specifications |
| CSA2-40V | Dimensions: Ø59.7×43.8 mm; Tube body height: 40 mm; Weight: 60.1 g |
| CSA2-50V | Dimensions: Ø59.7×53.8 mm; Tube body height: 50 mm; Weight: 69.0 g |
| CSA2-60V | Dimensions: Ø59.7×63.8 mm; Tube body height: 60 mm; Weight: 79.8 g |
Technical Description
These lens tubes are ideal for building compact optical systems with lightshielded paths. The CSA2V series features two open access slots for quick, easy setup of complex optical assemblies, allowing optical element adjustment without disassembly. Mount the optical element to the desired depth using the supplied 2×CSK4 retaining rings, then secure with the second ring.
The lens tube includes a 360° rotatable sliding cover that can be opened or closed from any direction. It blocks stray light and prevents dust and contamination.
Optical elements can be manually adjusted through the side access slots without disassembly. No retaining ring wrench is required for convenient operation.

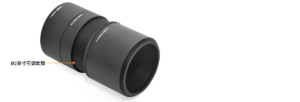

One end of the tube has a 3.8 mm external thread for direct stackable connection between tubes. It also mates directly with SM2 (2.035”40) threaded components, providing flexibility for complex optomechanical setups.
Assembly

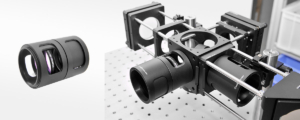

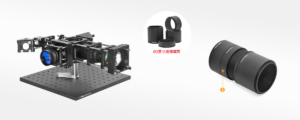

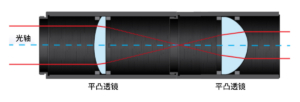

Application Examples
Engineering Drawings
