Description

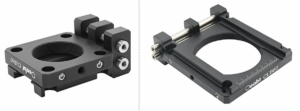

Product Description
- For mounting cylindrical lenses or rectangular optical components
- Compatible with 30mm or 60mm cage systems
- Clamping height: 4.0mm-19mm for CLB30, 4.0mm-48mm for CLB60
- Independently movable mounting arms with 1mm interval scale for centering assistance
- With SM1 or SM2 internal threads for sleeve installation
- M4 threaded hole at the bottom for rod mounting

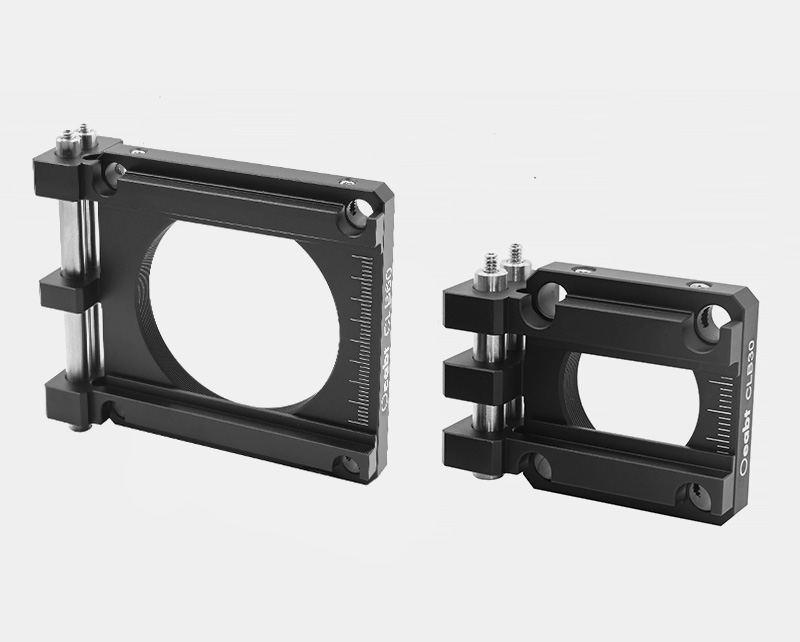

This cylindrical lens mount is designed for horizontal or vertical fixation of cylindrical lenses or rectangular optical components in 30mm or 60mm cage systems.
| Model | CLB30 | CLB60 |
| Dimension | 53.3*50.8*23.6mm | 83.8*71.1*23.6mm |
| Clamping Size | 4.0mm-19mm | 4.0mm-48mm |
| Central Aperture | SM1 (1.035”-40) internal thread | SM2 (2.035”-40) internal thread |
| Through-hole Spacing | 4 x Ø6.02mm, 30mm spacing | 4 x Ø6.02mm, 60mm spacing |
| Weight | 52.0g | 114.1g |
| Threaded Hole Type | 1 x M4 | 1 x M4 |
| Material | 7075 Aluminum Alloy | 7075 Aluminum Alloy |
Technical Description

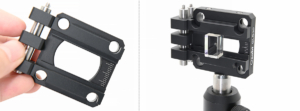

(1) Place the cylindrical lens between the two sliding arms and fit it against the edge of the convex step, then adjust the distance between the sliding arms to clamp the component. The side of the cage plate is marked with scales for centering assistance, with major scale intervals of 5mm and minor scale intervals of 1mm. Note: The cage plate is fixed with adhesive and cannot be moved; only the sliding arms can be translated.
(2) For mounting taller components, longer cage rods can be used for the side cage rods. (Note: Avoid overlapping between the sliding arms and through-holes, otherwise the mount cannot be used in the cage system.)

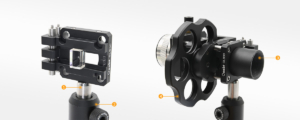

(3) The cage plate is equipped with centering scales (5mm major intervals, 1mm minor intervals) and an M4 threaded hole at the bottom for rod mounting.
(4) CLB30: The central hole features SM1 (1.035″-40) internal threads, compatible with Ø1 inch lens sleeves and SM1 threaded components. CLB60: The central hole features SM2 (2.035″-40) internal threads, compatible with Ø2 inch lens sleeves and SM2 threaded components.
Assembly

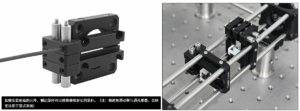

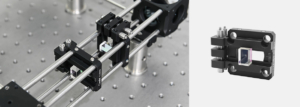

Application Examples
Engineering Drawings
