Description

Product Description

  • Compatible with Ø25mm rods.
  • Removable right-angle bracket with multiple counterbores and counterbore slots.
  • Equipped with a quick-release handle for fast fixation to the rod.
  • CJP-A25 rod clamps can be purchased separately.

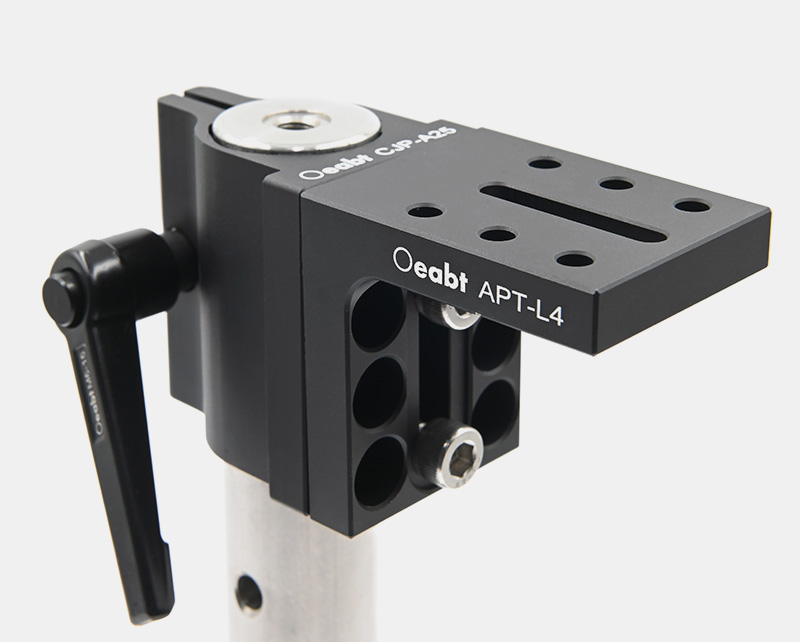

Based on Ø25mm rods as the installation foundation, it provides a horizontal mounting bracket and a height-adjustable clamp platform, whose position can be locked with a quick-release handle.

ModelCJPA25-L4
Dimensions98.2*57.5*50.8mm
Compatible RodØ25mm rod
Thread TypeTop plate: 6x M4 counterbores, 1x Ø6.525.4mm slot; Side plate: 6x M6 counterbores, 1x Ø4.525.4mm counterbore slot
Weight167.5g
Material7075 aluminum alloy



ModelCJP-A25
Dimensions54.4*48.2*50.8mm
Compatible RodØ25mm rod
Thread Type4x M4, 2x M6
Weight100.5g
Material7075 aluminum alloy

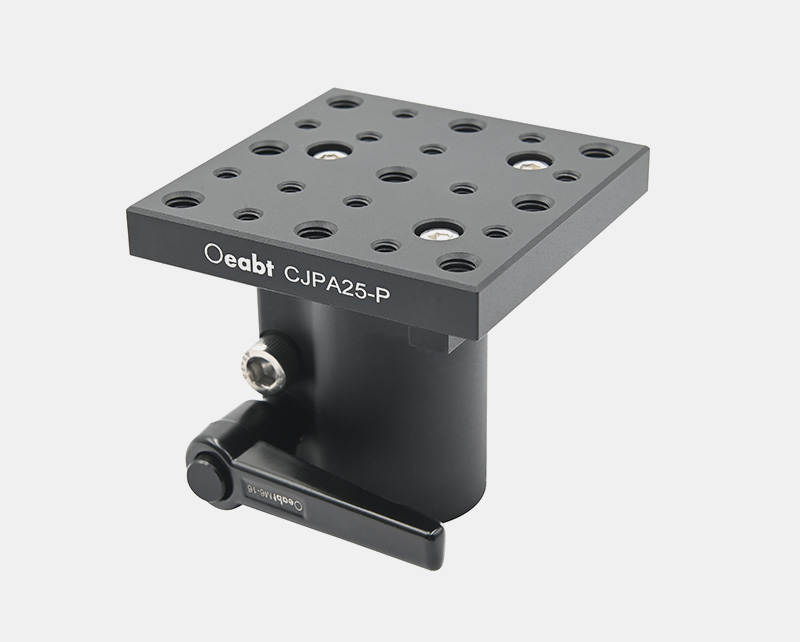

ModelCJPA25-P
Dimensions63.5*63.5*59.7mm
Compatible RodØ25mm rod
Thread Type13x M4, 9x M6
Weight144.5g
Material7075 aluminum alloy

Technical Description

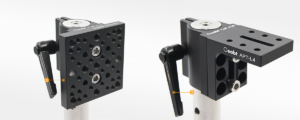

Both platforms provide a rigid base as an intermediate interface connecting optical components and rod systems. The CJPA25-L4 features a removable right-angle bracket with no restriction on the installation height on the rod. The CJPA25-P can only be installed on the top of the rod, offering a height adjustment range of 44mm.

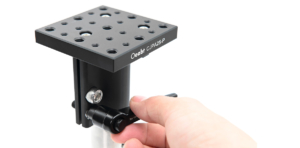

Includes a quick-release handle for fixing the clamp to the rod; the assembly can be engaged by simply rotating the handle. The internal mechanism is designed to adjust the rotation position of the handle without using bolts.

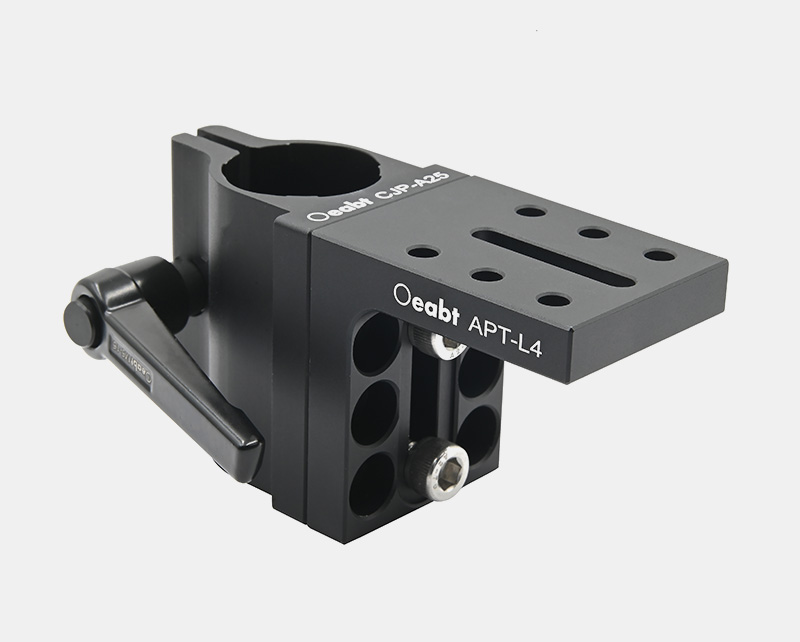

The removable right-angle bracket offers a range of installation options, including 6 M4 counterbores and 1 M4 through-hole slot, and the bracket can also be installed in reverse.

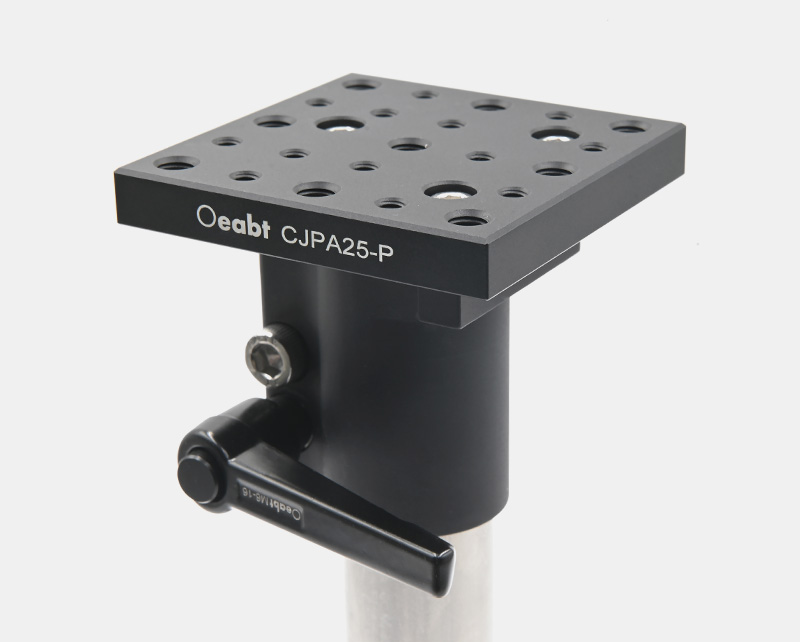

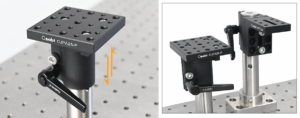

Provides 44mm height adjustment at the top of the rod; Note: The clamp must grip at least 6.5mm of the rod for stable installation. The multi-threaded hole array enables a horizontal mounting platform for the rod.



Assembly

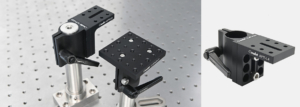

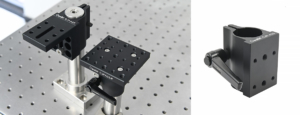

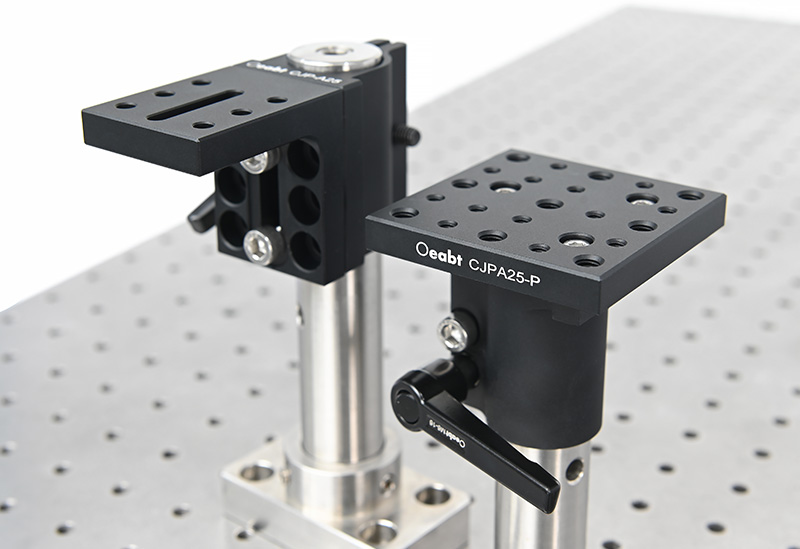

Application Example
