Description
Product Description
- Ø25mm solid non-magnetic stainless steel support rods.
- Can install mirror mounts or breadboards using adapter screws of different specifications.
- 6mm threaded hole allows tools to provide additional force during tightening.
- Columnar rods offer strong support in optical setups.
- M6 threaded holes at both ends for direct installation on optical platforms, standard bases, or optical mounts.

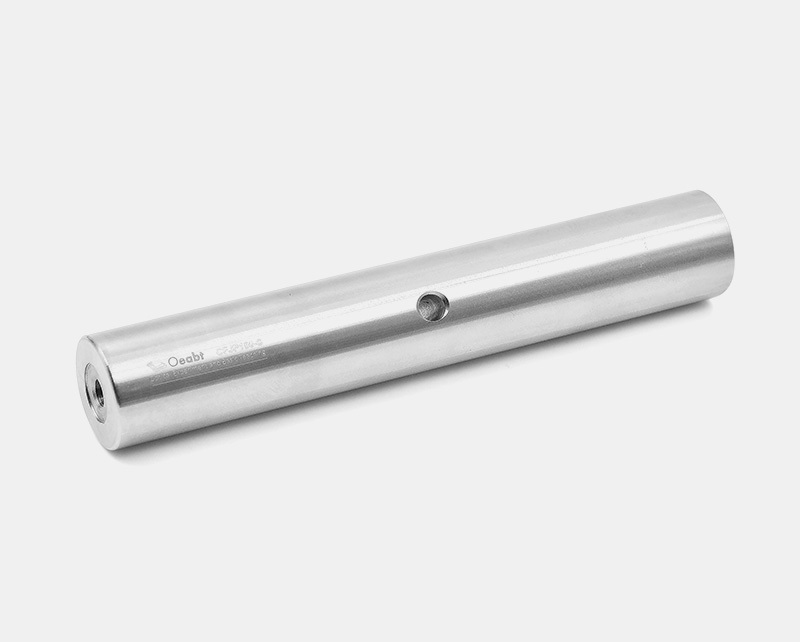

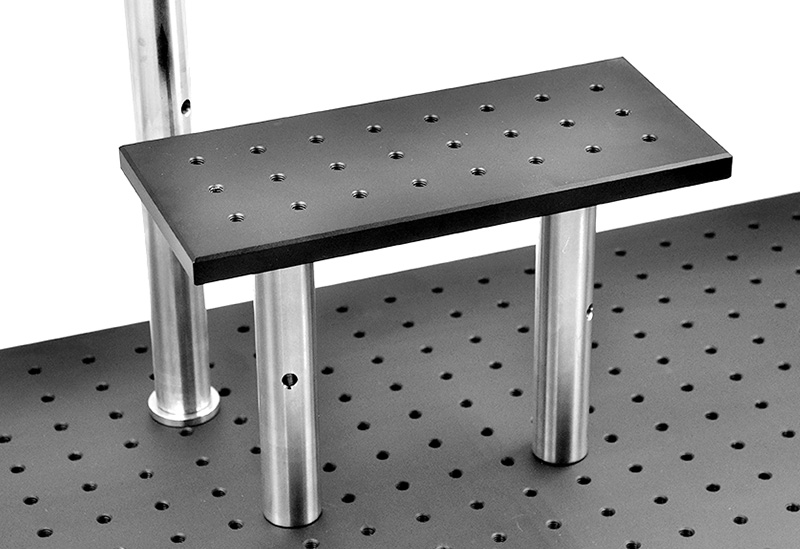

Columnar rods provide robust support in optical devices. By leveraging the rigidity and high stability of these Ø25mm stainless steel rods, support structures of any height can be constructed. Each rod features M6 threaded holes at both ends for direct installation on optical platforms, standard bases, or optical mounts. These rods are made of non-magnetic 304 stainless steel.
| Model | Specifications |
| CFJP100-S | Dimensions: Ø25*100mm; Weight: 372.3g; Material: 304 stainless steel |
| CFJP150-S | Dimensions: Ø25*150mm; Weight: 563.4g; Material: 304 stainless steel |
| CFJP200-S | Dimensions: Ø25*200mm; Weight: 756.1g; Material: 304 stainless steel |
| CFJP250-S | Dimensions: Ø25*250mm; Weight: 852.45g; Material: 304 stainless steel |
| CFJP300-S | Dimensions: Ø25*300mm; Weight: 1139.4g; Material: 304 stainless steel |
Technical Description

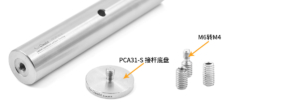

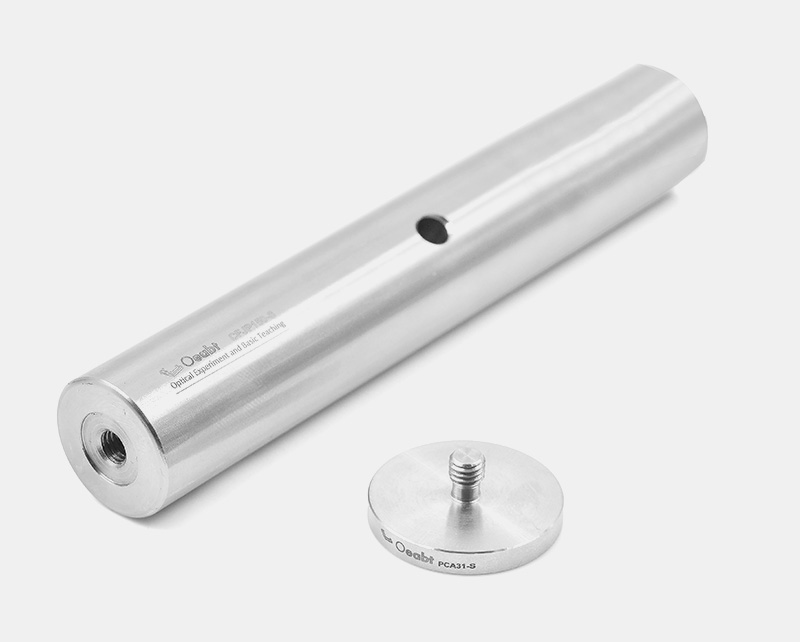

Can be used with our PCA31-S rod base for easy disassembly and installation; M6-to-M4 adapter screws enable installation on optical platforms, standard bases, or optical mounts.

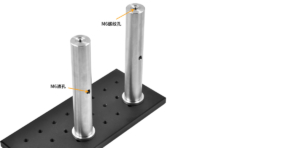

The M6 threaded hole at the top and the 6mm through hole in the middle of the rod allow tools to provide leverage for tightening.
Assembly
Manual assembly and installation
- Installation Methods:
- Can be used with our PCA31-S rod base for easy disassembly and installation.

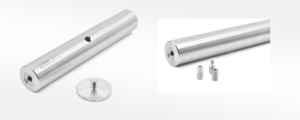

- M6-to-M4 adapter screws enable installation on optical platforms, standard bases, or optical mounts.
- The M6 threaded hole at the top and the 6mm through hole in the middle of the rod allow tools to provide leverage for tightening.
Application Example

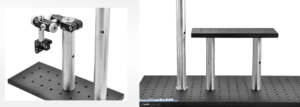

Oeabt offers optical support components of various sizes and functions, which play an irreplaceable role in free-space optical experiment adjustment and manual optical path calibration. They can arbitrarily install various optomechanical components with M4/M6 screws.
Engineering Drawing Download
