Description
Product Description
- Allows continuous 360° rotation
- Laser-engraved scale with 2° increments and alignment lines
- Mounting platform height: 16.1mm

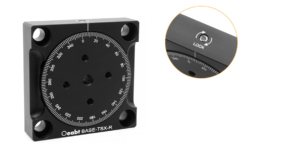

- Clamping mechanism for position locking via a side screw
This rotation base features a platform with continuous 360° rotation capability, making it ideal for opto-mechanical components requiring smooth, backlash-free rotation. The platform is engraved with an angular scale at 2° intervals, with numerical markings below the scale lines at every 20° for easy angular positioning of the platform.
| Model | BASE-TSX-R |
| Dimensions | 62.2×62.2×16.1mm |
| Rotation Range | 360° continuous rotation, 2° graduation |

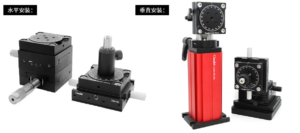

| Load Capacity | 110 lbs (50 kg) for horizontal mounting; 9 lbs (4 kg) for vertical mounting |
| Thread Type | 5×M4, 1×central M6, 4×Ø6.7mm countersunk holes |
| Weight | 151.6g |
| Material | 7075 Aluminum Alloy |
Technical Notes
The rotation base is equipped with a platform that enables continuous 360° rotation, which is perfectly suitable for opto-mechanical parts demanding smooth and backlash-free rotation. An angular scale with 2° increments is laser-engraved on the platform, and numerical labels are marked under the scale lines at each 20° to facilitate the setting of the platform’s angular direction. The rotation of the platform can be locked by tightening the side clamping screw with a 2.0mm hex wrench.

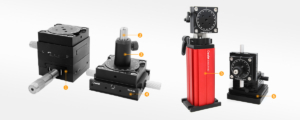

The rotating platform is designed with 4×M4 threaded holes and 1×central M6 threaded hole, which are used for mounting various opto-mechanical components.
Assembly

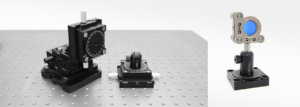

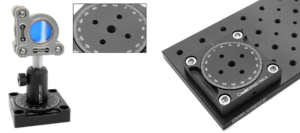

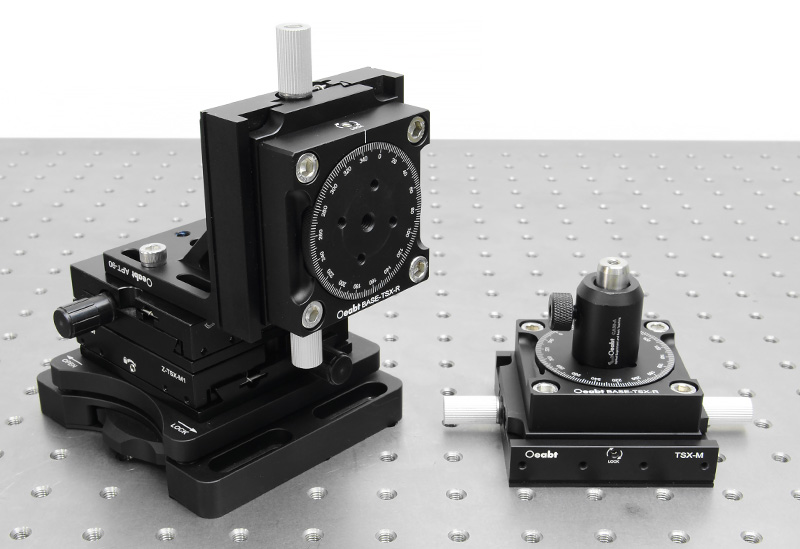

Application Examples
