Product Description
- Integrated aluminum structure with excellent rigidity;
- Suitable for optical path elevation and fixing numerous optical components;
- Equipped with M4 and M6 threaded holes with a standard hole spacing of 12.5mm;
- Dimensions: 50.04100.0mm;
- Can be used with M-BASE base (sold separately);
The APT-TB100 Brick-Shaped Mounting Block features both horizontal and vertical mounting capabilities. Five exposed surfaces are processed with arrays of mounting holes, suitable for installations of almost all sizes. It can be used with already installed optical-mechanical components to achieve the construction of optical path elevation, and also serves as a support for larger structures.
| Model | APT-TB100 |
| Specification | 50.037.4100.0mm |
| Threaded Hole Type | 96 positions of M6, 64 positions of M4, with a hole spacing of 12.5mm |
| Weight | 443.0g |
| Material | 7075 Aluminum Alloy |
(1) The APT-TB100 Brick-Shaped Mounting Block offers horizontal and vertical mounting functions. Five exposed surfaces are machined with arrays of mounting holes, making it suitable for installations of nearly all sizes. It can be used in conjunction with existing optical-mechanical components to construct optical path elevation setups and also functions as a support for larger structures.

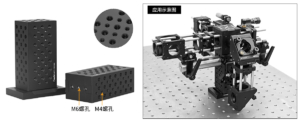

(2) The mounting block is machined from a single aluminum block, providing precise accuracy and rigidity. Each surface is processed with arrays of M4 and M6 threaded holes with a hole spacing of 12.5mm. Additionally, the M6 threaded holes at the bottom can be mounted onto the M-BASE base and securely fastened to the optical platform via countersunk holes.

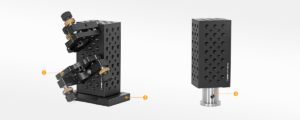

Assembly

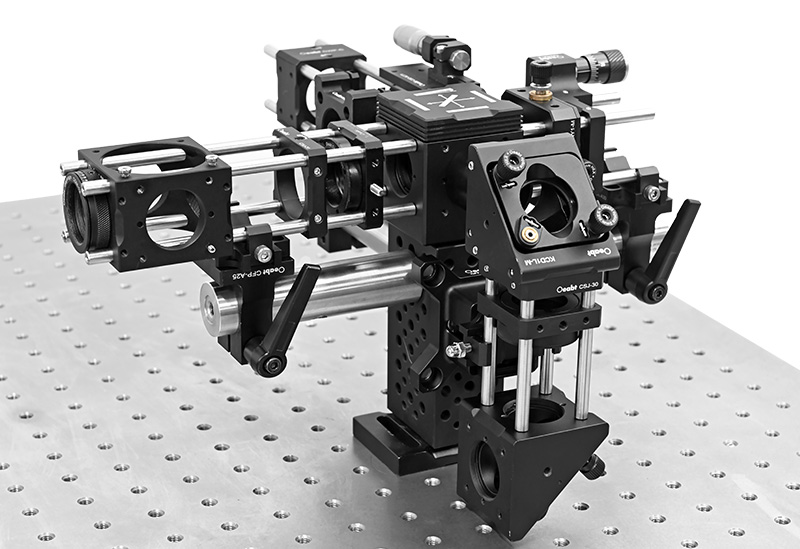

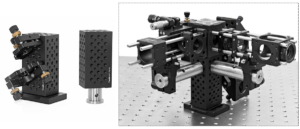

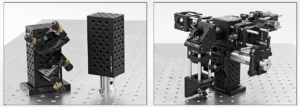

Application Examples
