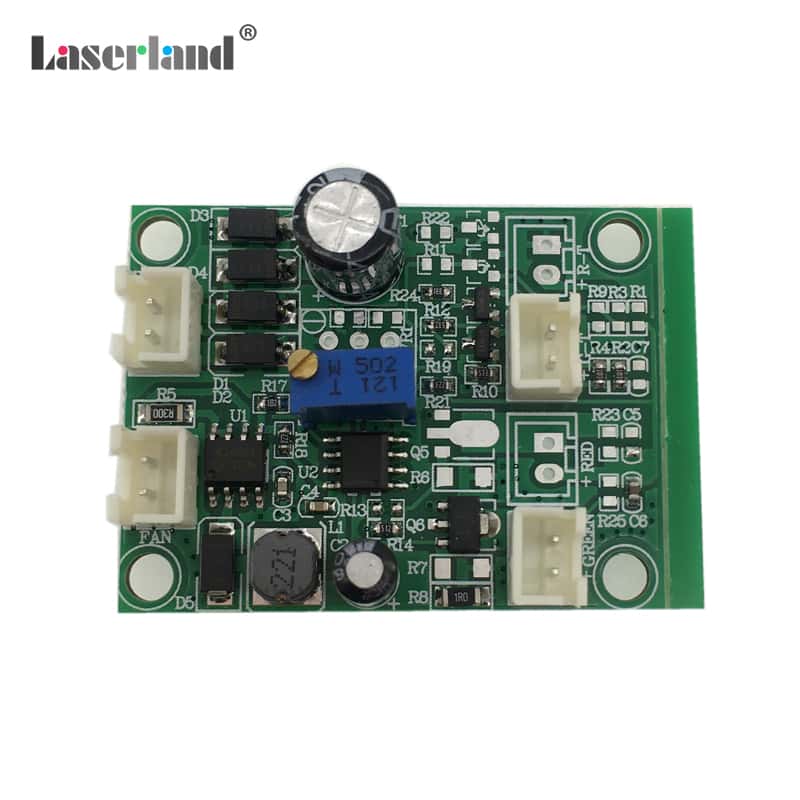

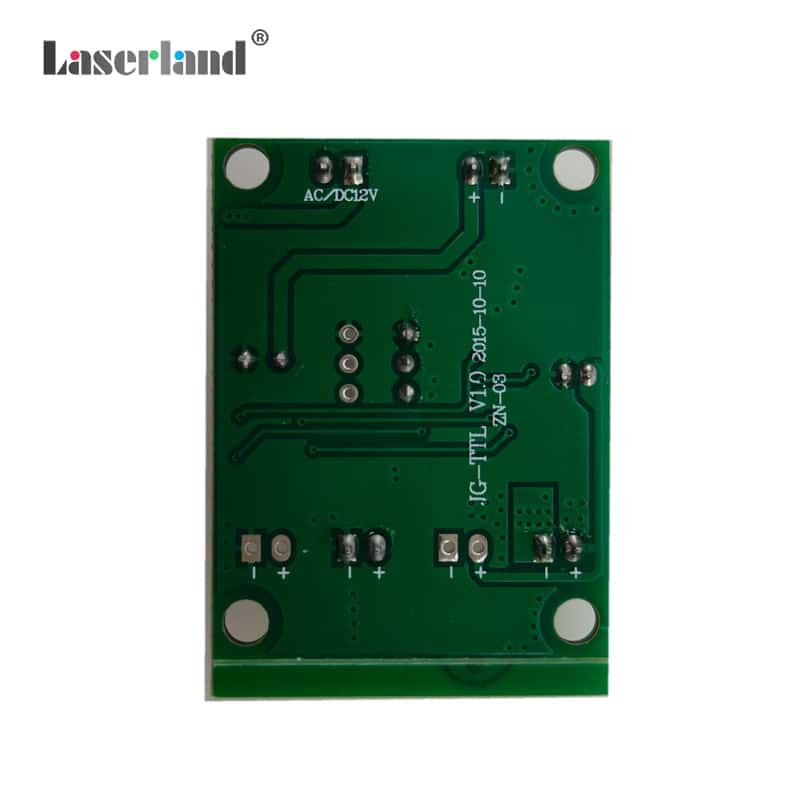

ACC Constant Power Laser Diode Driver Board with TTL 400-650nm 100mW-200mW

Description

ACC Constant Power Laser Diode Driver Board with TTL 400-650nm 100mW-200mW

The circuit board is a precision component. After receiving the package, it supports 7 days without reason to return the product without opening the original package. After the original package is opened, no return is provided. After sale, please consider whether you have the ability to install it manually before purchasing. Do not purchase if you do not have the ability to install! Our company does not provide trial play/trial loan/trial service. Thank you for understanding!

Product Information
Input Voltage: 12VDC
Output Current: 100-350mA
Terminal Type: PH2.5
Control Mode: ACC constant current and constant voltage drive with TTL

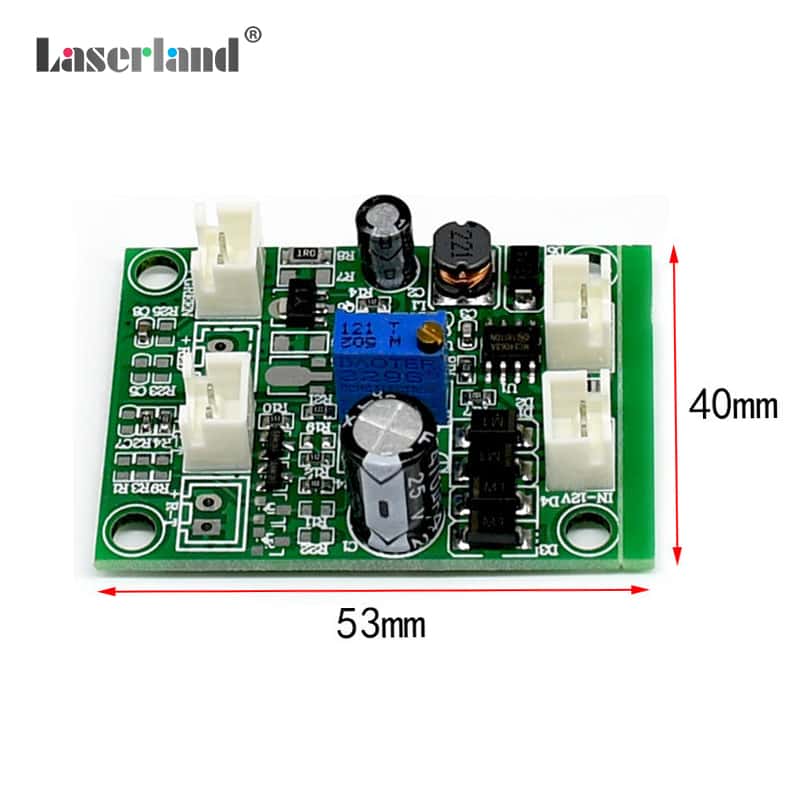

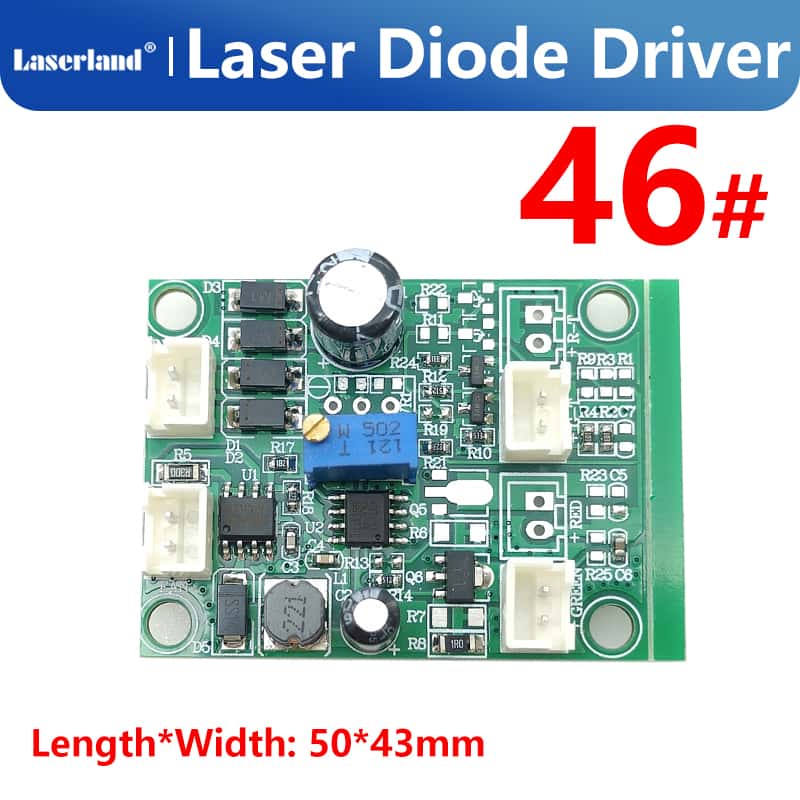

Length*Width: 50 * 43mm

Function:
1. Drive a 100mW-200mW, 400-650nm laser

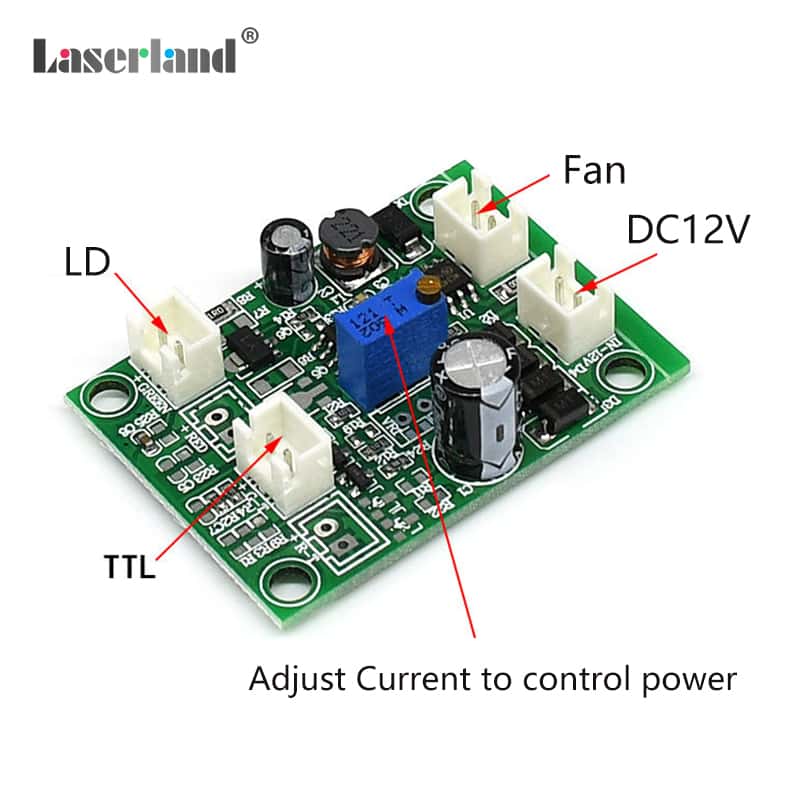

2. ACC constant current and constant voltage drive with TTL function
3. Current adjustable, input voltage 12V
4. This PCB is used for high-power lasers (red, green, and blue can be driven). It can be adjusted according to the driving voltage and current specified in the laser LD specification to achieve constant current and voltage and stable operation.

Note: The laser diode needs to have good heat dissipation to ensure the normal operation, and the circuit will automatically control the light output power of the laser diode.
