Description

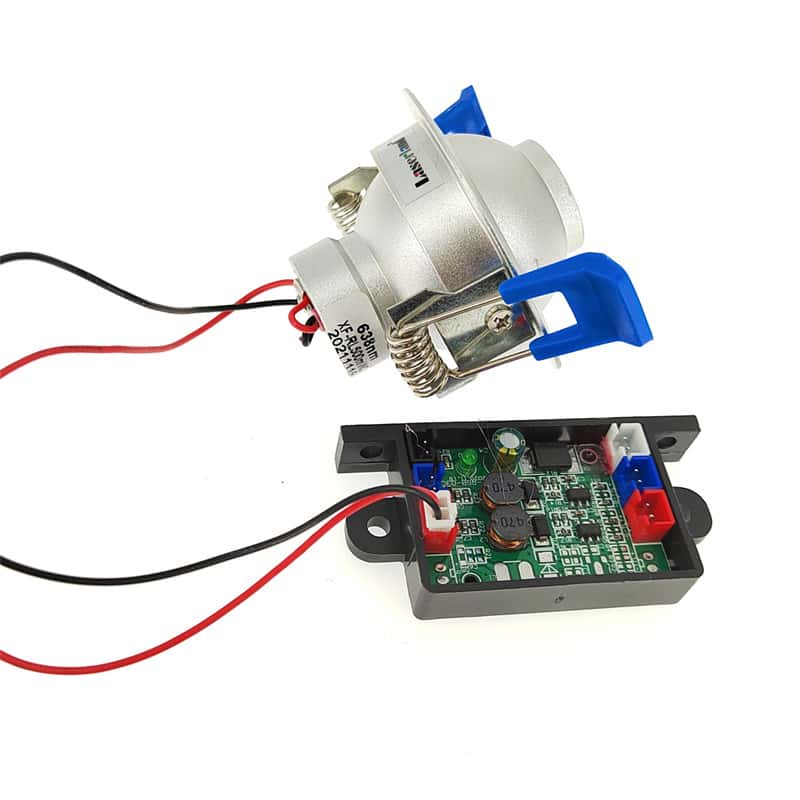

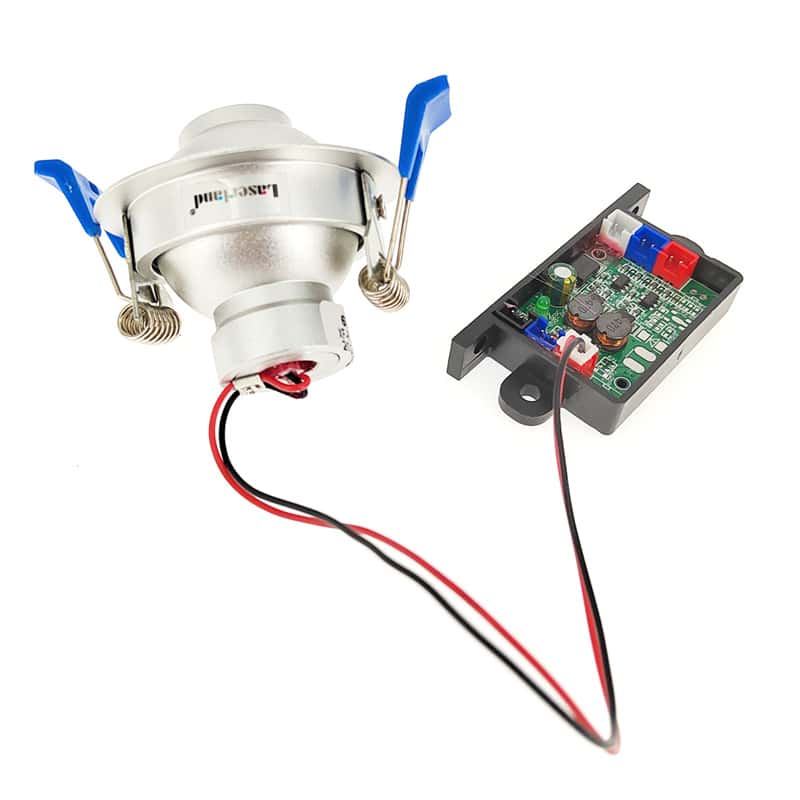

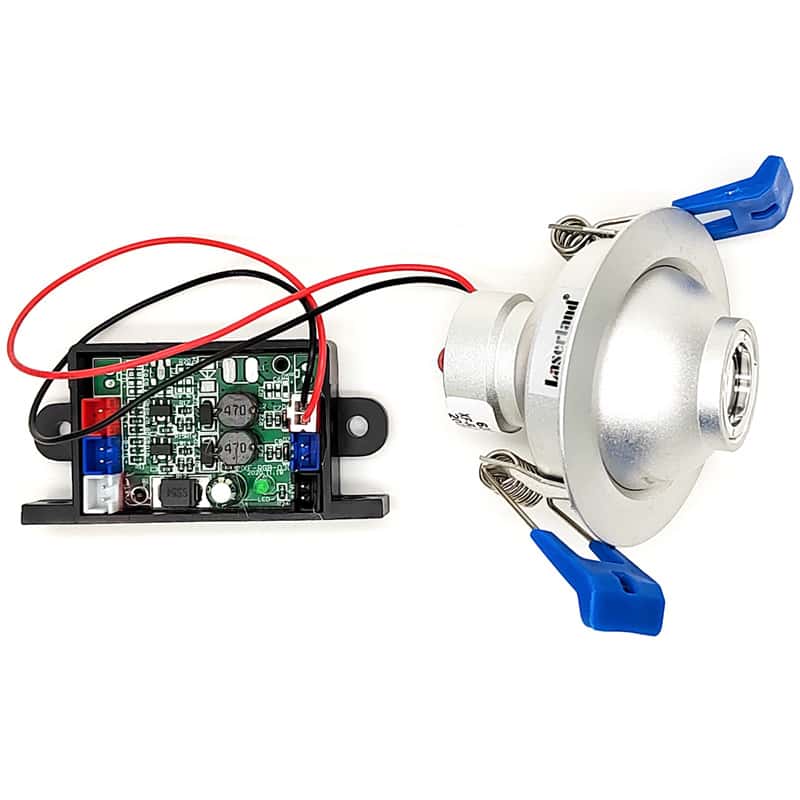

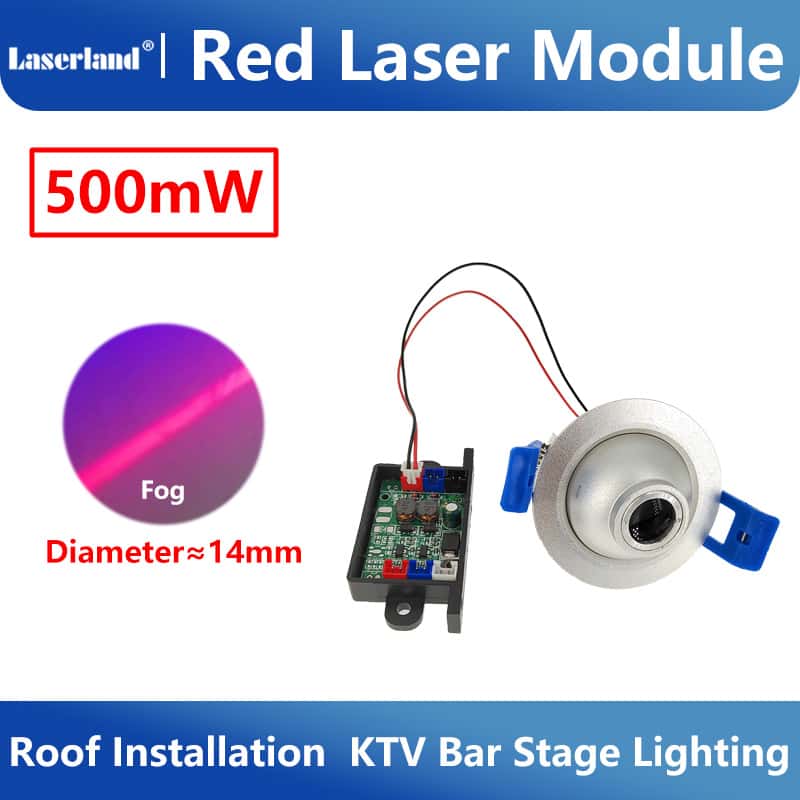

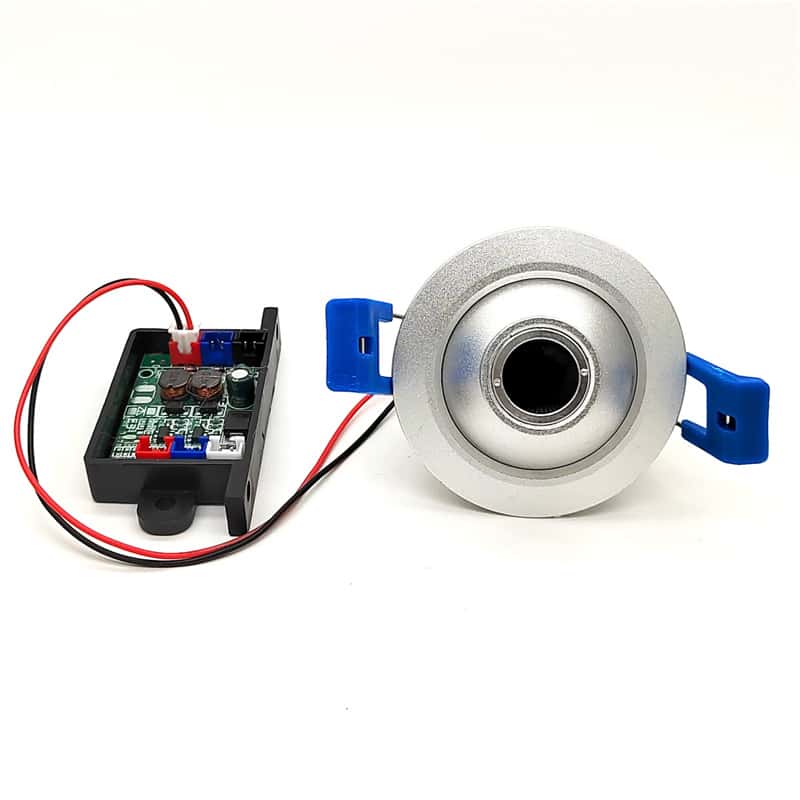

638nm 500mW Red Embeded Laser Head Bar KTV Ball Stage Light Laser Module TTL
Product parameters
（1）Product brand：Laserland
（2）Product name：Laser module
（3）Color：Red
（4）Wavelength：638nm
（5）Beam diameter：15mm
（6）Output power：500mW
（7）Operating temperature：12~32℃
（8）Operating voltage：（AC/DC）12V
（9）Modulation frequency：0 ~ 20kHz
（10）Service life：5000~8000 hours
（11）Laser size：Length：65mm | Outer diameter：62mm
（12）Mount hole requirement：＞ 55mm
（13）Power supply size：72 * 36mm
（14）Mount hole spacing：60mm
