3350 980nm 400mW Infrared Dot Laser Module with TTL
3350 980nm 400mW 12V Infrared Dot Laser Module with TTL
$74.98
44 in stock
44 in stock
Similar at ~980nm
- 3380 980nm 0.8W Infrared Dot Laser Module with TTL
- 18*45mm 980nm 30mW 60mW 120mW Infrared DOT Focusable Laser Module TTL
- 12*40mm 980nm 30mW 60mW 5V Infrared DOT Focusable Laser Module w/TTL 35khz 100khz
- 8*13mm 980nm 30mW 3.2V Infrared DOT Laser Module TTL Fine Focusable
Compatible accessories
- Heat-resistant Focusing Lens Focal Lens Plastic Lens 200℃ for 200-500mW Laser
- Heat-resistant Collimating Lens Focusing Lens Plastic Lens 200℃ for <500mW Laser
- Laser Alignment Card Double-frequency Card IR Detection Display Card 900-1100nm
- Polarizing Beam Splitter Refractor Optical Elements Cube 400-700nm Visible Light Triangular Prism
Related categories
- 980nm Laser Module (14)
- Laser Modules (183)
- DOE Grating Laser Module (13)
- 405nm Laser Module (12)
- 450nm Laser Module (21)
- 488nm Laser Module (3)
- 520nm Laser Module (47)
- 532nm Laser Module (21)
- 638nm Laser Module (17)
- 660nm Laser Module (52)
- 780nm Laser Module (5)
- 808nm Laser Module (8)
Description

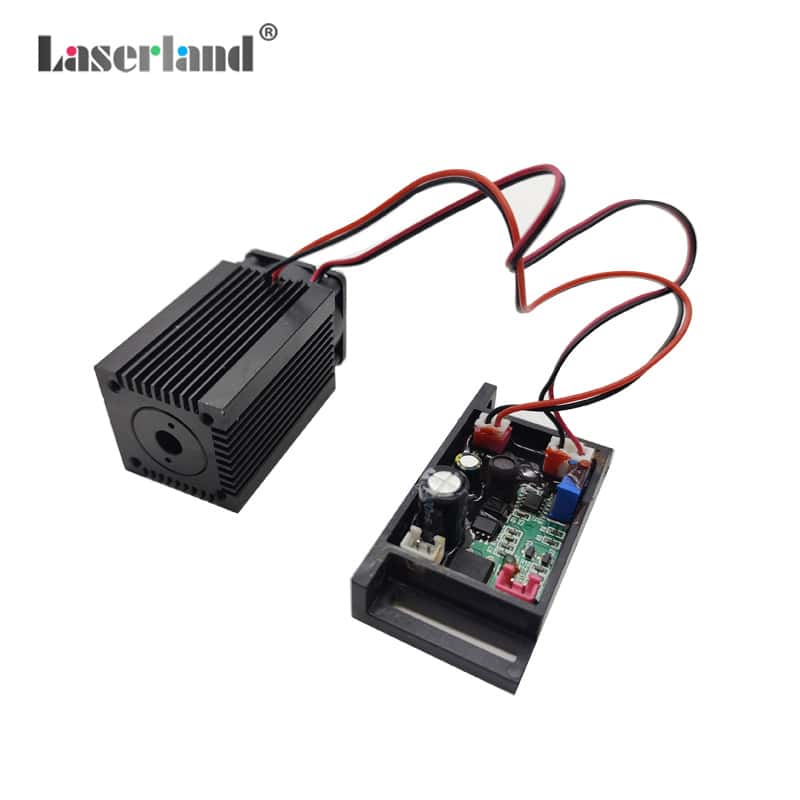

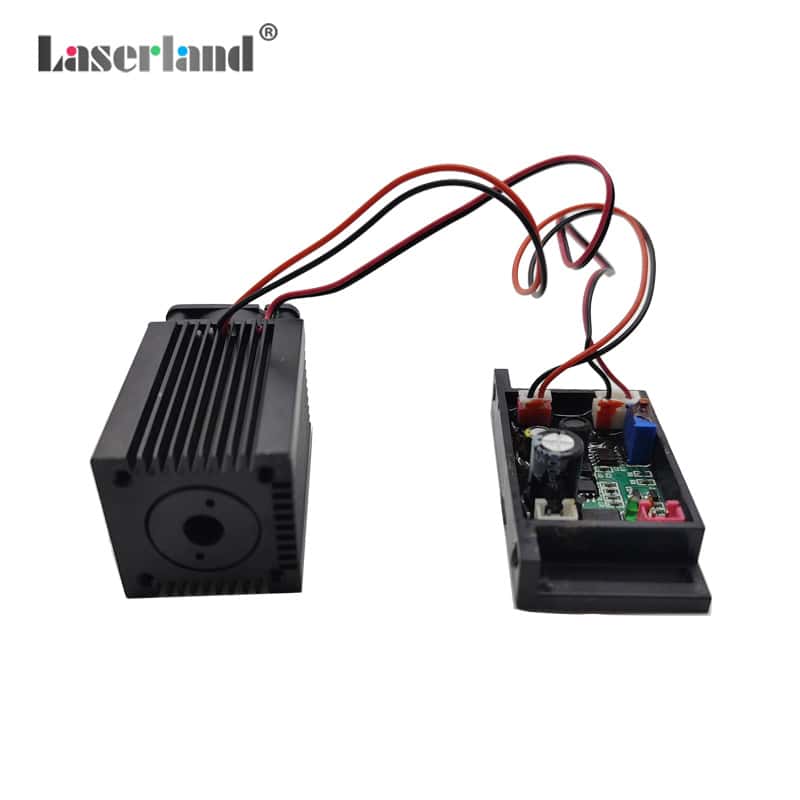

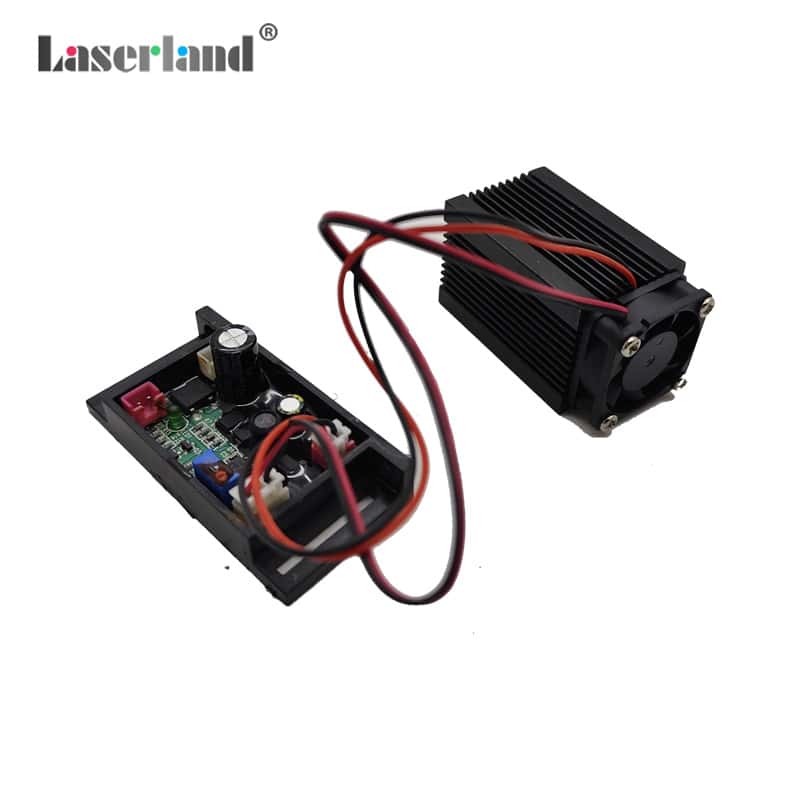

3350 980nm 400mW 12V Infrared Dot Laser Module with TTL
This Infrared laser diode is an industrial electronic component and used for as Industrial test, Lab, DIY.
This laser module can not work for a long time if there is no cooling device to keep the laser working under 30?.
Please add a 5VDC power to this laser module. Red wire connects”+” pole; Black wire connects “-” pole. TTL 3-5V on, 0V off. If you don’t use TTL, please just leave the blue and white wire.
This is a focusable laser module. Please do not take off the lens adjustable part off to avoid dust.
There is a potentiometer on the driver. You can turn it to adjust the power of the laser. Turn Clockwise to increase the laser power. Otherwise to decease the power. But the current can not surpass the current we have set up.
Please wear 980nm laser protection goggles to protect your eyes when working on this module.
Note:
The modules are tested and the output power are measured by laser power meter before sending out.
Please don’t compare the power of this one with a none-measured laser.
If you doubt the output, please have the laser you recieved checked by laser power meter.
If there is any problem, please feel free to contact us. We will solve the problem asap.
It is IR laser,the laser light cannot be seen by human bare eyes with only using DDC/infrared camera get it.
