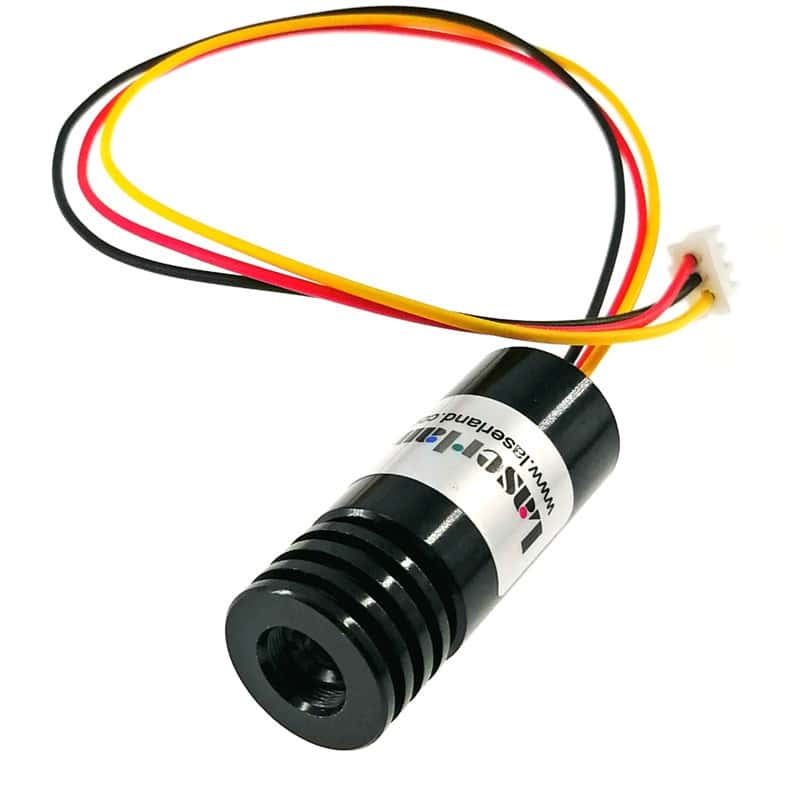

18*45mm 980nm 30mW 60mW 120mW Infrared DOT Focusable Laser Module TTL
18*45mm 980nm 30mW 60mW 120mW Infrared DOT Focusable Laser Module TTL
Price range: $9.18 through $26.58
Similar at ~980nm
- 12*40mm 980nm 30mW 60mW 5V Infrared DOT Focusable Laser Module w/TTL 35khz 100khz
- 8*13mm 980nm 30mW 3.2V Infrared DOT Laser Module TTL Fine Focusable
- 6*10 980nm 50mw IR Infrared Laser Diode Module
- 12*35mm 980nm 30mW IR DOT Focusable Laser Module
Compatible accessories
- Laser Alignment Card Double-frequency Card IR Detection Display Card 900-1100nm
- Polarizing Beam Splitter Refractor Optical Elements Cube 400-700nm Visible Light Triangular Prism
- Glass IR Filter Lens High transmittance 520-700nm Laser HB600
- 5pcs Laser Filter Blue Green Red 400nm-750nm blocked Infrared IR 700-1100nm pass through
Related categories
- 980nm Laser Module (14)
- Laser Modules (183)
- DOE Grating Laser Module (13)
- 405nm Laser Module (12)
- 450nm Laser Module (21)
- 488nm Laser Module (3)
- 520nm Laser Module (47)
- 532nm Laser Module (21)
- 638nm Laser Module (17)
- 660nm Laser Module (52)
- 780nm Laser Module (5)
- 808nm Laser Module (8)
Description
18*45mm 980nm 30mW 60mW 120mW Infrared DOT Focusable Laser Module TTL
Output Power: 30mW, 60mW, 120mW, 200mW
Wavelength: 980nm
Working Voltage: 5.0VDC
Working Temperature: -10 centi-degree~40centi-degree
Dimensions: ø18mm*45mm
Working current: <300mA
TTL: 0-5V
Frequency: 0-100KHz
Red wire for + pole, black wire for – pole, yellow wire for TTL + pole.
NOTE:
1. 100KHZ high frequency–quite different with the 35khz low frequency.
2. red wire for voltage + pole, black wire for voltage – pole. black wire also for TTL – pole
3. you have to add at least 1000khz signal on the yellow wire for TTL effect. if not, you cannot get the TTL effect
