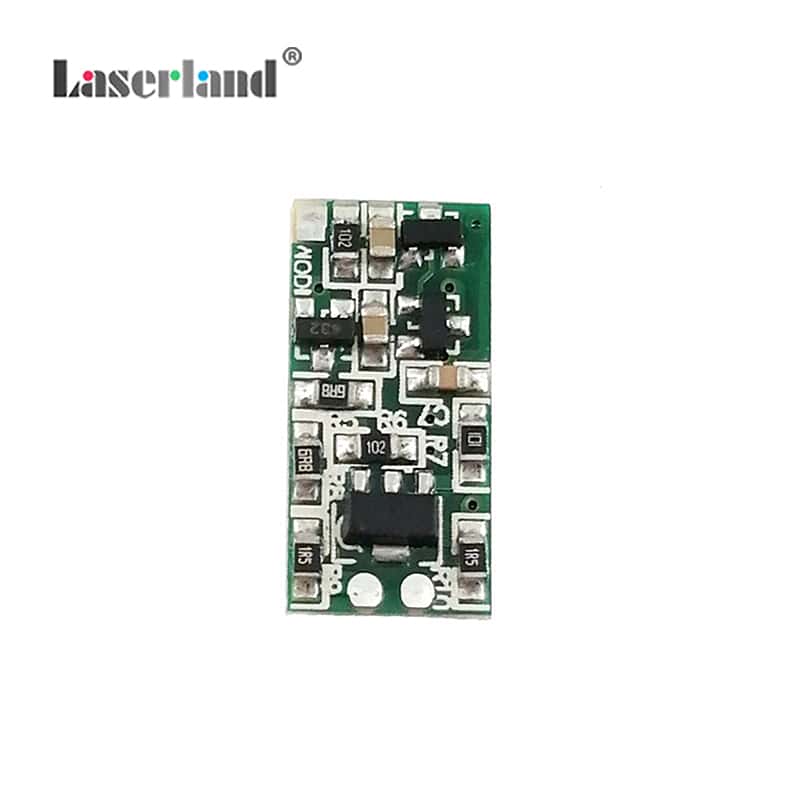

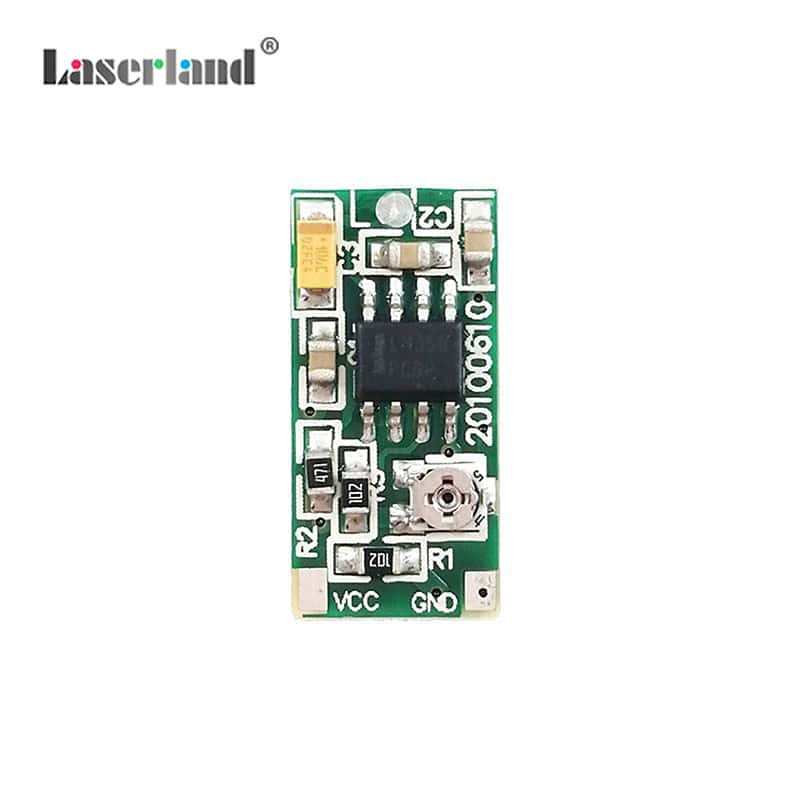

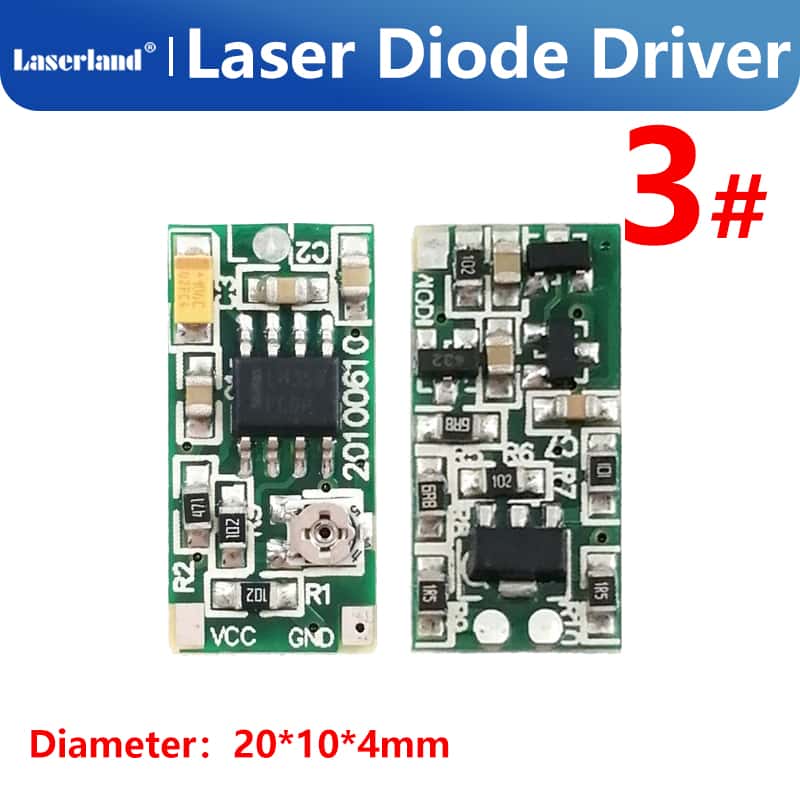

635nm 660nm 808nm 980nm 3.5-5V Red IR Infrared Laser Diode Driver Circuit Board Power Supply with TTL
Product Description
635nm 660nm 808nm 980nm 3.5-5V Red IR Infrared Laser Diode Driver Circuit Board Power Supply with TTL
1. Suitable for 635nm,650nm,660nm,780nm,808nm,980nm laser diode.
2. Input Voltage: 3.5-5V DC
3. Output Current:<450mA
2. Input Voltage: 3.5-5V DC
3. Output Current:<450mA
4. Output voltage: <3.3V DC
5. TTL: 0-15HZK
5. TTL: 0-15HZK

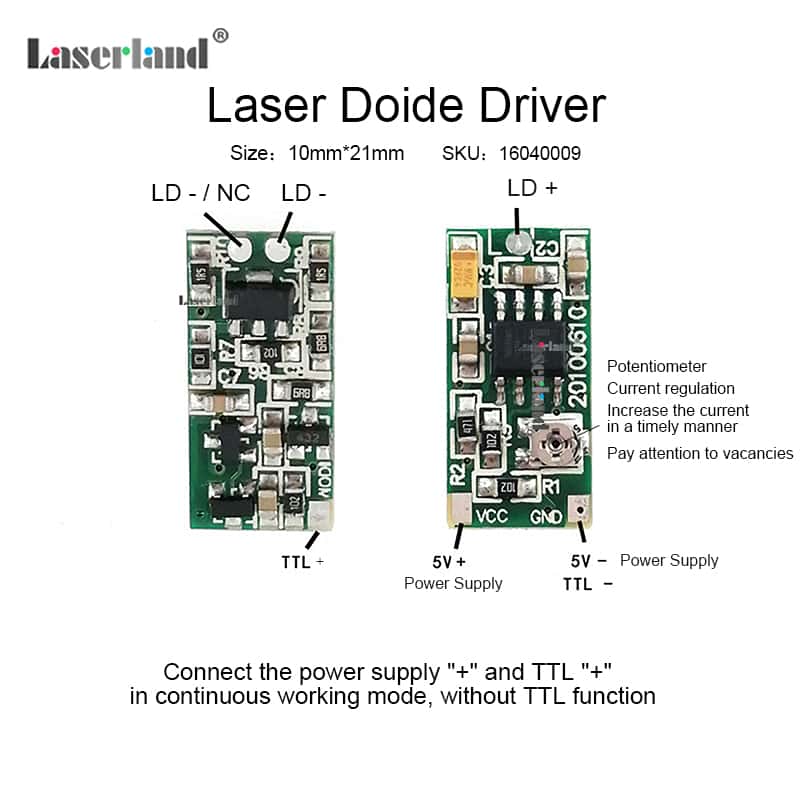

With potentiometer, the counterclockwise rotation current decreases and the clockwise rotation current increases
