Description

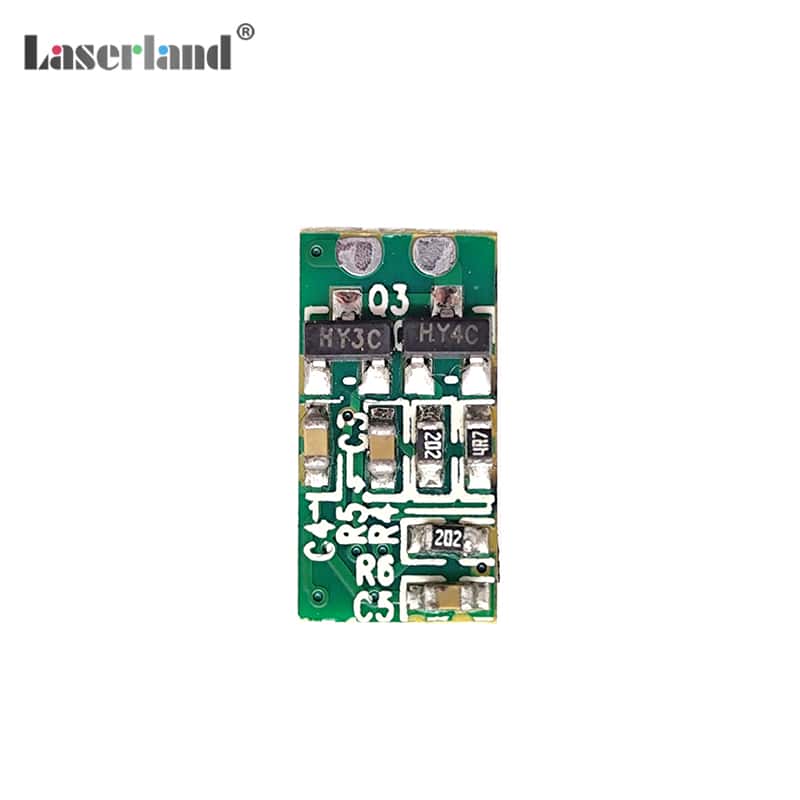

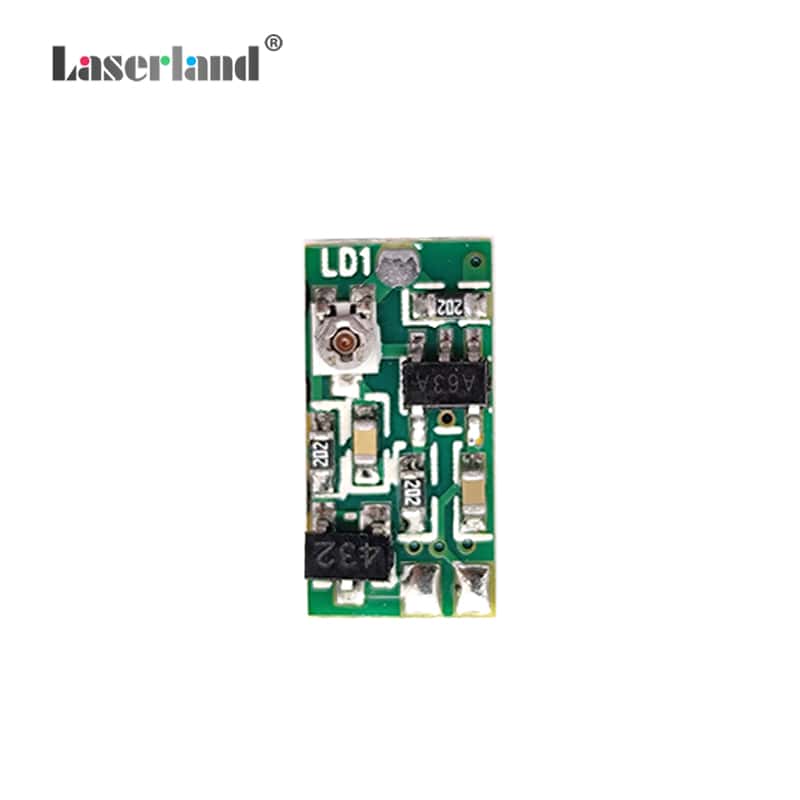

635nm 650nm 780nm 808nm Red Infrared 5V 5-20mW Laser Diode Drive Circuit Constant Power Drive APC
The circuit board is a precision component. After receiving the package, it supports 7 days without reason to return the product without opening the original package. After the original package is opened, no return is provided. After sale, please consider whether you have the ability to install it manually before purchasing. Do not purchase if you do not have the ability to install! Our company does not provide trial play/trial loan/trial service. Thank you for understanding!
Input Voltage: 3-5V
Output Voltage:2-3V
Output current :<110mA
Output Voltage:2-3V
Output current :<110mA
635nm 650nm 780nm 808nm Red Infrared 5V 5-20mW Laser Diode Drive Circuit Constant Power Drive APC
Application: RLD65MPT3 ,RLD65MPT4 T5 T7 650nm 5mw 10mw 20mw ,780nm 5mw 10mw 20mw,850nm 5mw 10mw 20mw
Application: RLD65MPT3 ,RLD65MPT4 T5 T7 650nm 5mw 10mw 20mw ,780nm 5mw 10mw 20mw,850nm 5mw 10mw 20mw

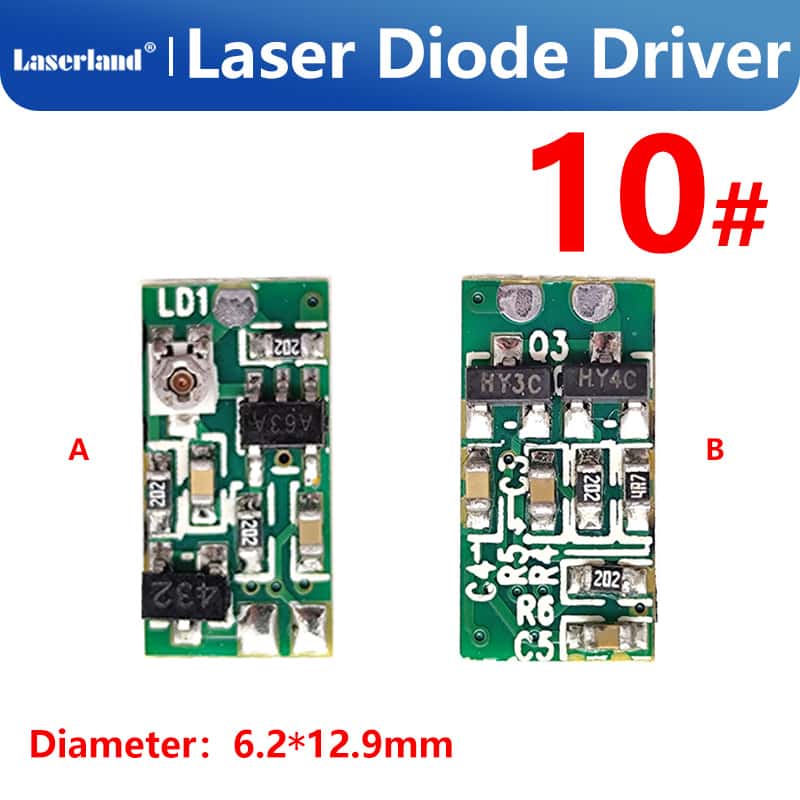

M type Laser Diode,size: 6*13mm
Note: When the input voltage is 1V, the driver board starts to work and micro-currents appears. When the applied voltage exceeds 5V, the thermal effect of the circuit board is more serious.
