405nm-450nm M9 P0.5 FL8.8mm Length 10mm Focal Collimating for Glass Lens Laser Diode
405nm-450nm M9 P0.5 FL8.8mm Length 10mm Focal Collimating for Glass Lens Laser Diode
$6.00
Similar at ~405nm
- 5pcs Laser Filter Blue Green Red 400nm-750nm blocked Infrared IR 700-1100nm pass through
- Laser Alignment Card Double-frequency Card IR Detection Display Card 900-1100nm
- Polarizing Beam Splitter Refractor Optical Elements Cube 400-700nm Visible Light Triangular Prism
- Glass IR Filter Lens High transmittance 520-700nm Laser HB600
Compatible accessories
- RGB White Laser Diode Module 520nm 450nm 638nm Red Green Blue Laser Drive Circuit 300mW TTL Light Combining
- Power Supply for Green Laser 520nm / 515nm Laser Diode Driver/ Circuit board
- Power Supply Driver for 635nm 638nm Red/Orange IR Infrared Laser Diode TTL 12V 1.2A 50mW-500mW
- Laser Diode Driver/ Circuit Board 5V 532nm Green 650nm Red 400mW IR Infrared Laser Power Supply
Related categories
Description

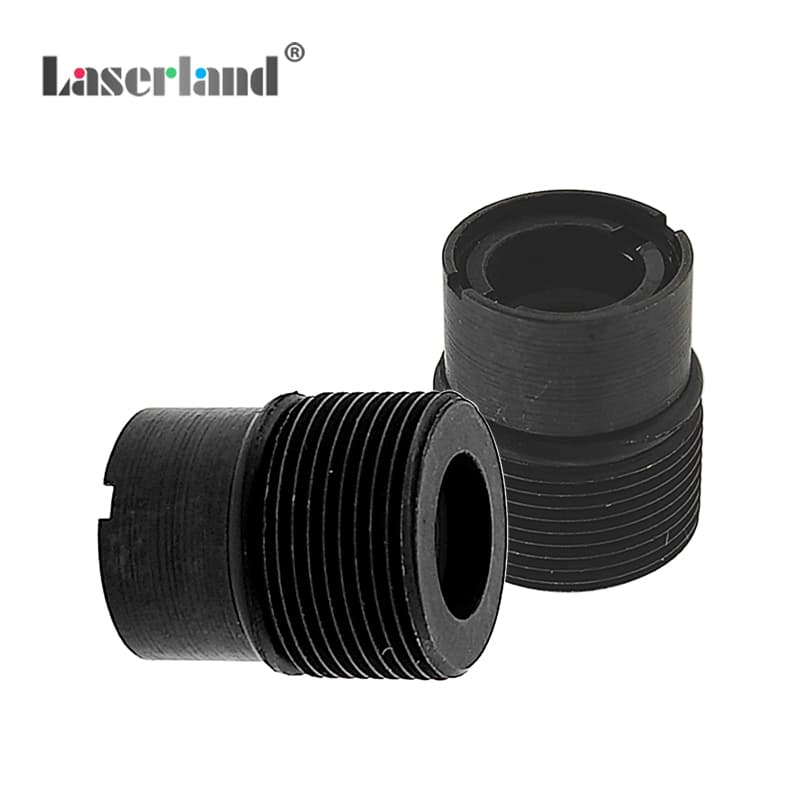

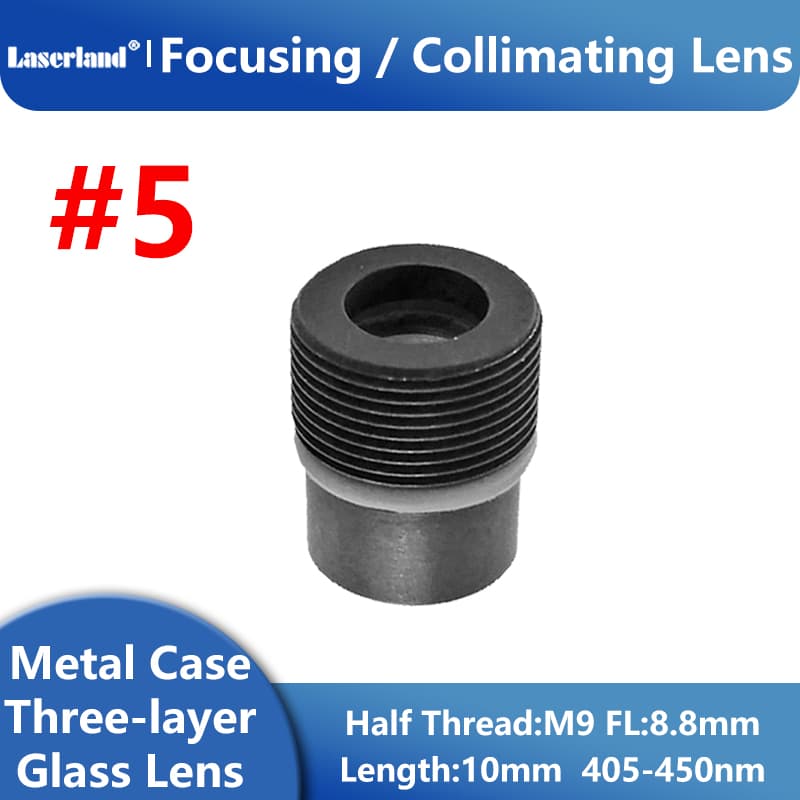

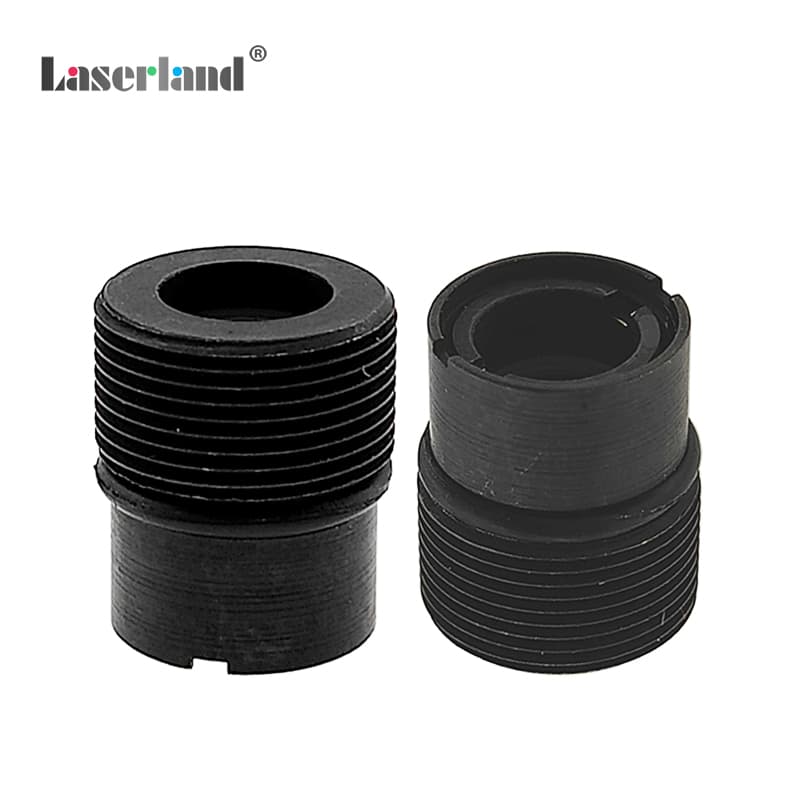

#5 405nm-450nm M9 P0.5 FL8.8mm Length 10mm Focal Collimating for Glass Lens Laser Diode
Name:laser lens
Mode:16051005
Size:Half Thread M9x0.5-10.5
Effective Focal Length:8.8mm
Distance from laser diode to lens:5.8mm
Effective Clear Aperture:R17.0/R26.5
Center Thickness of Lens:2.66±0.02
Lens Edge Thickness:1.636
Operating wavelength:405nm、445nm、450nm
Additional information
| Focal Length | |
|---|---|
| Diameter | |
| Optic Type |
