Description

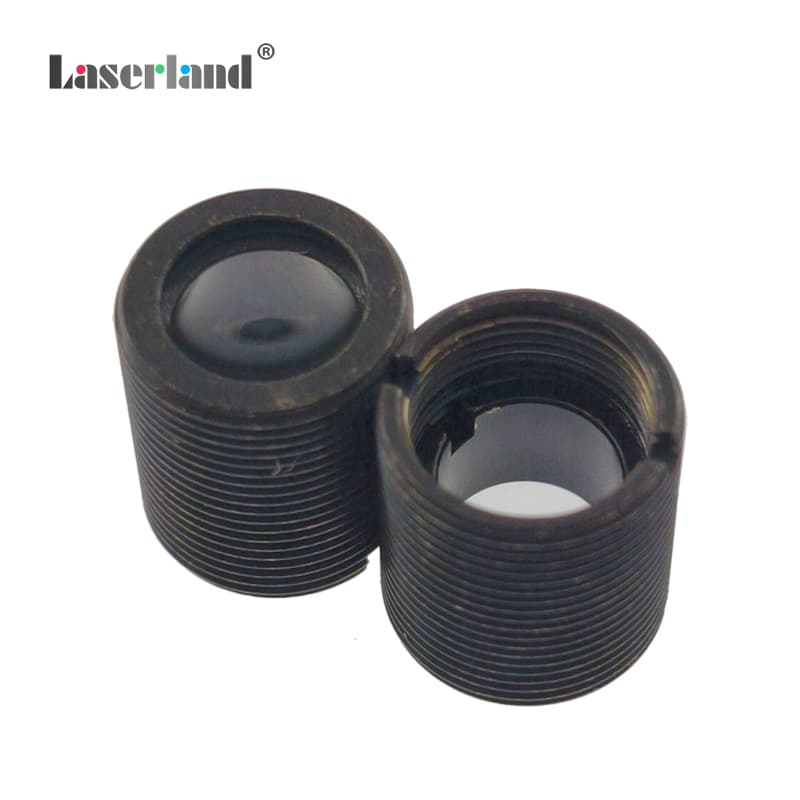

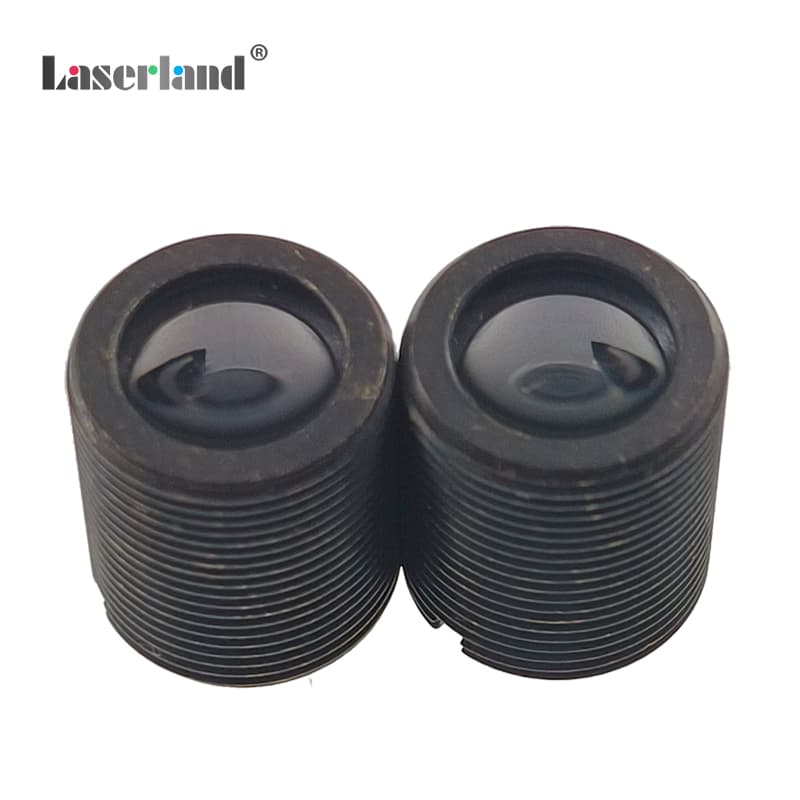

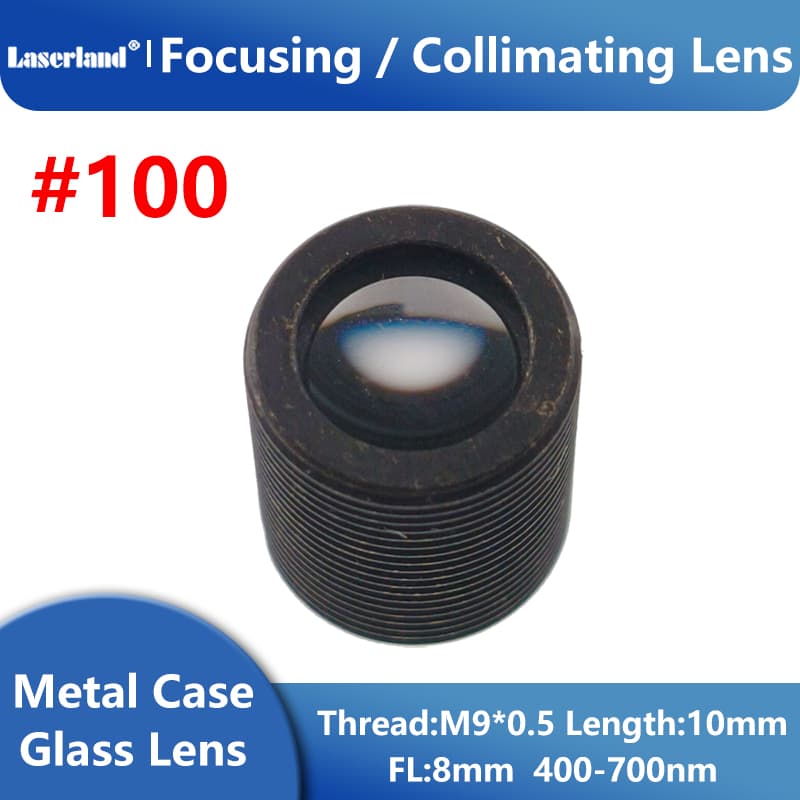

#100 400nm-700nm M9 P0.5 FL8mm Length 10mm Focal Collimating for RGB Laser
FL: 8mm
Frame: M9*0.5
thicknes=2.3mm
NA=0.2
CA=6.5
BFL=5.67122
Divergence: 8.8mm (G2 is 10.02mm
Material: glass
Wavelength:400-700nm
Frame material: Metal
