3350 520nm 100mW Green Dot Laser Module Long Duty 12VDC TTL
3350 520nm 100mW Green Dot Laser Module Long Duty 12VDC TTL
$34.98
44 in stock
44 in stock
Similar at ~520nm
- 1448 520nm 80mW 5V Line Generator Green Laser Diode Module
- 16mm 30mW 5V DOE 520nm Green 5 Rings Concentric Circles Grating Laser Module Diffraction for Cake Location
- 70*43*90mm 520nm 3W 12V G3000
- 1450 515nm 80mW 5V 50*50 Green Light Source DOE Grid Matrix Grating Laser Module
Compatible accessories
- 2pcs IR Infrared Laser Filter Block Lens for 532nm Diode Green Laser High Transmittance
- Laser Alignment Card Double-frequency Card IR Detection Display Card 900-1100nm
- Polarizing Beam Splitter Refractor Optical Elements Cube 400-700nm Visible Light Triangular Prism
- Glass IR Filter Lens High transmittance 520-700nm Laser HB600
Related categories
- 520nm Laser Module (43)
- Laser Modules (183)
- DOE Grating Laser Module (13)
- 405nm Laser Module (12)
- 450nm Laser Module (21)
- 488nm Laser Module (3)
- 532nm Laser Module (21)
- 638nm Laser Module (17)
- 660nm Laser Module (52)
- 780nm Laser Module (5)
- 808nm Laser Module (8)
- 830nm Laser Module (1)
Description
3350 520nm 100mW Green Dot Laser Module Long Duty 12VDC TTL
Wavelength: 520nm
Output: 100mw
Working Current: <300mA
Divergence : 0.1-2mrad
Working voltage: DC 12V
Working temperature: +10~+35 centigrade
Dot diameter: <25mm at 10 meters
Duty cycle: 30 minutes on, 5 minutes off
Size: 30mm×30mmX50mm

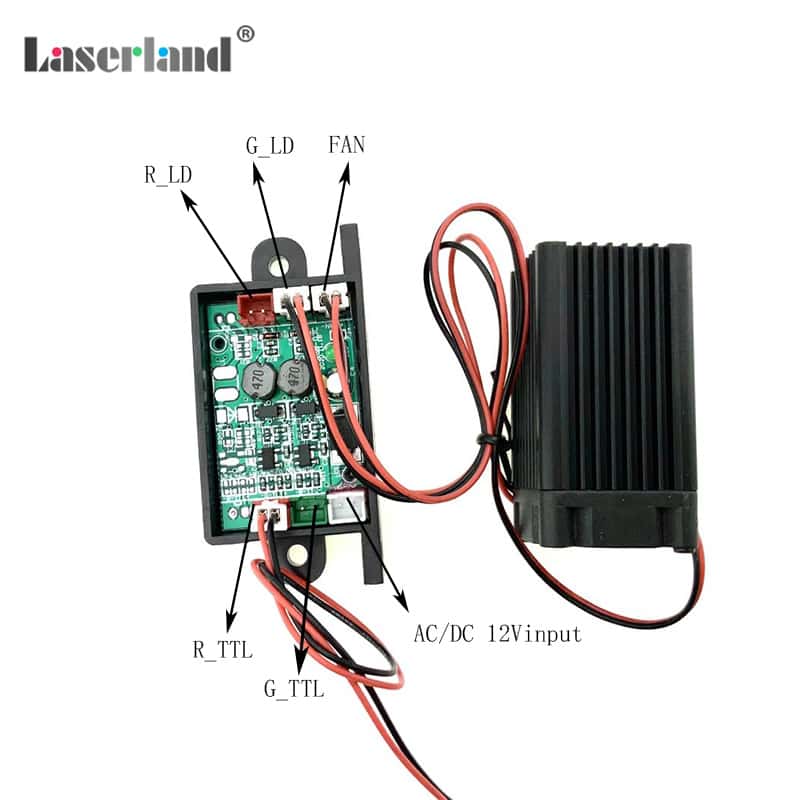

The wire to connect power input supply and TTL may not included ( if you do not know how to add the power supply, please feel free to contact me)
Note:
only for professionals
The modules are tested and the output power are measured by laser power meter before sending out.
Please don’t compare the power of this one with a none-measured laser.
If you doubt the output, please have the laser you recieved checked by laser power meter.
If there is any problem, please feel free to contact us. We will solve the problem asap.
for avoiding laser burnt out, we have default set the output on 90mw, there is a resistor on the driver of the lasre, you can adjust the input current to increase the output of it. but 120mw max is recommend. if the input current it too much, and the output can reach more than 120mw, but the laser may get soonly burnt out or the total working life must be reduced.
