- Vertically mounts breadboards at a 90° angle;
- Integrated structure with excellent rigidity;
- Parallelism and perpendicularity deviation within 0.08mm;
- Includes 8 M6 socket head cap screws for installation and connection;
- Sold in pairs;

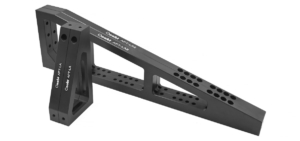

The vertical bracket is designed for vertically mounting aluminum breadboards onto optical platforms. This rigid bracket is available in two heights: 6 inches and 18 inches. It features slotted mounting points and can also be used for directly connecting installed optical-mechanical equipment or as a support for larger structures.
| Model | APT-LA | APT-LA2 |
| Specification | 152.4*76.2*19.2mm | 457.2*127.0*18.5mm |
| Thread Type | 2 positions of M6, 2 positions of M6 (countersunk holes);M6 slotted holes: 1 position of 32.3mm, 1 position of 70.5mm | 12 positions of M6, 27 positions of M6 (through holes);Through holes: 27 positions of Ø7.1mm |
| Weight | 222.1g * 2 | 893.3g * 2 |
| Material | 7075 Aluminum Alloy | 7075 Aluminum Alloy |
(1) The vertical bracket is designed to vertically mount aluminum breadboards on optical platforms. Available in 6-inch and 18-inch heights, this rigid bracket is equipped with M6 threaded holes and M6 through-hole slots evenly spaced along the edges, enhancing installation flexibility. It can also be used to directly connect installed optical-mechanical equipment or serve as a support for larger structures.
(2) Suitable for 90° mounting of small optical breadboards and large optical breadboards (the Ø10.7mm through hole facilitates access for a socket wrench to fasten screws).

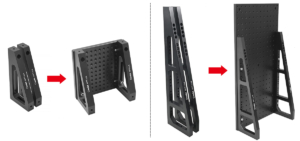

Assembly

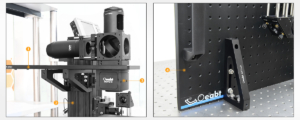

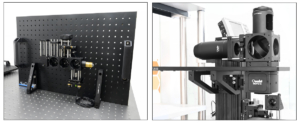

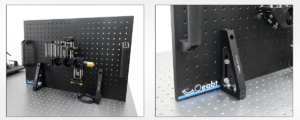

Application Examples
