G7 Aspheric Glass Focal Lens D=7mm FL=8mm for RGB laser 400nm-700nm
G7 Aspheric Glass Focal Lens D=7mm FL=8mm for RGB laser 400nm-700nm
$5.50
Similar at ~400nm
- 5pcs Laser Filter Blue Green Red 400nm-750nm blocked Infrared IR 700-1100nm pass through
- Laser Alignment Card Double-frequency Card IR Detection Display Card 900-1100nm
- Polarizing Beam Splitter Refractor Optical Elements Cube 400-700nm Visible Light Triangular Prism
- Glass IR Filter Lens High transmittance 520-700nm Laser HB600
Compatible accessories
- RGB White Laser Diode Module 520nm 450nm 638nm Red Green Blue Laser Drive Circuit 300mW TTL Light Combining
- Power Supply for Green Laser 520nm / 515nm Laser Diode Driver/ Circuit board
- Power Supply Driver for 635nm 638nm Red/Orange IR Infrared Laser Diode TTL 12V 1.2A 50mW-500mW
- Laser Diode Driver/ Circuit Board 5V 532nm Green 650nm Red 400mW IR Infrared Laser Power Supply
Related categories
Description

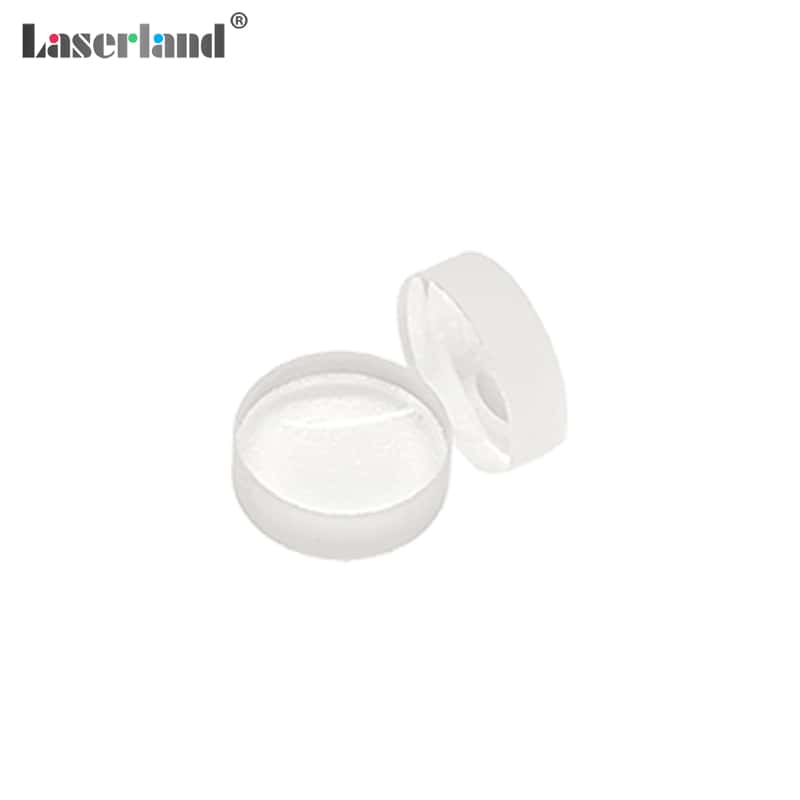

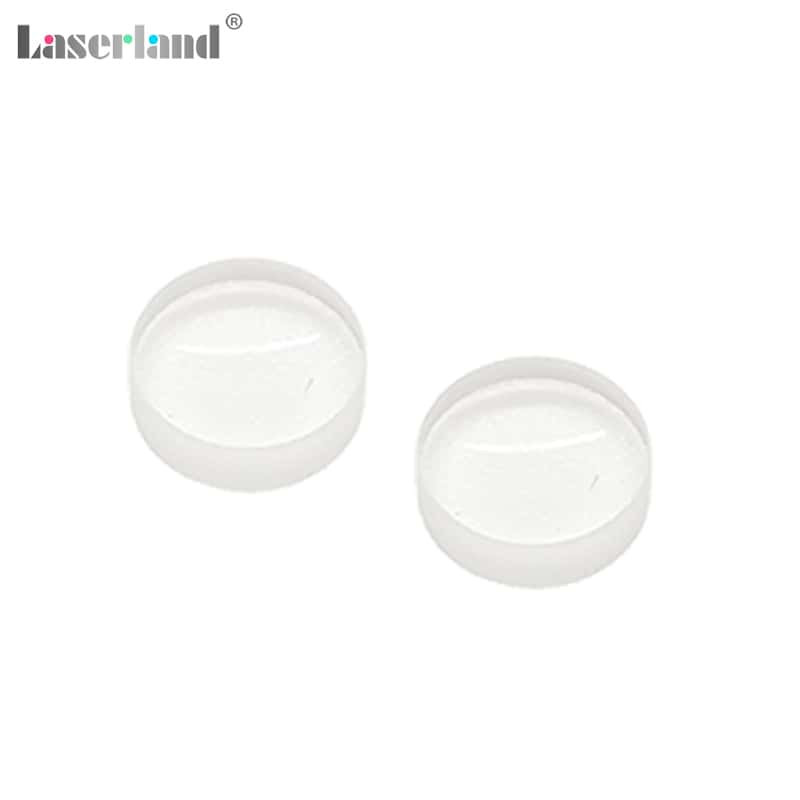

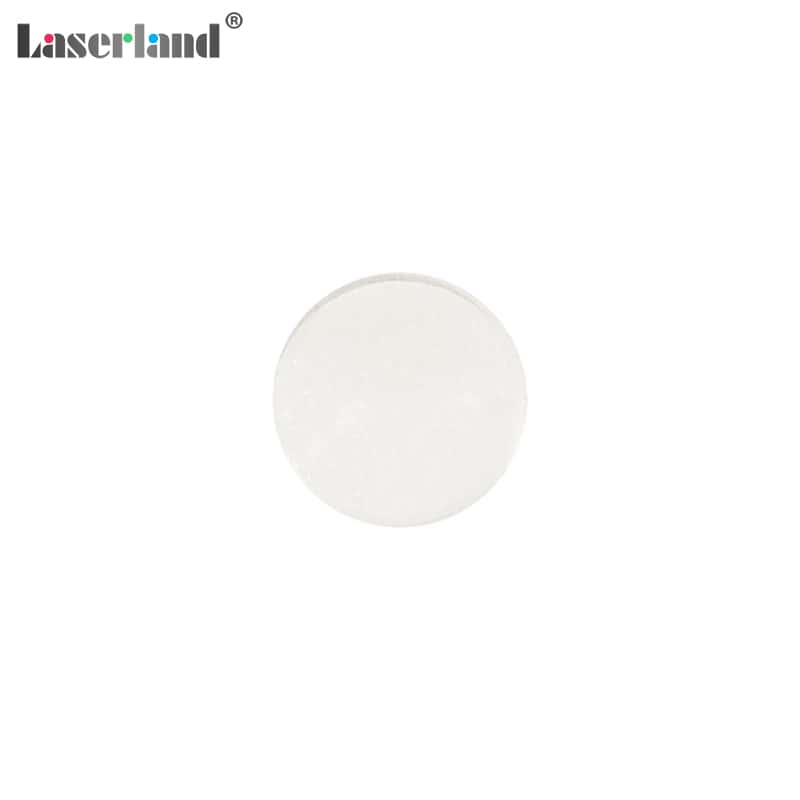

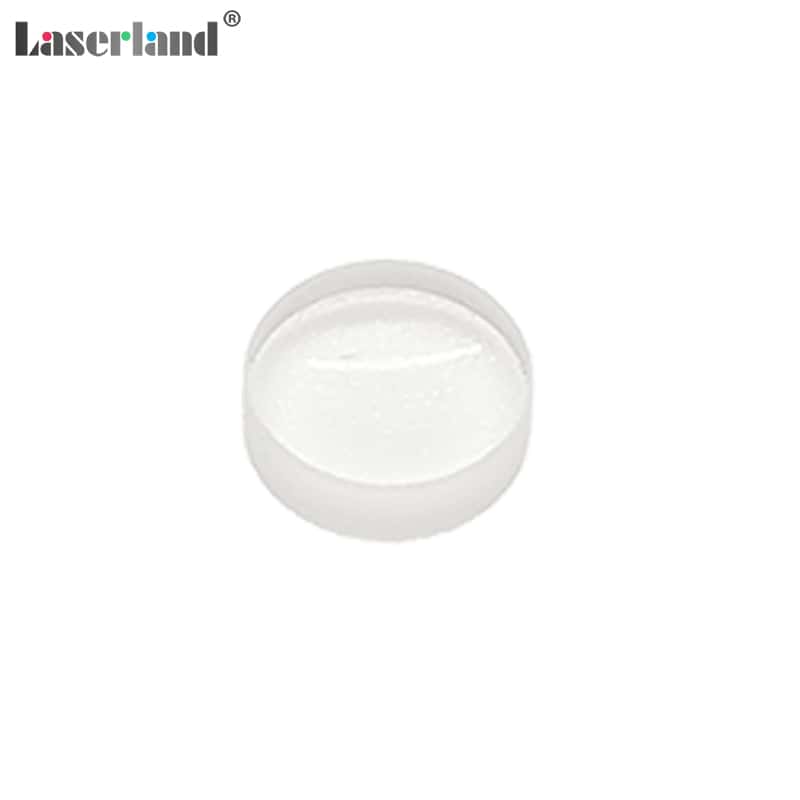

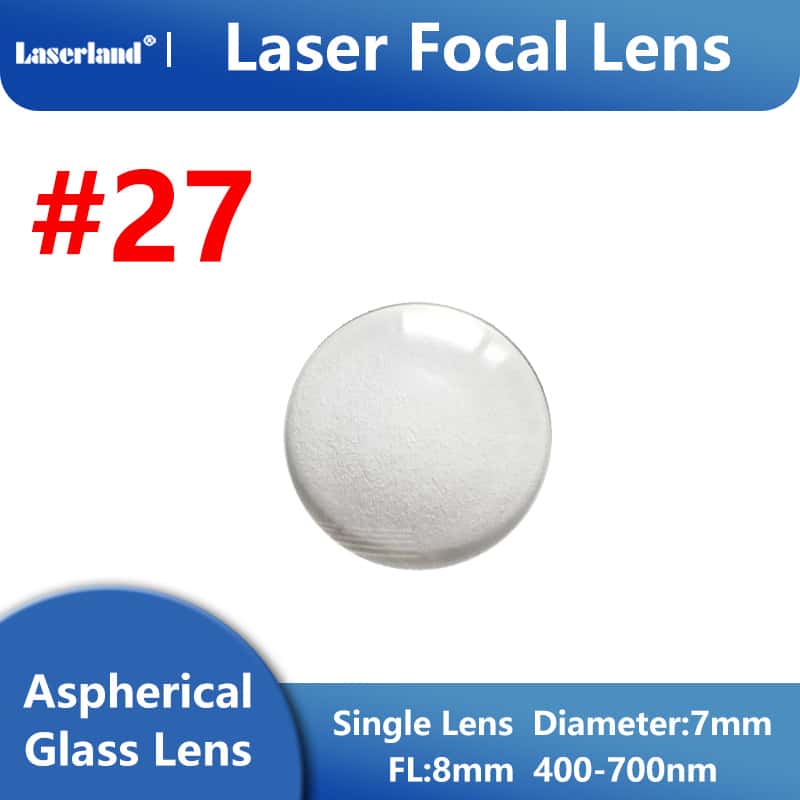

#27 G7 Aspheric Glass Focal Lens D=7mm FL=8mm for RGB laser 400nm-700nm
Diameter: 7mm
Focal Length: 8mm
Thicknes=2.3mm
NA=0.2
CA=6.5
BFL=5.67122
Divergence: Coated for all RGB lasers: ASP 400nm-700nm
(G2 is 10.02mm）
Material: k9 glass
Additional information
| Focal Length | |
|---|---|
| Diameter | |
| Optic Type |
