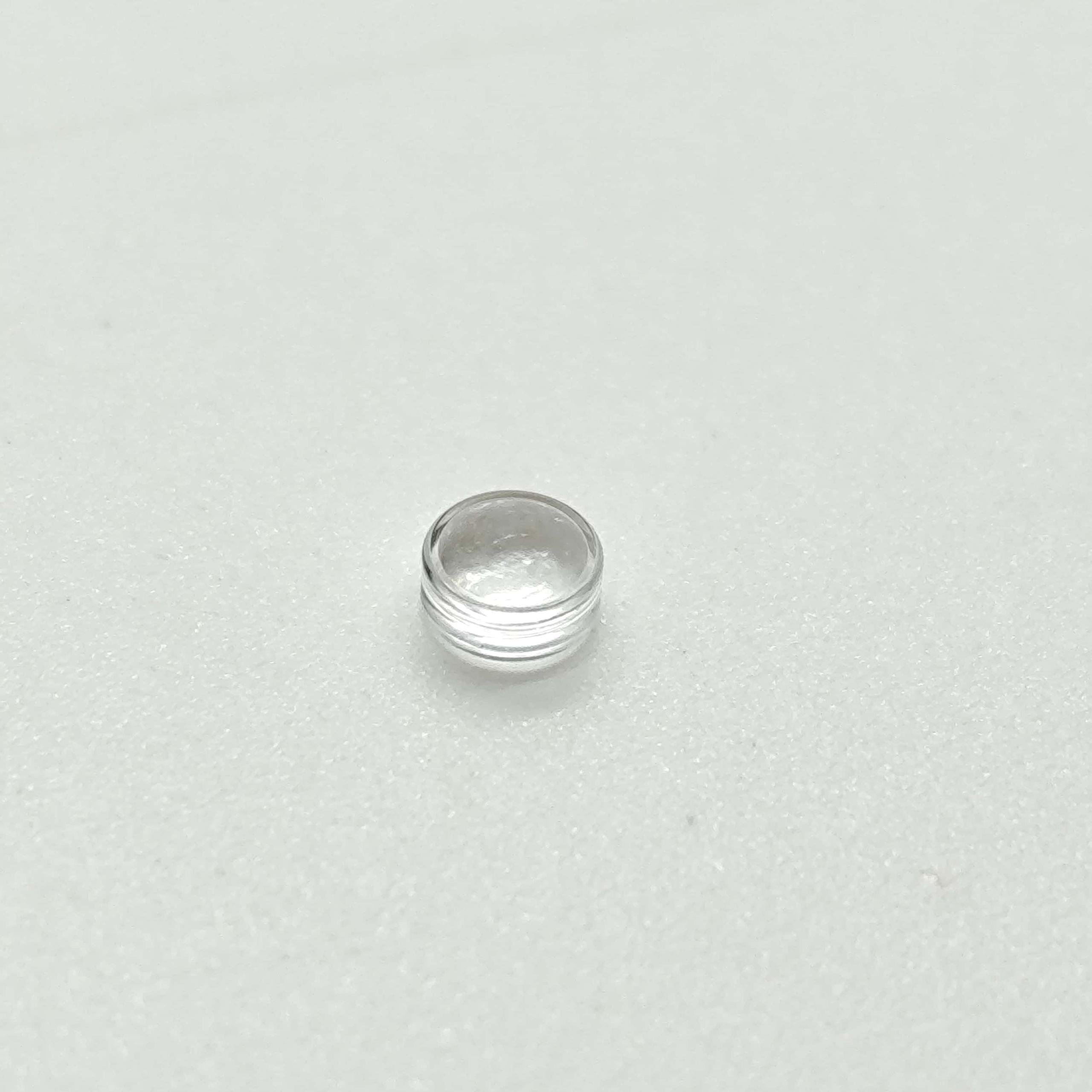

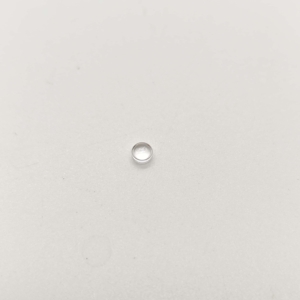

3mm OD Glass Aspheric Coating Focusing Lens J015
3mm OD Glass Aspheric Coating Focusing Lens J015
$5.00
Similar products
- Heat-resistant Focusing Lens Focal Lens Plastic Lens 200℃ for 200-500mW Laser
- Heat-resistant Collimating Lens Focusing Lens Plastic Lens 200℃ for <500mW Laser
- Laser Beam Homogenizer / Optical Diffuser Lens Divergence Angle 9° for Red Green Laser
- Laser Alignment Card Double-frequency Card IR Detection Display Card 900-1100nm
Compatible accessories
- 360° Multi-axis Industrial Optical Bracket/Fixer/Holder DIY Laser Base
- Light Sensor Switch Automatic On/Off Light LED Control Switch Photosensitive Sensor Circuit Board
- Laser Module Light Holder Laser Locator Part Tools for CO2 UV Fiber Marking Machine
- RGB White Laser Diode Module 520nm 450nm 638nm Red Green Blue Laser Drive Circuit 300mW TTL Light Combining
Related categories
Description

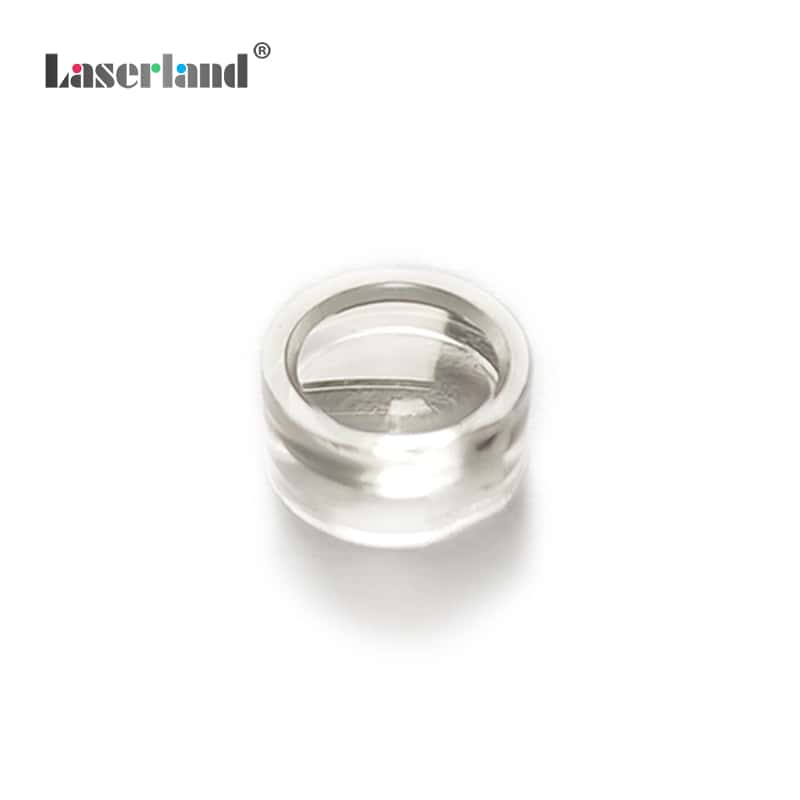

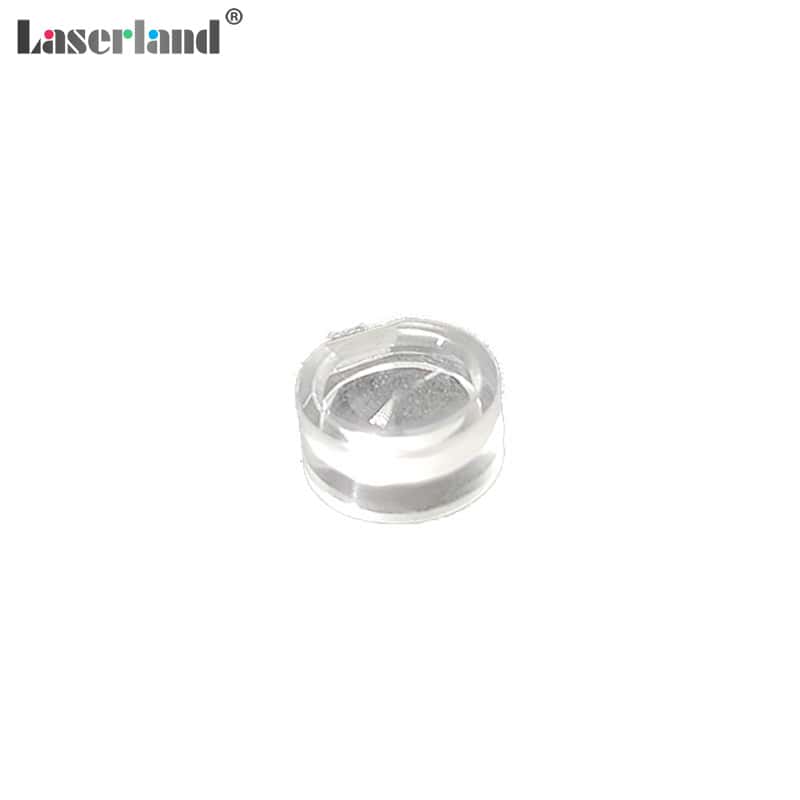

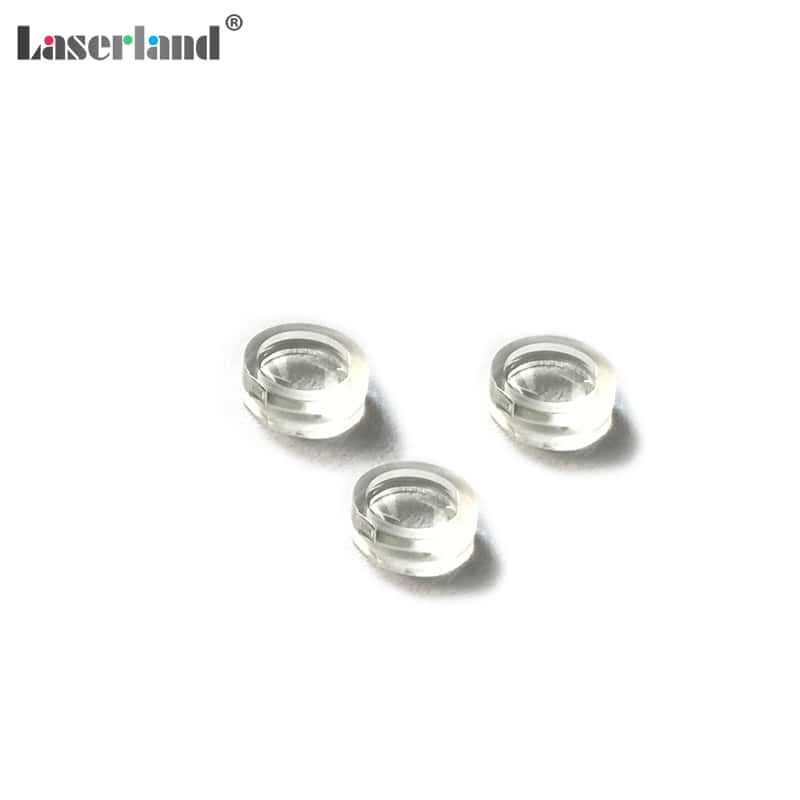

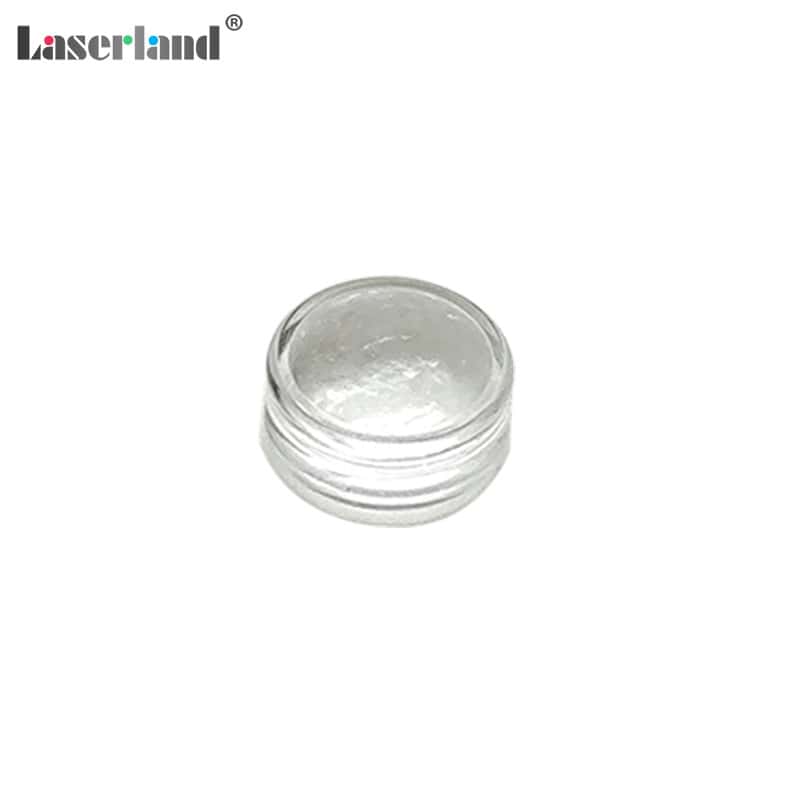

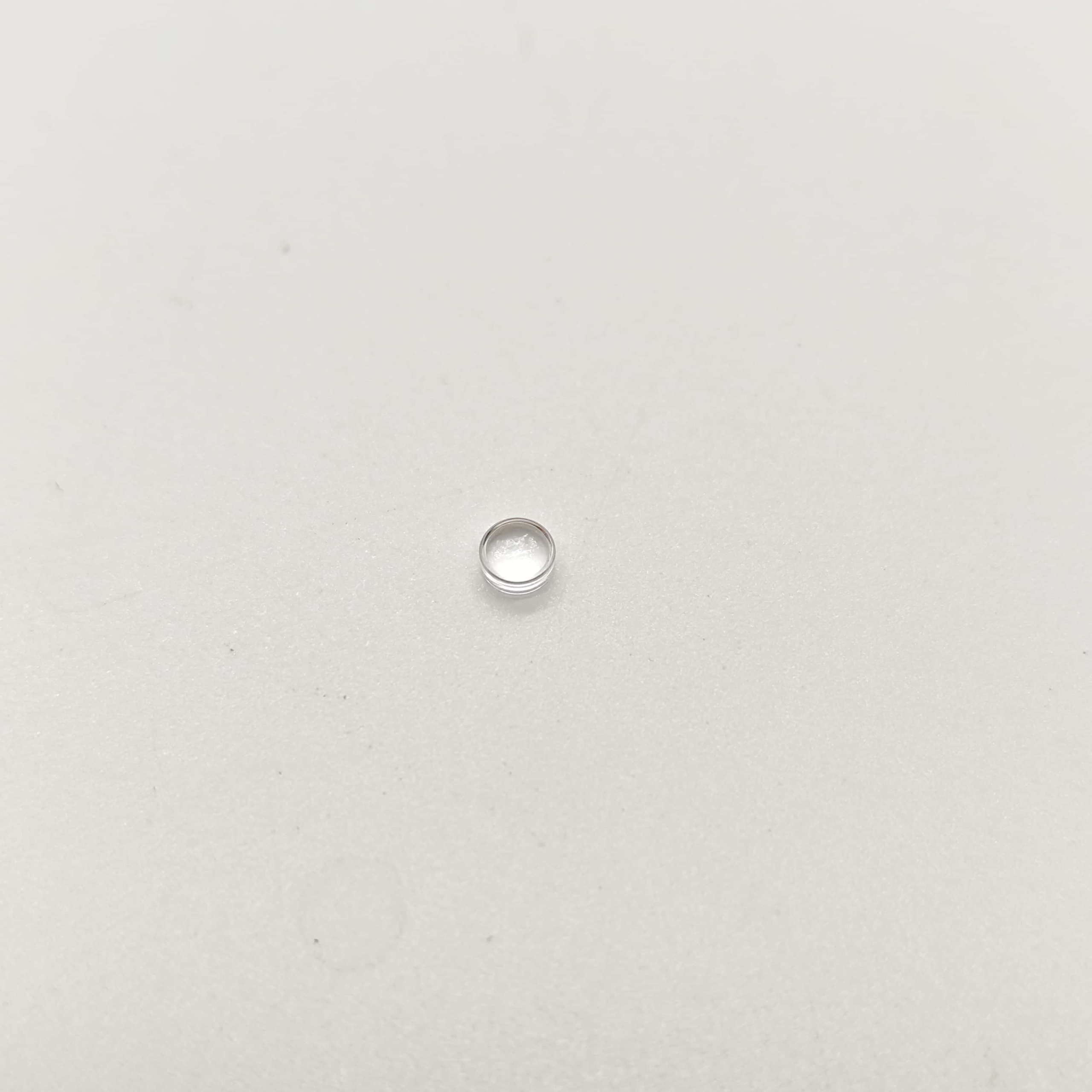

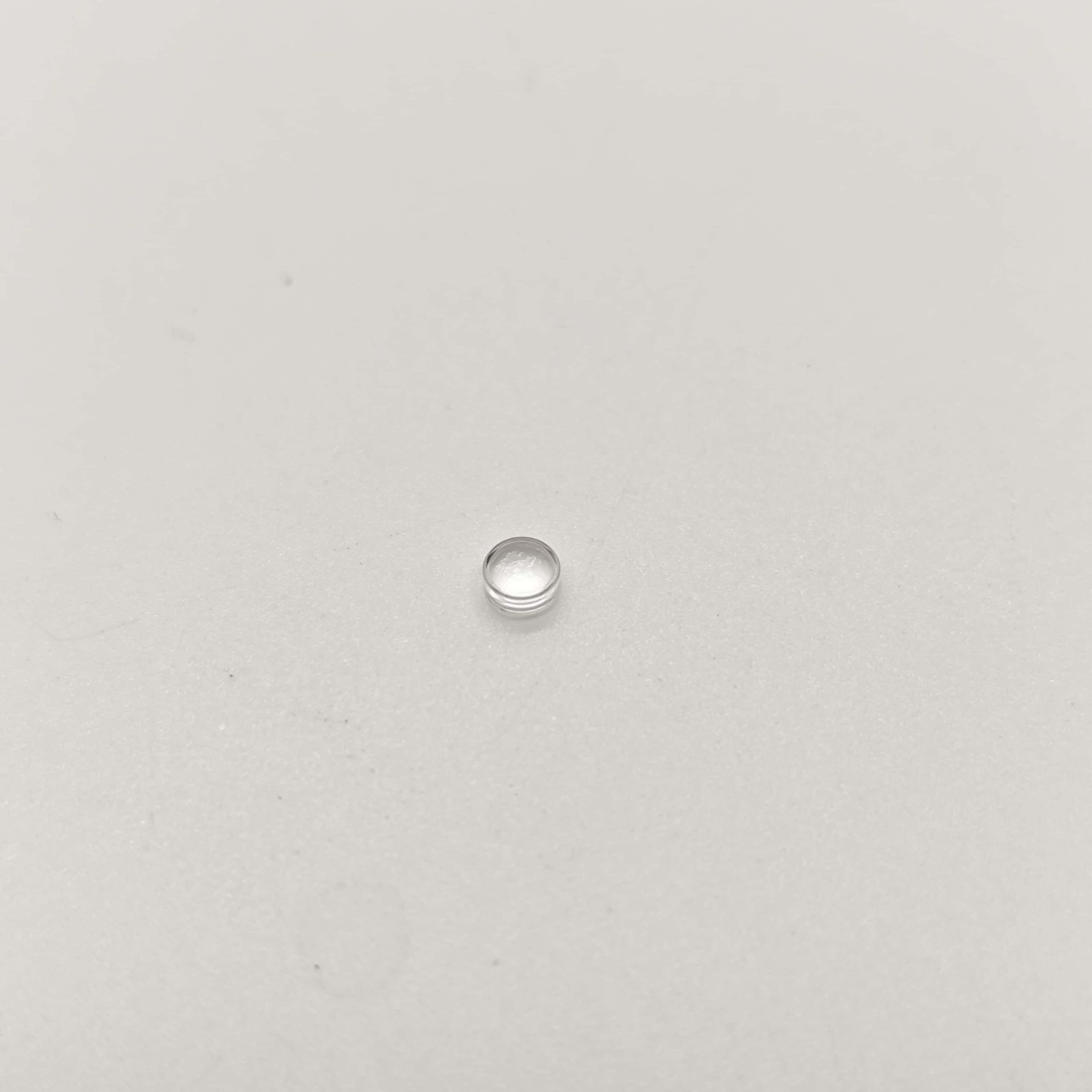

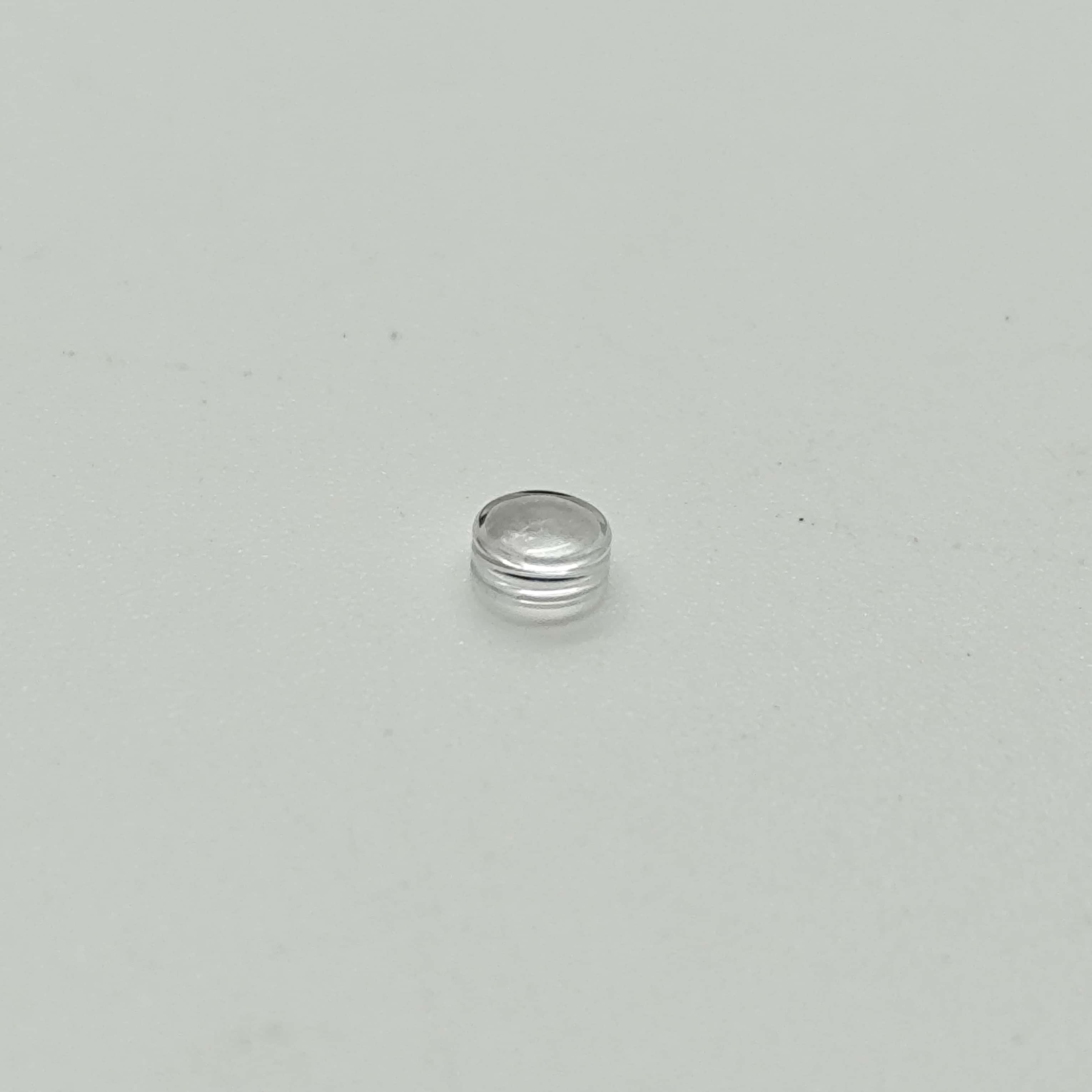

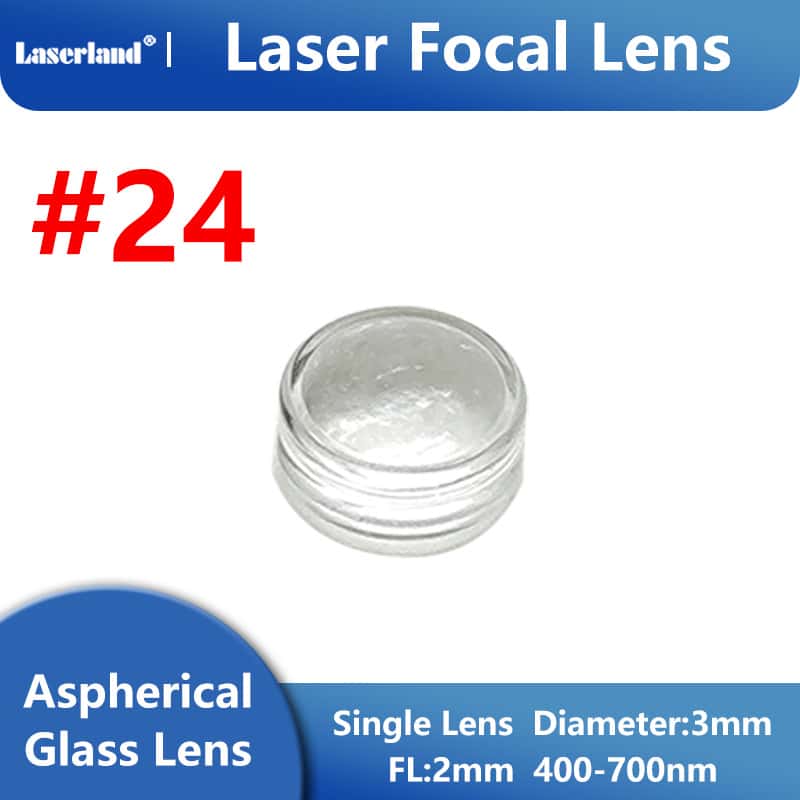

#24 3mm OD Glass Aspheric Coating Focusing Lens J015
(1)Name: 3mm OD Glass Aspheric Coating Focusing Lens J015#24
(2)NA: 0.33
(3)WD: 2.99mm
(4)OD: 3.0（0 / -0.02）mm
(5)CT: 1.5（+0.02）mm
(6)EFL: 2mm/6mm
(7)RMS: <0.05λ
(8)Clear aperture: 2.50mm
(9)Optical glass material: D-ZK3
(10)Design wavelength: 635nm
(11)Laser window thickness: 0.25mm
(12)Laser window material: BK7
(13)Coating: We provide standard AR coating,and the specification is “Rmax <0.5％@design wavelength+20nmn”.We are happy to provide any anti-reflection coating according to customer requirements.
