Description
Product Description
- Compatible with Ø12mm or 12.7mm rod series.
- Position control via M4.5*0.2 adjusters.
- Fine adjustment and positioning using a 2mm hex wrench.
- Multiple drive installation methods: center, side-mounted, and longitudinal.
- Knob-lockable collar design; set screws can be replaced for position limiting in confined spaces.
Adjustable positioners can be used individually or in combination for quick positioning and adjustment. The simple and modular design is ideal for space-constrained systems.
| Adjuster Type | M4.5*0.2 |
| Load Capacity | 3.3lbs (1.5kg) |
| Compatible Installation | Compatible with Ø12mm or 12.7mm rods |
| Material | 7075 aluminum alloy |
| Model | 12AP-C | 12AP-L | 12AP-S |
| Dimensions | 47.6*22.0*15.2mm | 42.0*20.1*27.5mm | 45.2*24.1*14.6mm |
| Drive Stroke | 23.6mm | 10mm | 28.4mm |

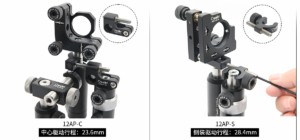

| Installation Drive | Center drive | Longitudinal drive | Side-mounted drive |
| Weight | 14.4g | 14.5g | 18.4g |

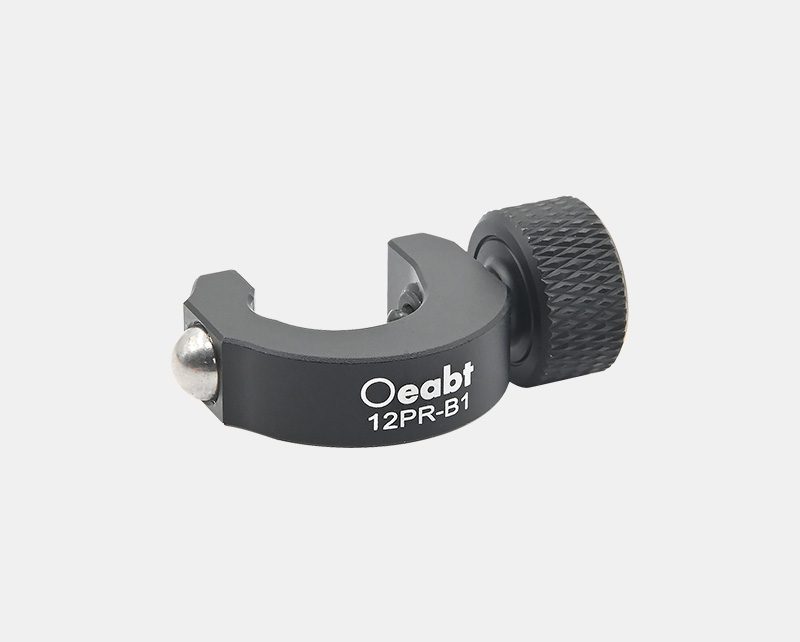

| Model | 12PR-B1 Fixed Stop |
| Dimensions | 35.8*20.1*14.6mm |
| Compatible Installation | Compatible with Ø12mm or 12.7mm rods |
| Weight | 8.9g |
| Model | 12PR-B2 Contact Block |
| Dimensions | 42.4*20.1*11.6mm |
| Compatible Installation | Compatible with Ø12mm or 12.7mm rods |
| Weight | 13.0g |
| Model | 12PR-F |
| Dimensions | 74.5*20.1*14.6mm |
| Compatible Installation | Compatible with Ø12mm or 12.7mm rods |
| Thread Type | 5x M6 through holes |
| Weight | 20.4g |
Technical Description

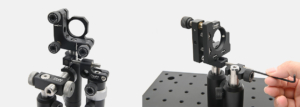

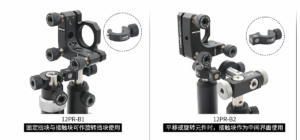

The combination of adjusters and fixed or spring-loaded stops enables fine adjustment for precise manipulation of mounts. They are also compact enough to be added to finished setups without redesigning the optical layout, unlike large translation stages or mounts.

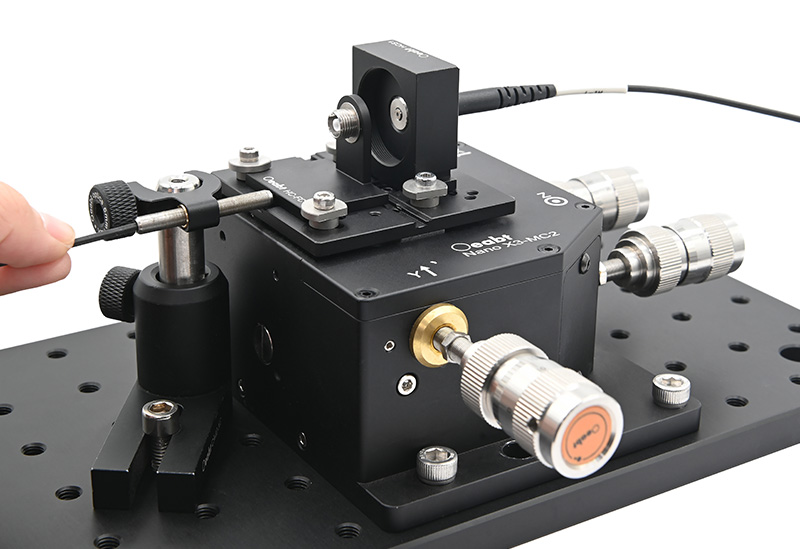

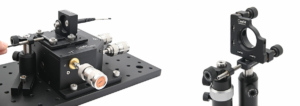

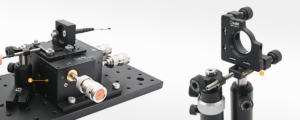

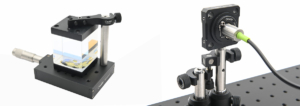

Applied to adjust the collimation mount at the front end of the optical fiber on the Nano translation stage for collimating light output; side-mounted positioners are used with centering plates to move mirror mounts.

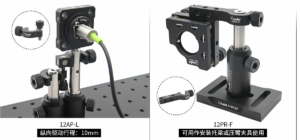

Longitudinal adjustable positioners are used in combination with contact blocks to adjust the height of Ø1/2-inch rods. Component fixtures can be used to install prisms, cylindrical components, and other devices.
