XYZ Axis Stage Preassembled Kit 1
XYZ Axis Stage Preassembled Kit 1
Price range: $1,129.80 through $1,816.00
Description
Product Description

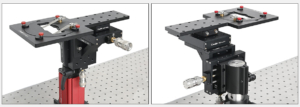

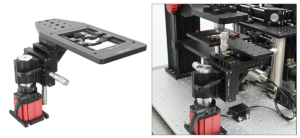

- Preassembled XYZ stage with selectable overall height ranges.
- Three-axis independent adjustment; maximum travel: 25 mm (X) × 25 mm (Y) × 25 mm (Z).
- Compatible with TSX-LE-B stage (travel ±12.5 mm, division 0.01 mm) or TSX-LE-C stage (coarse travel ±12.5 mm, fine travel 300 μm, resolution 1 μm).

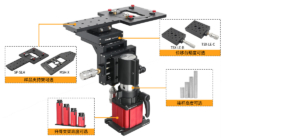

- Sample holder options:

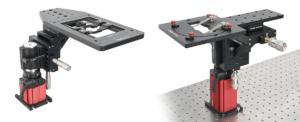

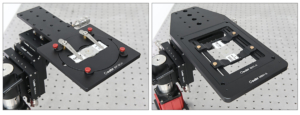

- SP-SLH: 26.0×76.2 mm standard slide, Ø35 mm Petri dish.
- MSHX + SHXA: slides 25–26.5 mm wide, Petri dishes Ø30–60 mm, plus extra X-axis travel.
- Sold as a complete kit; platform and breadboard not included.
Stages are delivered preassembled. Users can choose models with different height ranges and precision grades based on experimental needs.
表格
| Axis System & Travel | XYZ three axes, max. ±12.5 mm per axis | |
| Stage | TSX-LE-B | 25 mm travel, 0.5 mm/rev, division 0.01 mm |
| TSX-LE-C | Coarse: 16 mm travel, 0.5 mm/rev, division 0.01 mm; Fine: 300 μm travel, 0.05 mm/rev, resolution 1 μm | |
| Sample Holder | SP-SLH | Slide: 26.0×76.2 mm; Petri dish: Ø35 mm |
| MSHX + SHXA | Slide: 25–26.5 mm wide; Petri dish: Ø30–60 mm; extra X travel: 50.2 mm | |
| Load Capacity | 2 kg |
表格
| Configuration | Overall Height Range | Sample Holder Type | Model |
| TSX-LE-B Coarse(For cells Ø50–100 μm, DOF >10 μm) | 227–267 mm | SP-SLH | SP227-XYZ-LEB* |
| MSH-X + SHX-A | MSH227-XYZ-LEB* | ||
| 277–367 mm | SP-SLH | SP277-XYZ-LEB | |
| MSH-X + SHX-A | MSH277-XYZ-LEB | ||
| 327–467 mm | SP-SLH | SP327-XYZ-LEB | |
| MSH-X + SHX-A | MSH327-XYZ-LEB | ||
| TSX-LE-C Coarse+Fine(For cells Ø10–100 μm, DOF >1 μm) | 227–267 mm | SP-SLH | SP227-XYZ-LEC |
| MSH-X + SHX-A | MSH227-XYZ-LEC | ||
| 277–367 mm | SP-SLH | SP277-XYZ-LEC | |
| MSH-X + SHX-A | MSH277-XYZ-LEC | ||
| 327–467 mm | SP-SLH | SP327-XYZ-LEB | |
| MSH-X + SHX-A | MSH327-XYZ-LEB |
*Note: SP227-XYZ-LEB and MSH227-XYZ-LEB only allow 12.5 mm upward Z travel at minimum overall height.
Technical Description

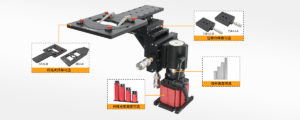

- This product is sold as a complete kit including stages, sample holders, 66 mm lift brackets, Ø1.5 inch posts, and right-angle brackets. Optical table or breadboard for installation is not included. Please confirm required total height based on microscope type and working distance before ordering.

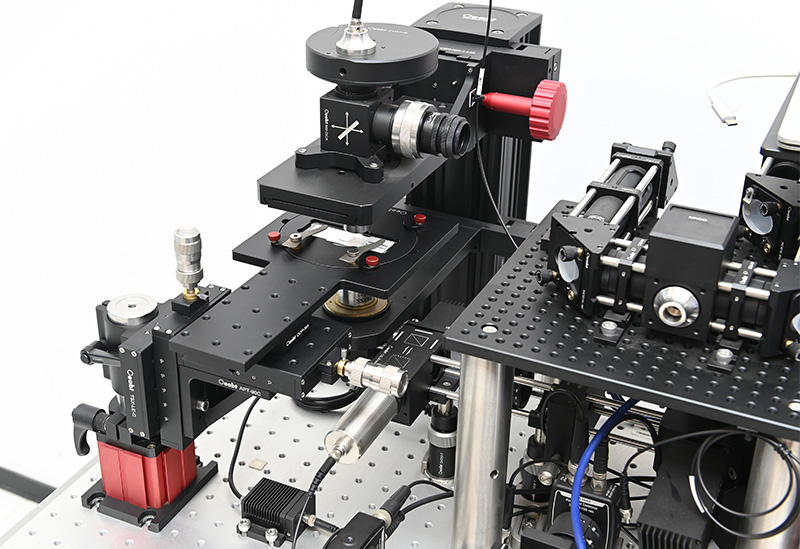

- Multiple overall height ranges are available to suit working distances of different microscopes (upright/inverted) or custom optical paths.
- For routine cell observation (cells Ø50–100 μm, DOF >10 μm): choose TSX-LE-B for high cost-performance. For fine cell structures requiring high-precision focusing (cells Ø10–100 μm, DOF >1 μm): choose TSX-LE-C.
- For standard slides only: select SP-SLH sample holder. For various Petri dishes or large-range scanning: select MSH-X + SHX-A sample holder.
Assembly
Application Examples
Engineering Drawings
Additional information
| Model | SP227-XYZ-LEB, SP277-XYZ-LEB, SP327-XYZ-LEB, MSH227-XYZ-LEB, MSH277-XYZ-LEB, MSH327-XYZ-LEB, SP227-XYZ-LEC, SP277-XYZ-LEC, SP327-XYZ-LEC, MSH227-XYZ-LEC, MSH277-XYZ-LEC, MSH327-XYZ-LEC |
|---|
